Открытый узел

27 Engine 6068HL484-DD21751

27 Engine 6068HL484-DD21751

27 Engine 6068HL484-DD21751

27 Engine 6068HL484-DD21751

27 Engine 6068HL484-DD21751

27 Engine 6068HL484-DD21751

27 Engine 6068HL484-DD21751

27 Engine 6068HL484-DD21751

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

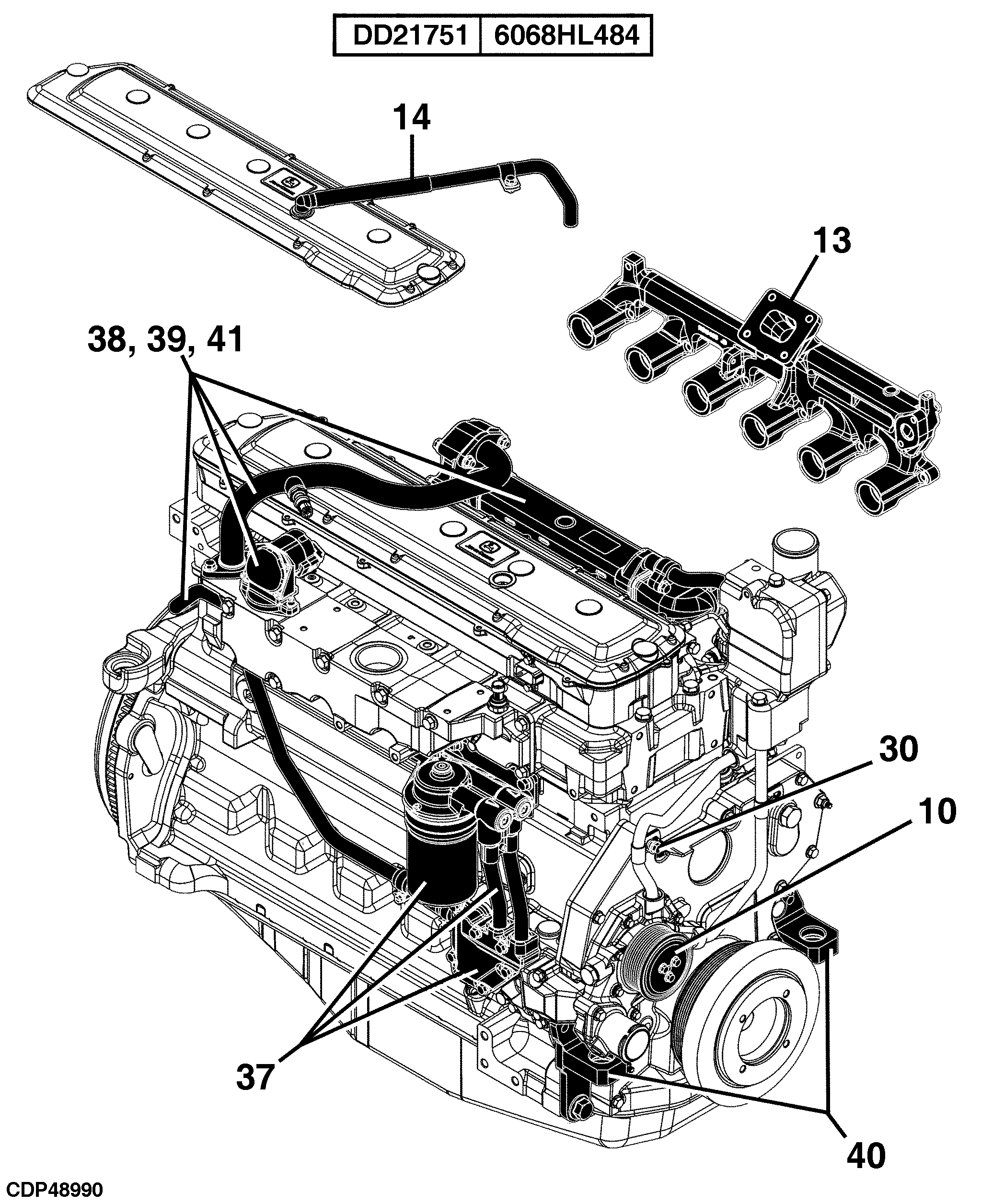

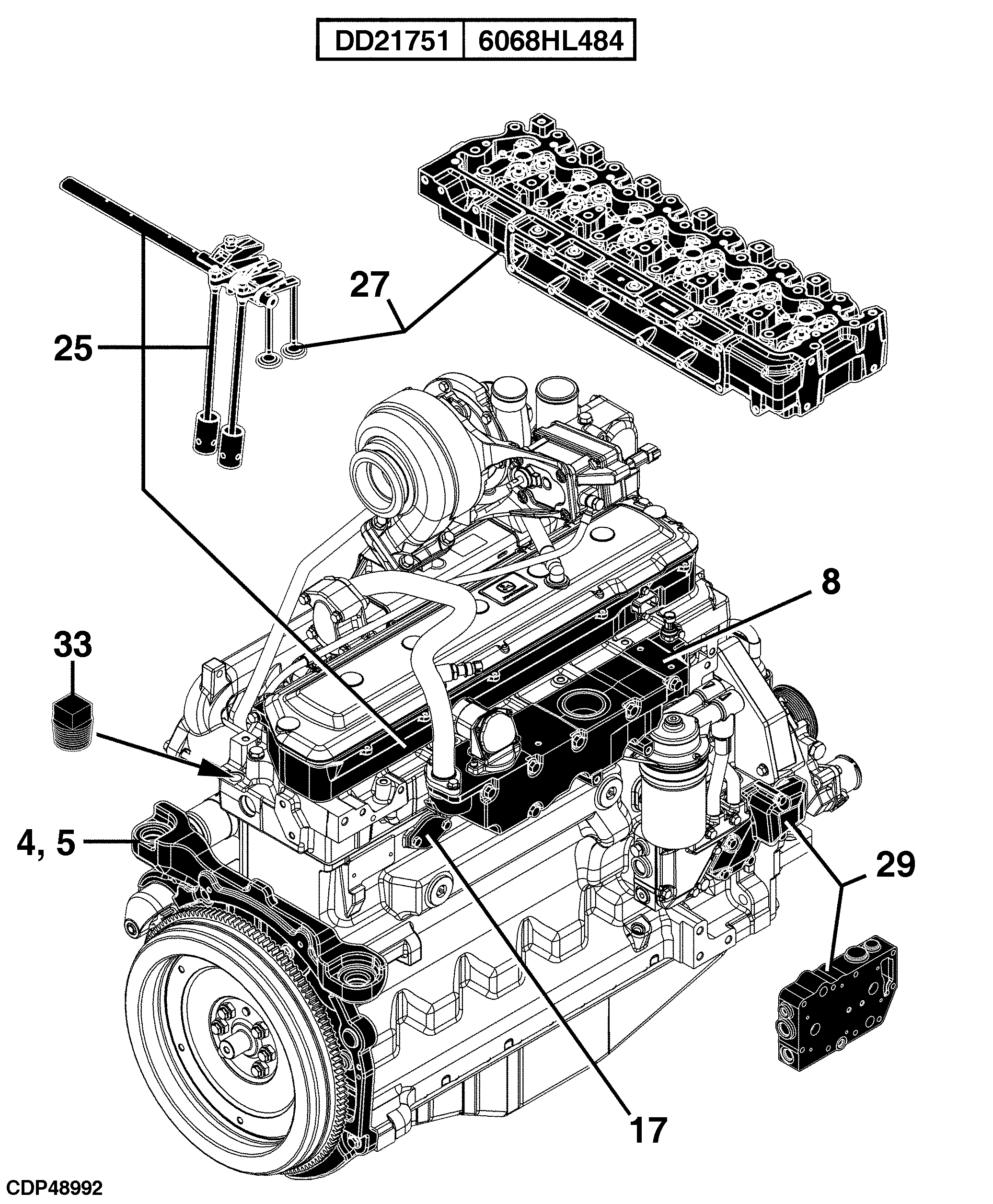

27 Engine 6068HL484-DD21751

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание

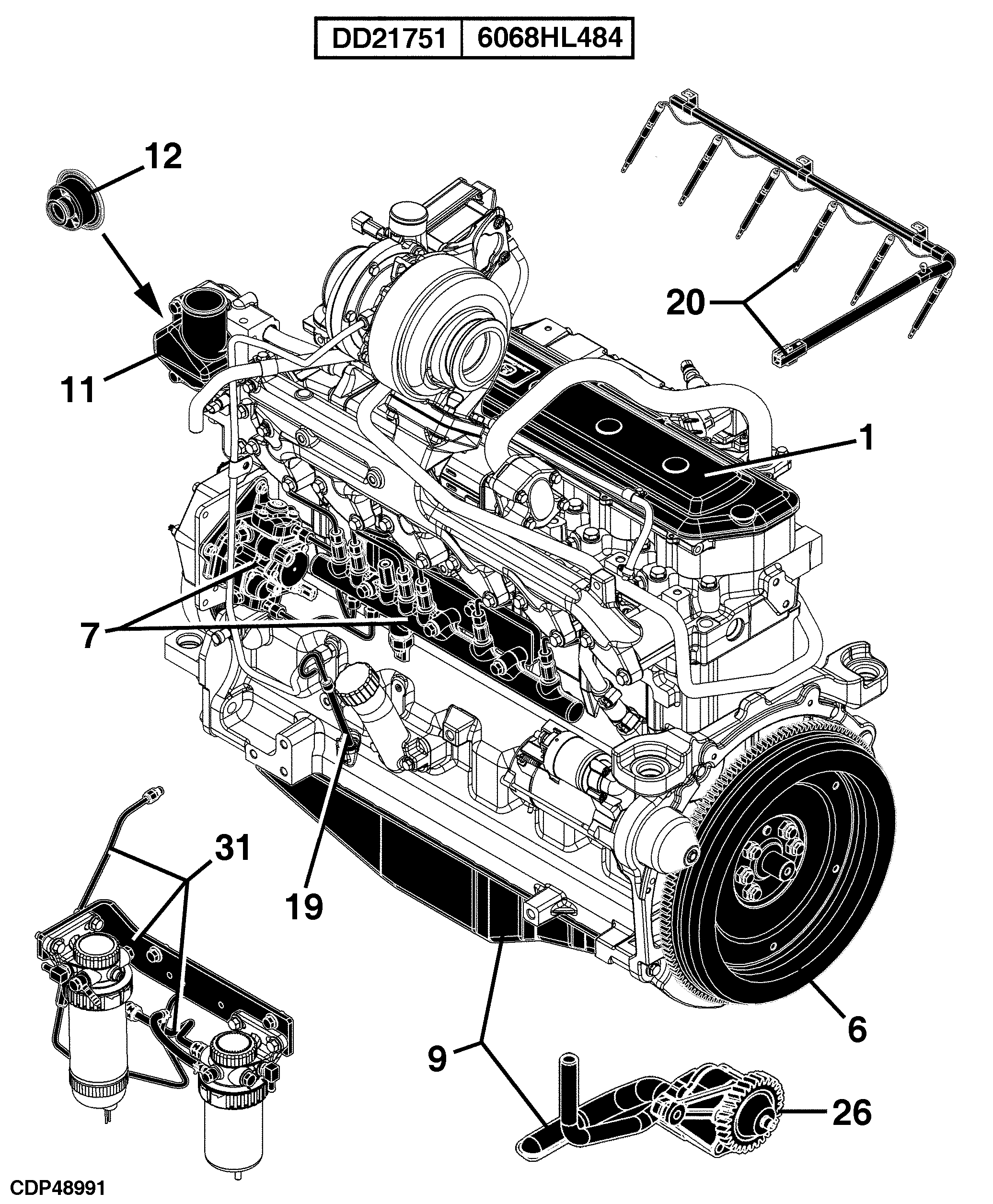

-	-	1	9573 Engine Front Brackets	-

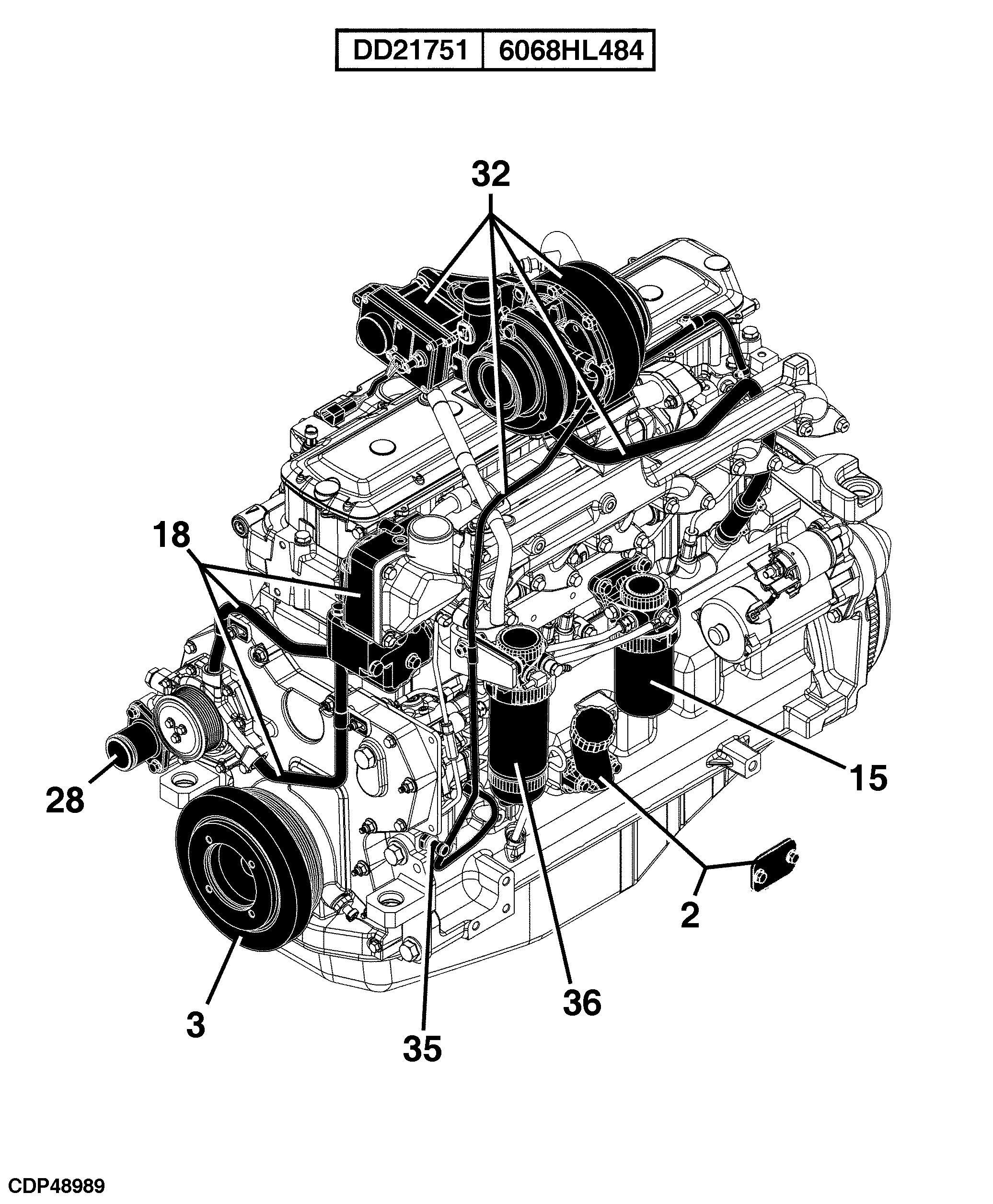

-	-	1	5701 Water Pump Inlet	-
-	-	1	5956 Oil Cooler	-
-	-	1	6299 Alternator Mounting Hardware	-
-	-	1	6376 Low Pressure Fuel Lines	-
-	-	1	65UZ Turbocharger	-
-	-	1	6699 Plug, Without Water Temperature Sensor	-
-	-	1	6751 Engine Sensors	-
-	-	1	7635 Oil Pressure Switch	-
-	-	1	8168 Primary Fuel Filter	-
-	-	1	8889 Engine Oil Filter	-
-	-	1	8904 Exhaust Gas Recirculation ( - 127397)	-
-	-	1	8917 Exhaust Gas Recirculation (130487 - )	-

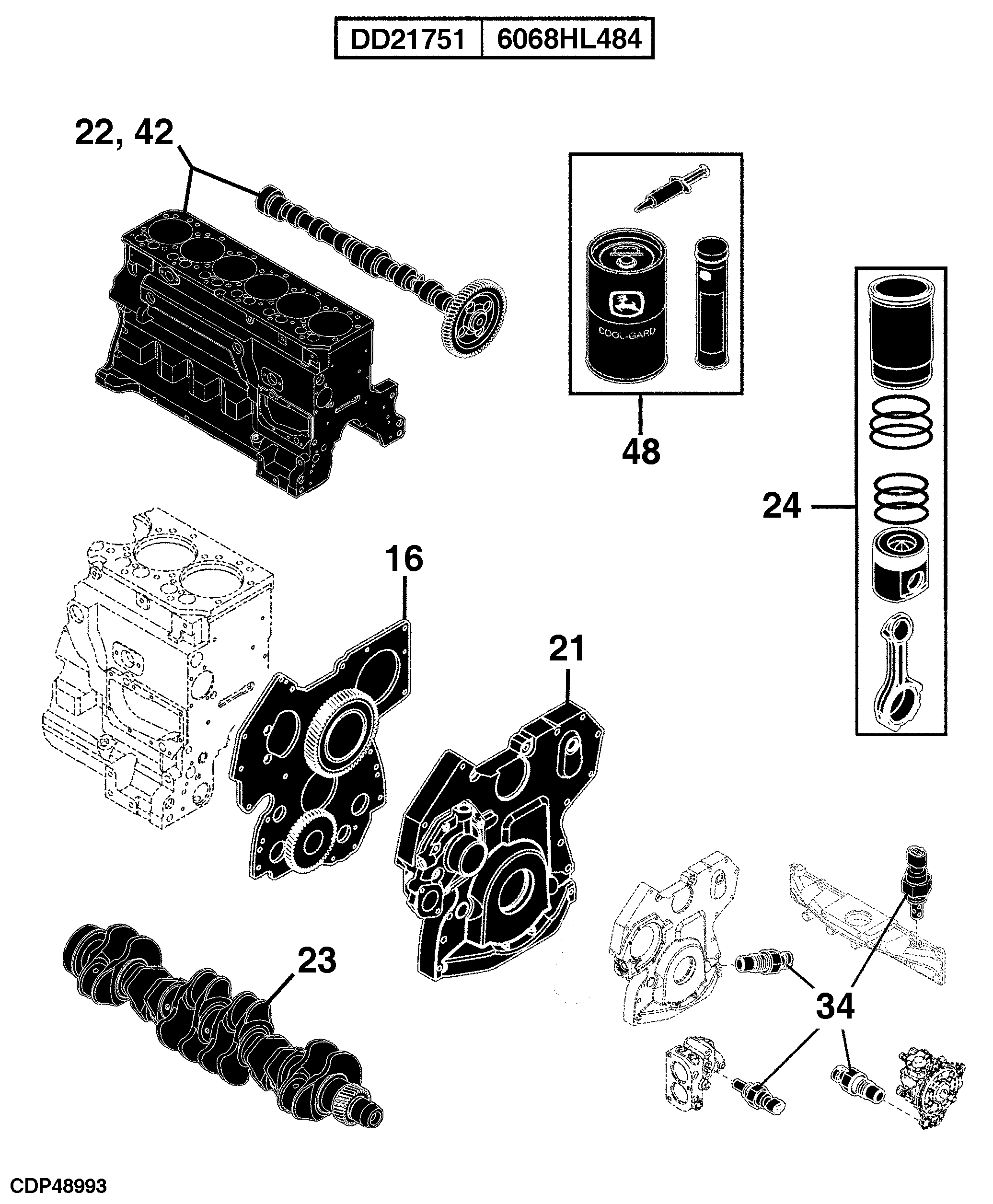

-	-	1	5120 Cylinder Head with Valves	-
-	-	1	9901 Complete Block Assembly	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Cylinder Head Gasket Kit	-
-	-	1	9901 EGR Valve Gasket Kit	-
-	-	1	9901 Engine Gasket Kit	-

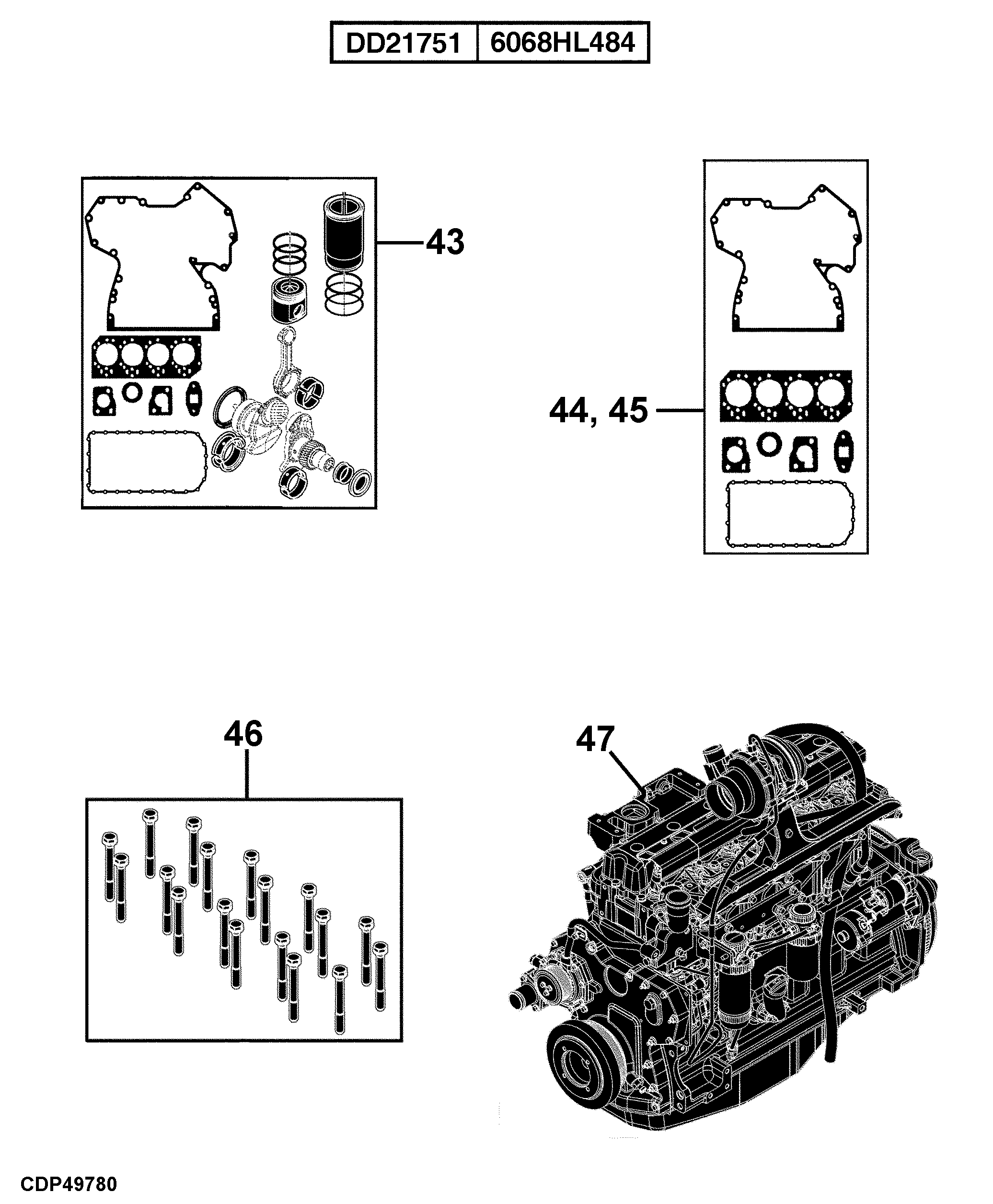

-	-	1	9901 Engine Overhaul Kit (1/2)	-
-	-	1	9901 Engine Overhaul Kit (2/2)	-
-	-	1	9901 Kit Screws, Cylinder Head	-
-	-	1	9901 Liquid Gasket, Grease Camshaft Bushing, Coolant	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly	-
-	-	1	2960 Breather	-
-	-	1	1240 Oil Filler Neck	-
-	-	1	1341 Crankshaft Pulley and Damper	-
-	-	1	1466 Flywheel Housing ( - 120603)	-
-	-	1	1480 Flywheel Housing (124135 - )	-
-	-	1	1593 Flywheel	-
-	-	1	169X Fuel Injection System	-
-	-	1	17CB Intake Manifold	-
-	-	1	19CH Oil Pan	-
-	-	1	2001 Water Pump Pulley	-
-	-	1	2154 Thermostat Cover	-
-	-	1	2255 Engine Thermostat	-
-	-	1	28AS Exhaust Manifold	-
-	-	1	1136 Rocker Arm Cover	-
-	-	1	35DX Final Fuel Filter	-
-	-	1	3612 Front Plate	-
-	-	1	3799 Fuel Transfer Pump, Hardware	-
-	-	1	3921 Thermostat Housing / By Pass Tube to Water Pump	-
-	-	1	4058 Engine Oil Dipstick	-
-	-	1	4332 Starting Aid	-
-	-	1	4439 Timing Gear Cover	-
-	-	1	4633 Cylinder Block	-
-	-	1	4712 Crankshaft and Bearings	-
-	-	1	4834 Connecting Rods and Pistons	-
-	-	1	4905 Valve Actuating Mechanism	-
-	-	1	5024 Engine Oil Pump	-
