Открытый узел

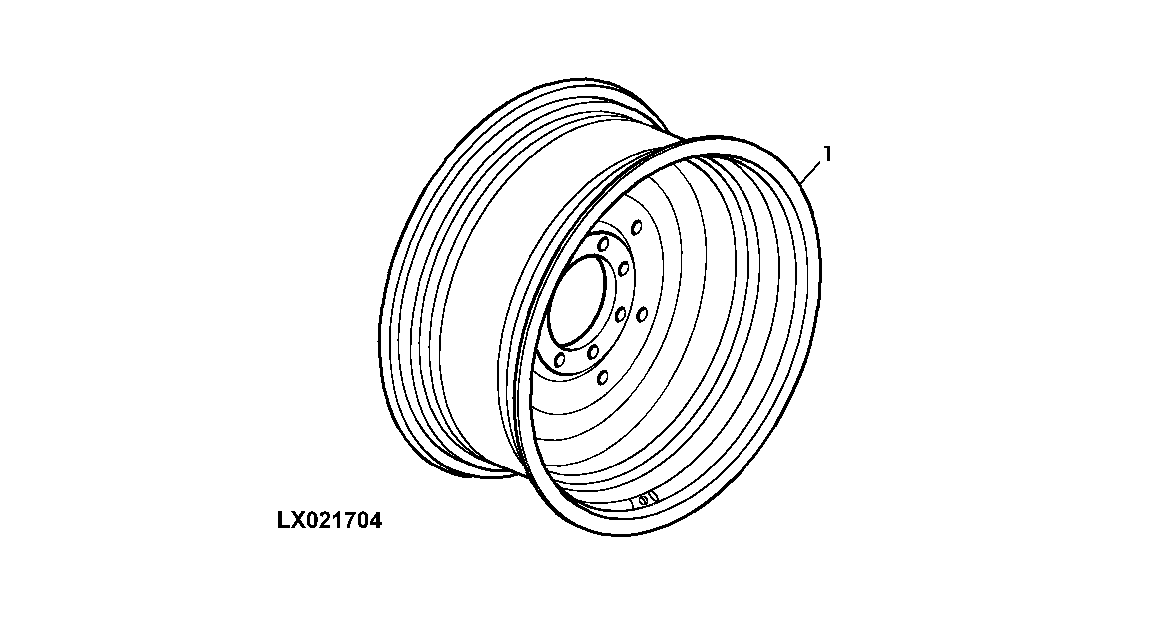

STEEL DISK REAR WHEELS (275MM BOLT CIRCLE DIAMETER)

STEEL DISK REAR WHEELS (275MM BOLT CIRCLE DIAMETER)

STEEL DISK REAR WHEELS (275MM BOLT CIRCLE DIAMETER)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

STEEL DISK REAR WHEELS (275MM BOLT CIRCLE DIAMETER)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL203681	2	Wheel	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) TW23BX38, SUB FOR AL166469
1	AL206361	2	Wheel	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) (FOR HEAVY-DUTY CONDITIONS) TW23BX38, SUB FOR AL176841
1	AL208441	2	Wheel	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) TW20BX42, SUB FOR AL172023
1	AL176842	2	Wheel	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) (FOR HEAVY-DUTY CONDITIONS) DW20AX42, MARKED AL176842, NLA; ORDER AL208325
1	AL208440	2	Wheel	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) TW18LX42, SUB FOR AL172024
1	AL176843	2	Wheel	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) (FOR HEAVY-DUTY CONDITIONS) DW18LX42, NLA; ORDER AL208324
1	AL208439	2	Wheel	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) TW25BX42, SUB FOR AL175473
1	AL208324	2	Wheel	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) (FOR HEAVY-DUTY CONDITIONS) TW18LX42
1	AL208325	2	Wheel	(FOR TIRE SIZE REFER TO TIRE MANUAL OF MANUFACTURER) (FOR HEAVY-DUTY CONDITIONS) TW20BX42
