SELECTIVE CONTROL VALVE PRESSURE AND RETURN PIPES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R39112	1	Fitting	(2 USED LESS ROCKSHAFT)
2	R26375	1	O-Ring	(2 USED LESS ROCKSHAFT)
3	R49513	1	Manifold	-
4	R26149	1	PACKING	(6 USED DUAL) (8 USED TRIPLE)
5	19H1820	2	Cap Screw	1/2" X 3"
5	12H301	2	Lock Washer	1/2"
6	R26906	3	O-Ring	-
7	R52683	1	Fitting	-
8	AR21839	2	Clamp	(SUB TY22467)
9	-	1	Part 10	63.5MM (2-1/2"), (MAKE FROM TY22563) (SUB FOR R26905)
10	AR54493	1	Oil Line	RETURN
10	AR68226	1	Oil Line	RETURN
11	AR21837	2	Clamp	(SUB TY22465)
12	R50109	1	Hose	-
13	19H1732	2	Cap Screw	3/8" X 1-1/4"
13	12H304	2	Lock Washer	3/8"
14	R27531	6	Clamp	-
14	R27531	2	Clamp	-
15	28H1878	1	SPACER	0.493" X 0.675" X 7/16"
16	12H304	2	Lock Washer	3/8"
16	14H1076	2	Nut	3/8"
17	28H1525	1	BUSHING	0.493" X 0.675" X 1-1/16"
18	19H1801	1	CAP SCREW	3/8" X 2"
19	AR21839	2	Clamp	-
20	19H1800	1	Cap Screw	3/8" X 1-1/2"
21	R50553	1	Hose	-
22	AR40516	1	ELBOW FITTING	-
23	AR54492	1	Oil Line	PRESSURE
24	28H1518	1	Washer	0.493" X 0.675" X 5/16"
25	R47576	2	CLAMP	-
26	AT32338	1	Fitting	(SUB FOR AR26828)
27	R37479	1	Cover	-
28	R27218	1	Fitting Plug	-
29	R26448	1	O-Ring	-
30	08H4148	3	Cap Screw	3/8" X 8-1/2", (DUAL)
30	08H4496	3	CAP SCREW	3/8" X 11", (TRIPLE)

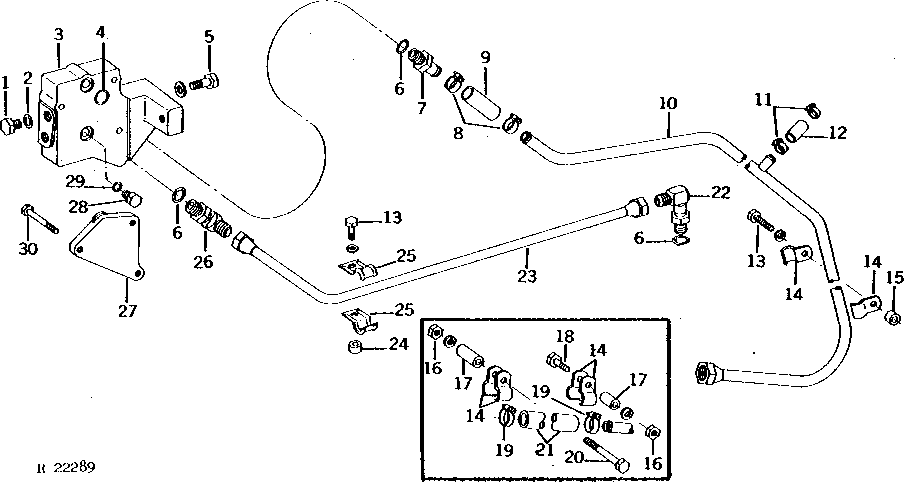

SELECTIVE CONTROL VALVE PRESSURE AND RETURN PIPES
