Auxiliary Pilot Control Plumbing Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

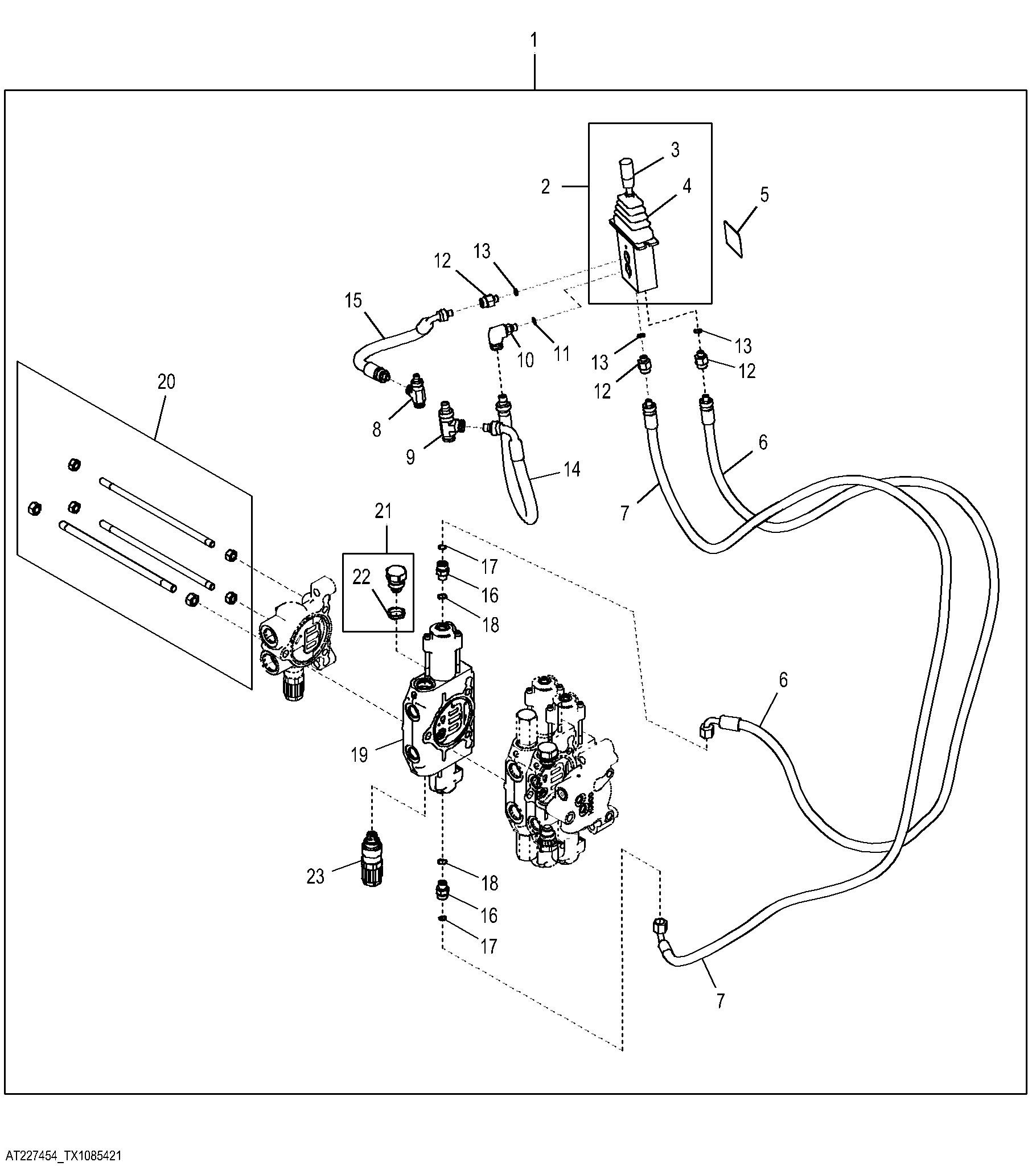

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT221852	1	Tie Rod Assembly	Four Section Not Illustrated
1	AT227454	1	Hydr./Pilot Control Valve	Whole Goods
1	AT221853	1	Tie Rod Assembly	Five Function Not Illustrated
2	AT493817	1	Hydr./Pilot Control Valve	INCLUDES AT198770, AT198771, AT317701, AT317702, (2) T190824, T213219 AND AT317703
2	AT198770	1	Actuator Kit	-
2	AT198771	1	Seat Kit	-
2	AT317701	1	Spool	-
2	AT317702	1	Universal Joint Yoke	-
2	T190824	2	Screw	-
2	T213219	1	Boot	-
2	AT317703	1	Handle	-
3	AT317703	1	Handle	-
4	T213219	1	Boot	-
5	T205880	1	Label	Auxiliary Pilot Control Hose Connections
6	AT307257	1	Hydraulic Hose	Fabricate
7	AT307256	1	Hydraulic Hose	Fabricate
8	AT306852	1	Lubrication Fitting	-
9	AT306853	1	Lubrication Fitting	-
10	62H1056	1	Adapter Fitting	-
11	R28782	1	O-Ring	-
12	62H1058	3	Adapter Fitting	-
13	R28782	3	O-Ring	-
14	AT305958	1	Hydraulic Hose	Fabricate
15	AT305959	1	Hydraulic Hose	Fabricate
16	38H1160	2	Adapter Fitting	-
17	T77613	2	O-Ring	-
18	R26448	2	O-Ring	-
19	AT317423	1	Spool Valve	Components Listed On Separate Page, INCLUDES T118685
19	T118685	1	O-Ring	-
20	AT320348	1	Tie Rod Assembly	Convert 2 Function To 3 Function
21	AT83174	1	Fitting Plug	Section Seal
22	T183757	1	Seal	-
23	AT323453	1	Pressure Relief Valve	-

Auxiliary Pilot Control Plumbing Kit
