Push Beams, Struts and Pitch Jack ( - 181537)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3527	4	Cap Screw	1" X 7"
2	14M7277	8	Nut	M20
3	19M7969	6	Cap Screw	M20 X 110
4	19M7892	2	Cap Screw	M20 X 80
5	19M8242	2	Screw	M12 X 16
6	19M8639	20	Cap Screw	M20 X 70, Standard and Wide Track
6	19M7921	20	Cap Screw	M20 X 150, Wide Track
7	24M7396	36	Washer	21 X 34 X 3 mm
8	AH210923	1	Rod	Rod Assembly With End
9	AH210949	1	Rod	Rod With End
10	AT302747	1	Turnbuckle	Pitch Jack
11	JD7799	3	Lubrication Fitting	-
12	AT303030	1	Beam	Convenience Assembly Left Hand Standard
12	AT303052	1	Beam	Left Hand Wide Track
13	AT302556	2	Self-Aligning Bushing	-
14	T211038	2	Cap	Trunnion Seat
15	H179667	4	Ring	-
16	AT310635	1	Pin	(SUB FOR T208137 )
17	AT310768	1	Pivot	-
18	40M7090	2	Snap Ring	-
19	AT133366	1	Self-Aligning Bushing	Ball Bushing
20	AT310973	2	Trunnion	Push Beam Standard
20	AT310974	2	Trunnion	Push Beam Wide Track
21	AT310985	1	Link	Blade To Push Beam Link
22	K40018	4	Lock Nut	-
23	T202701	2	Pin Fastener	Pitch Jack
24	T202755	2	Plate	-
25	T202781	4	Bushing	-
26	T223424	2	Cap	(SUB FOR T211039 )
27	T351014	2	Bearing	SUB FOR T212400
28	T212464	4	Plate	-
29	T49100	20	Plate	-
30	AT303031	1	Beam	Convenience Assembly Right Hand Standard
30	AT303053	1	Beam	Right Hand Wide Track
31	AT326972	1	Pivot	Right Hand
32	AT326971	1	Pivot	Left Hand

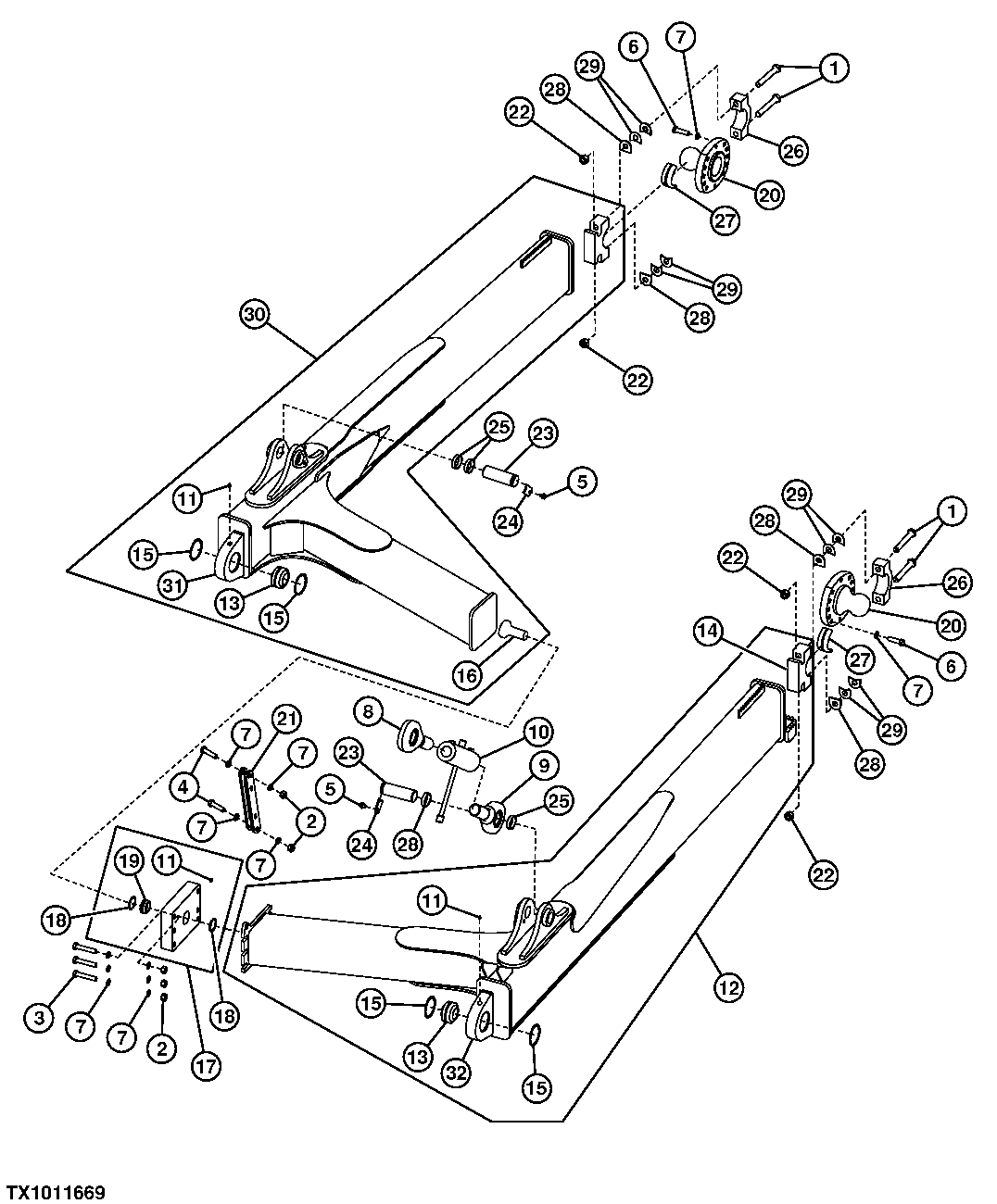

Push Beams, Struts and Pitch Jack ( - 181537)
