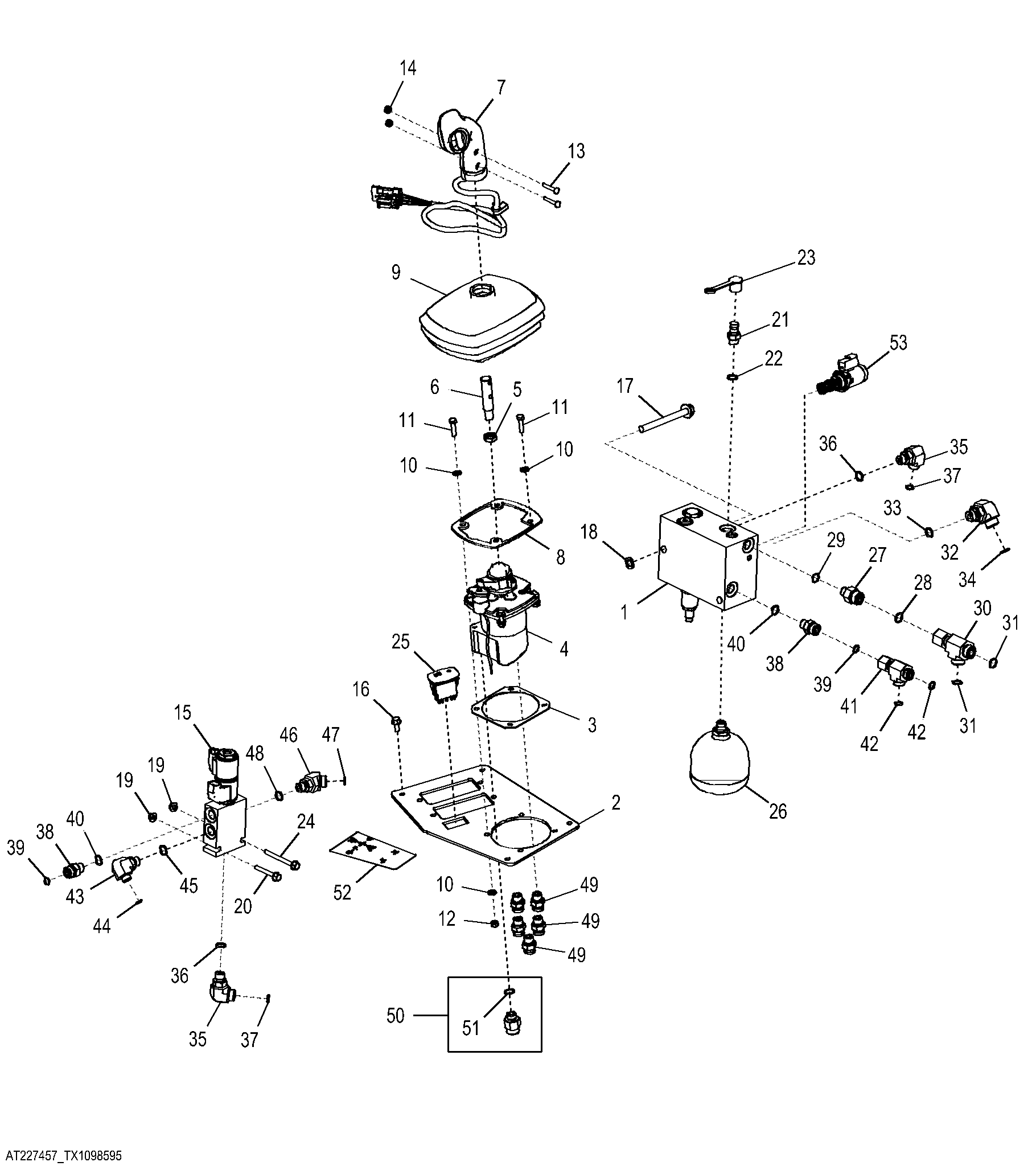

Pilot Controls. Power Angle Tilt

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT363359	1	Flow Control Hyd. Valve	Components Listed On Separate Pages
2	T317161	1	Plate	-
3	T212546	1	Seal	-
4	AT308344	1	Hydr./Pilot Control Valve	Components Listed On Separate Pages
5	14M7415	1	Nut	M12
6	T212433	1	Stud	-
7	AT307654	1	Grip	-
8	T212407	1	Plate	-
9	T212529	1	Boot	-
10	24M7293	8	Washer	6.500 X 13 X 1.600 mm
11	19M7933	4	Cap Screw	M6 X 25
12	14M7272	4	Nut	M6
13	21H1486	2	Screw	0.190" X 1-1/8"
14	LVA12162	2	Lock Nut	-
15	AT423341	2	Solenoid Valve Coil	24V, 1500 Watt, SUB FOR AT333811
15	T225291	1	Nut	-
15	F433465	1	Seal Kit	-
15	AT330180	1	Solenoid Hydraulic Valve	Valve Cartridge
15	AT330179	1	Solenoid Hydraulic Valve	Angle Control Includes Valve Body and Coils
16	19M7775	4	Screw	M6 X 16
17	19M7812	2	Screw	M10 X 100
18	24M7096	2	Washer	10.500 X 18 X 1.600 mm
19	14M7303	2	Flange Nut	M6
20	19M7834	1	Screw	M6 X 45
21	AH125760	1	Hyd. Quick-Connect Coupler	-
22	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
23	R77175	1	Cover	-
24	19M8804	1	Screw	M6 X 65
25	AT309947	1	Toggle/Rocker Switch	Pilot Enable
26	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
26	AT195957	1	Hydraulic Accumulator	-
27	38H1173	1	Adapter Fitting	-
28	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
29	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
30	38H1031	1	Tee Fitting	-
31	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
32	38H1314	1	Elbow Fitting	-
33	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
34	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
35	38H1004	2	Elbow Fitting	-
36	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
37	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
38	38H1160	2	Adapter Fitting	-
39	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
40	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
41	38H1030	1	Tee Fitting	-
42	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
43	38H1009	1	Elbow Fitting	-
44	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
45	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
46	38H1045	1	Elbow Fitting	-
47	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
48	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
49	62H1001	5	Adapter Fitting	SUB FOR AT187666; INCLUDES R26448
49	AT193365	1	Seal Kit	-
50	62H1054	1	Adapter Fitting	-
51	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
52	T204052	1	Label	6 Function Blade
53	AT303799	1	Valve	-
53	AT224873	1	Seal Kit	-
