Открытый узел

Pilot Controls (Outside Dozer)

Pilot Controls (Outside Dozer)

Pilot Controls (Outside Dozer)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

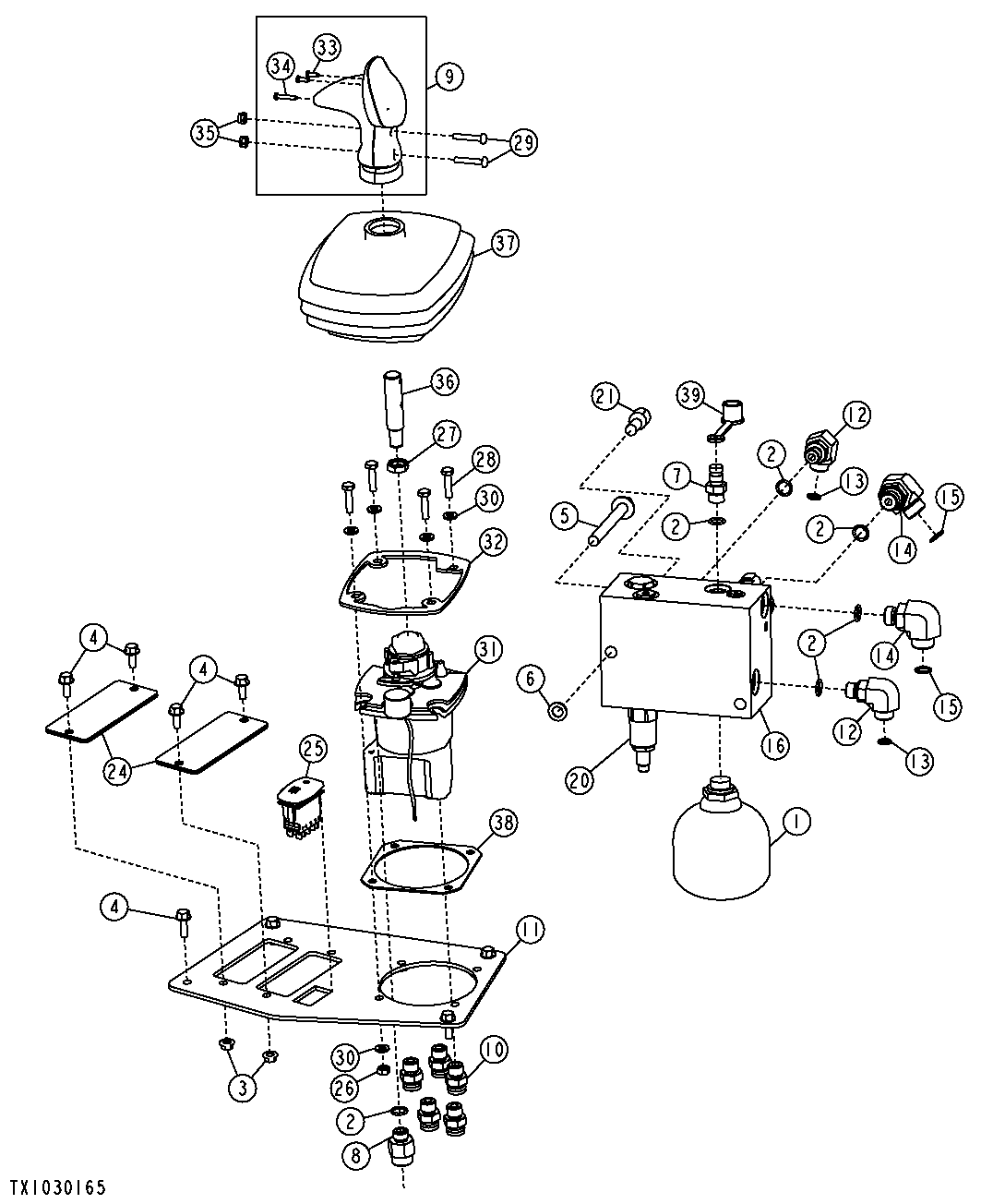

Pilot Controls (Outside Dozer)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT195957	1	Hydraulic Accumulator	-
2	R26448	5	O-Ring	-
3	14M7303	4	Flange Nut	M6
4	19M7775	4	Screw	M6 X 16, Used To Fasten Auxiliary Control Cover Plates
4	19M7862	4	Screw	M6 X 20, Used To Fasten Pilot Controller Mounting Plate
5	19M7812	2	Screw	M10 X 100
6	24M7096	2	Washer	10.500 X 18 X 1.600 mm
7	AH125760	1	Hyd. Quick-Connect Coupler	Diagnostic Receptacle
8	62H1054	1	Adapter Fitting	-
8	AT193366	1	Seal Kit	Snap To Connect Fitting Repair Kit
9	LVA11727	1	Grip	Hydraulic Control Lever
10	AT193366	1	Seal Kit	Snap To Connect Fitting Repair Kit
10	62H1001	5	Adapter Fitting	SUB FOR AT187666; INCLUDES R26448
11	T317161	1	Plate	Pilot Controller Mounting Plate, SUB FOR T200286
12	38H1004	2	Elbow Fitting	-
13	T77613	2	O-Ring	-
14	38H1314	2	Elbow Fitting	-
15	T77857	2	O-Ring	-
16	AT363359	1	Flow Control Hyd. Valve	Pressure Reducing Manifold Components Listed On Separate Pages, SUB FOR AT306537
16	AT300255	1	Seal Kit	-
17	344046	1	Bolt	Socket
18	AT224570	1	Check Valve	-
20	AT303799	1	Valve	INCLUDES AT196943, SUB FOR AT313708
20	AT224873	1	Seal Kit	INCLUDED IN AT332497
21	AT332497	2	Hydraulic Pressure Valve	Pressure Reducing, INCLUDES AT224873
21	AT196943	1	Seal Kit	INCLUDED IN AT303799
22	AT49216	1	Fitting Plug	-
23	T105368	1	Fitting Plug	-
24	AT307880	2	Plate	Auxiliary Control Cover Plate
25	AT309947	1	Toggle/Rocker Switch	Pilot Enable
26	14M7272	4	Nut	M6
27	14M7415	1	Nut	M12
28	19M7933	4	Cap Screw	M6 X 25
29	21H1486	2	Screw	0.190" X 1-1/8"
30	24M7293	8	Washer	6.500 X 13 X 1.600 mm
31	AT308344	1	Hydr./Pilot Control Valve	Complete See Pilot Control Component Page For Complete Breakdown
32	T212407	1	Plate	-
33	37M7355	2	Screw	-
34	37M7356	1	Screw	-
35	LVA12162	2	Lock Nut	-
36	T212433	1	Stud	Tie Bolt
37	T212529	1	Boot	-
38	T212546	1	Seal	-
39	R77175	1	Cover	-
