Integrated Grade Control Hydraulic Control Valve Installation (Four Function)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7299	1	Flange Nut	M12
2	19M7787	2	Screw	M12 X 20
3	19M7788	1	Screw	M12 X 25
4	19M7790	3	Screw	M12 X 35
5	38H1012	1	Elbow Fitting	-
6	R26906	3	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
7	T77857	3	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
8	38H1164	1	Adapter Fitting	-
9	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
10	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
11	38H1174	1	Adapter Fitting	-
12	38H1179	1	Adapter Fitting	-
13	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
14	38H1376	1	Tee Fitting	-
15	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
16	T215791	1	Plate	-
17	38H1016	1	Tee Fitting	-
18	R26448	3	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
19	T77613	5	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
20	38H1038	1	Tee Fitting	-
21	38H1160	1	Adapter Fitting	-
22	38H1168	1	Adapter Fitting	-
23	T77814	2	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
24	38H1480	1	Reducer	-
50	AT360638	1	Control Valve	Four Function Integrated Grade Control, (SUB FOR AT351019 AND AT322324 )

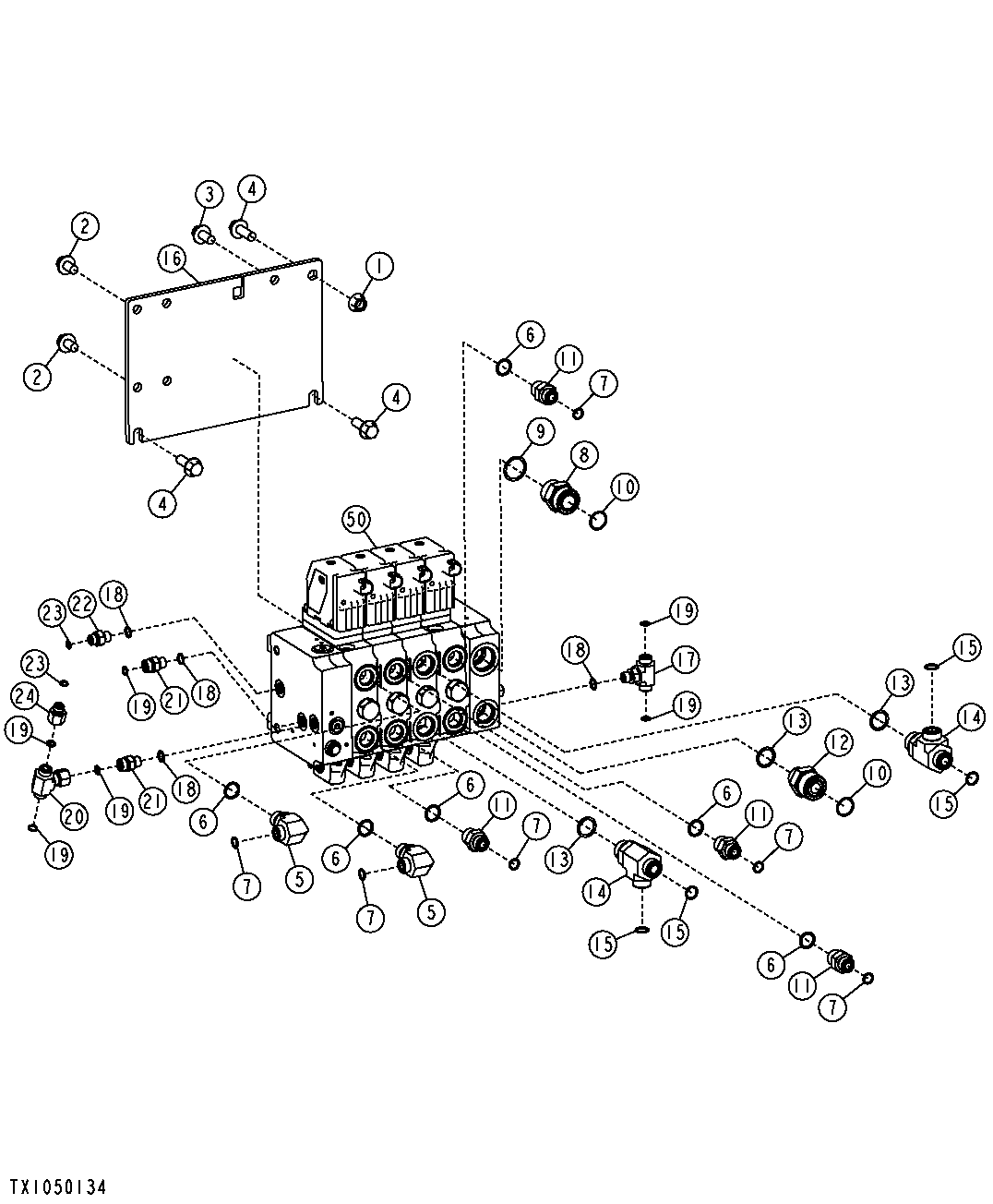

Integrated Grade Control Hydraulic Control Valve Installation (Four Function)
