Integrated Grade Control Hydraulic Control Valve Components (Four Function)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT324966	1	Seal Kit	Not Illustrated
2	AT329075	1	Valve	Inlet Section
3	AT49216	3	Fitting Plug	Detent
4	T70177	3	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
5	T58477	1	Fitting	-
6	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
7	AT329081	1	Valve	Angle Section
8	19M8532	16	Screw	M6 X 35
9	19M8553	16	Screw	M6 X 16
10	AT329089	1	Elec-Hyd Proportional Valve	-
11	AT355118	4	Seal Kit	-
11	AT335927	4	Actuator	-
12	AT335928	2	Valve Spool	-
13	AT335946	2	Housing	-
14	AT329083	4	Pressure Relief Valve	Circuit Relief 380 Bar
15	Z29304	7	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
16	AT335920	4	Compensator	Pressure
17	51M7045	4	O-Ring	19.300 X 2.200 mm
18	AT329082	1	Valve	Outlet Section
19	AT329084	1	Pressure Relief Valve	280 bar, System
20	AT335918	1	Pressure Relief Valve	231 bar, Load Sense
21	T74553	1	O-Ring	11 X 2 mm (0.433" X 0.079")
22	AT335919	1	Hydraulic Pressure Valve	Pressure Reducing
24	AT63271	2	Fitting	-
25	R26375	2	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
26	T227074	1	Orifice	-
27	AT329086	5	Seal Kit	-
28	AT335934	1	Bolt And Nut	-
29	AT360631	1	Valve	Tilt Section, (SUB FOR AT329080 AND AT351012 )
30	AT335929	1	Valve Spool	Tilt
31	AT335932	3	Spring Assembly	-
32	AT335947	1	Housing	Tilt
33	AT360626	2	Elec-Hyd Proportional Valve	(SUB FOR AT329087 AND AT351013 )
34	AT360636	1	Valve	(SUB FOR AT335935 AND AT351016 )
35	AT335931	1	Valve Spool	Lift
36	AT335933	1	Spring Assembly	-
37	AT335948	1	Housing	Lift
38	AT329127	1	Check Valve	-
39	AT360624	1	Elec-Hyd Proportional Valve	(SUB FOR AT329088 AND AT351010 )
41	AT360637	1	Valve	Lift Section, (SUB FOR AT351017 AND AT329078 )
50	AT360638	1	Control Valve	Four Function Integrated Grade Control, (SUB FOR AT351019 AND AT322324 )

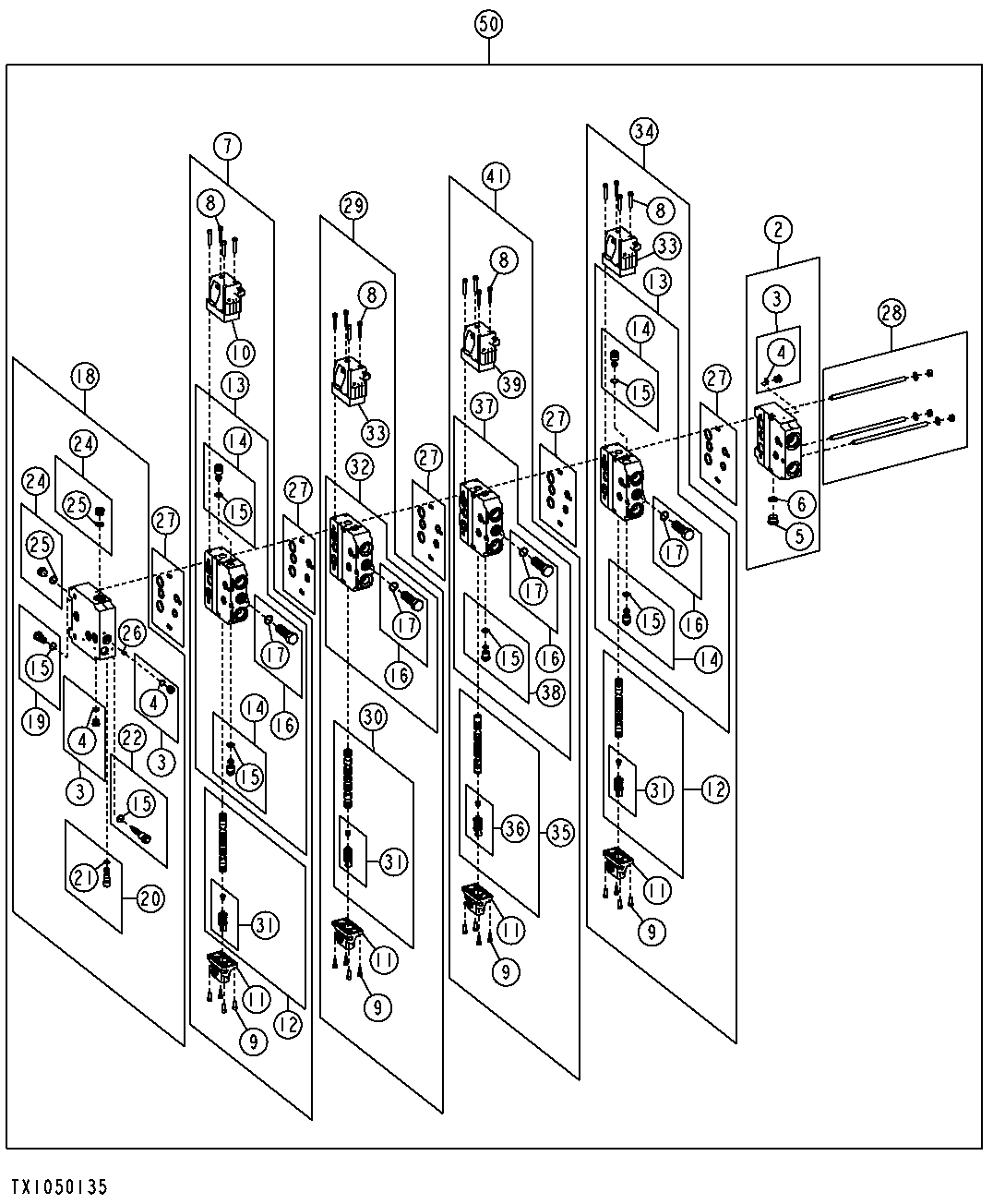

Integrated Grade Control Hydraulic Control Valve Components (Four Function)
