Открытый узел

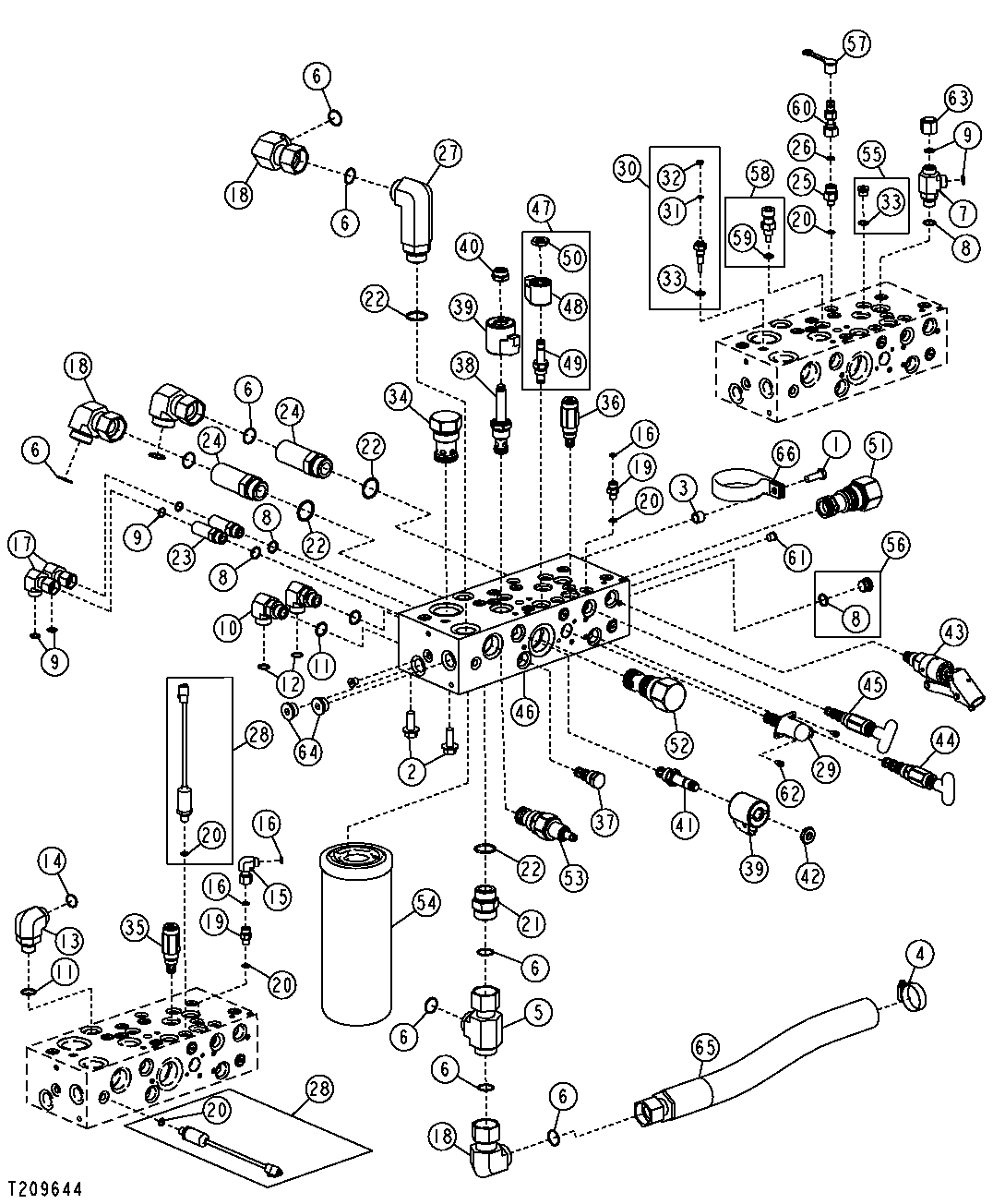

Hydrostatic Integrated Control Valve ( - 173641)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7662	1	Cap Screw	M10 X 30
2	19M7789	3	Screw	M12 X 30
3	28H3394	1	Bushing	0.493" X 0.675" X 1/2"
4	AR44217	1	Clamp	-
5	38H1002	1	Tee Fitting	-
6	T76938	12	O-Ring	-
7	38H1024	1	Tee Fitting	-
8	R26375	3	O-Ring	-
9	T77857	6	O-Ring	-
10	38H1006	2	Elbow Fitting	-
11	R26906	3	O-Ring	-
12	T77932	2	O-Ring	-
13	38H1014	1	Elbow Fitting	-
14	T77858	1	O-Ring	-
15	38H1093	1	Elbow Fitting	-
16	T77814	3	O-Ring	-
17	38H1095	2	Elbow Fitting	-
18	38H1098	4	Elbow Fitting	-
19	38H1159	2	Adapter Fitting	-
20	R28782	4	O-Ring	-
21	38H1164	1	Adapter Fitting	-
22	R29936	4	O-Ring	-
23	38H1213	2	Adapter Fitting	-
24	38H1216	2	Adapter Fitting	-
25	38H1309	1	Adapter Fitting	-
26	T77613	1	O-Ring	-
27	38H1493	1	Elbow Fitting	-
28	-	2	Part 28	Hydrostatic Charge And Brake Pressure, ORDER AT430039 AND AT363848, AT228298 AND AT355360 NLA
28	R28782	1	O-Ring	-
29	AT303799	1	Valve	Hydrostatic Oil Cooler Bypass Solenoid, INCLUDES AT224873
29	AT224873	1	Seal Kit	INCLUDED IN AT303799
30	AT305595	1	Pressure Switch	Hydrostatic
31	12M7060	1	Washer	5.300 mm
32	14H778	2	Nut	0.190"
33	R26448	2	O-Ring	-
34	AT323730	1	Valve	Charge Filter Bypass Valve, INCLUDES AT327153
34	AT327153	1	Seal Kit	-
35	AT307211	1	Pressure Relief Valve	Hand Pump, INCLUDES AT327149
35	AT327149	1	Seal Kit	-
36	AT307212	1	Pressure Relief Valve	Brake Pump, INCLUDES AT327149
36	AT327149	1	Seal Kit	-
37	AT327152	1	Seal Kit	-
37	AT307214	1	Valve	Brake Shuttle Valve, INCLUDES AT327152
38	AT308123	1	Solenoid Valve	Park Brake
38	AT327145	1	Seal Kit	SUB FOR AT314329, THIS APPLICATION
39	AT423342	1	Solenoid Valve Coil	Park Brake, SUB FOR AT333813 AND AT308124
39	AT327145	1	Seal Kit	SUB FOR AT314329, THIS APPLICATION
40	T208385	1	Nut	USE WITH AT308124
40	T225292	1	Nut	USE WITH AT333813 AND AT423342
41	AT308122	1	Solenoid Valve	Park Brake
42	T225293	1	Nut	SUB FOR T181306
43	AT310725	1	Pump	Cab Tilt, INCLUDES AT327146
43	AT327146	1	Seal Kit	-
44	AT310789	1	Valve	Cab /Brake Selector Valve, INCLUDES AT327150
44	AT327150	1	Seal Kit	-
45	AT310790	1	Valve	Cab Up /Down Selector Valve, INCLUDES AT327151
45	AT327151	1	Seal Kit	-
46	AT326989	1	Manifold	Hydrostatic Integrated Control Valve Manifold, SUB FOR AT321344
47	AT317088	1	Valve	Tank Bypass Valve Pilot
47	AT327149	1	Seal Kit	-
48	AT423339	1	Solenoid Valve Coil	SUB FOR AT333809 AND AT224574
49	AT313500	1	Valve	Tank Bypass Valve Pilot
50	T225293	1	Nut	USE WITH AT333809 AND AT423339
50	T211421	1	Nut	USE WITH AT224574
51	AT317089	1	Valve	Oil Cooler Bypass, INCLUDES AT327148
51	AT327148	1	Seal Kit	-
52	AT317092	1	Valve	Tank Bypass Valve, INCLUDES AT327148
52	AT327148	1	Seal Kit	-
53	AT323597	1	Valve	Relief Valve, NLA; ORDER AT486606; INCLUDES AT327143
53	AT327143	1	Seal Kit	-
53	AT486606	1	Valve	-
54	AT318160	1	Oil Filter	Hydrostatic
55	AT49216	1	Fitting Plug	-
55	T70177	1	O-Ring	-
56	AT63271	1	Fitting	-
57	R77175	1	Cover	-
58	RE48419	1	Sensor	Temperature
59	51M7041	1	O-Ring	11.300 X 2.200 mm
60	RE60701	1	Diagnostic Coupling	-
61	T105368	14	Fitting Plug	-
62	T204128	2	Screw	-
63	38H1416	1	Fitting	-
64	T58477	2	Fitting	-
65	AT315955	1	Hydraulic Hose	-
66	T161031	1	Clamp	This Application, SUB FOR T162575

Hydrostatic Integrated Control Valve ( - 173641)

Нет текстового описания
