Heating, Ventilation, Air Conditioning (150470 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

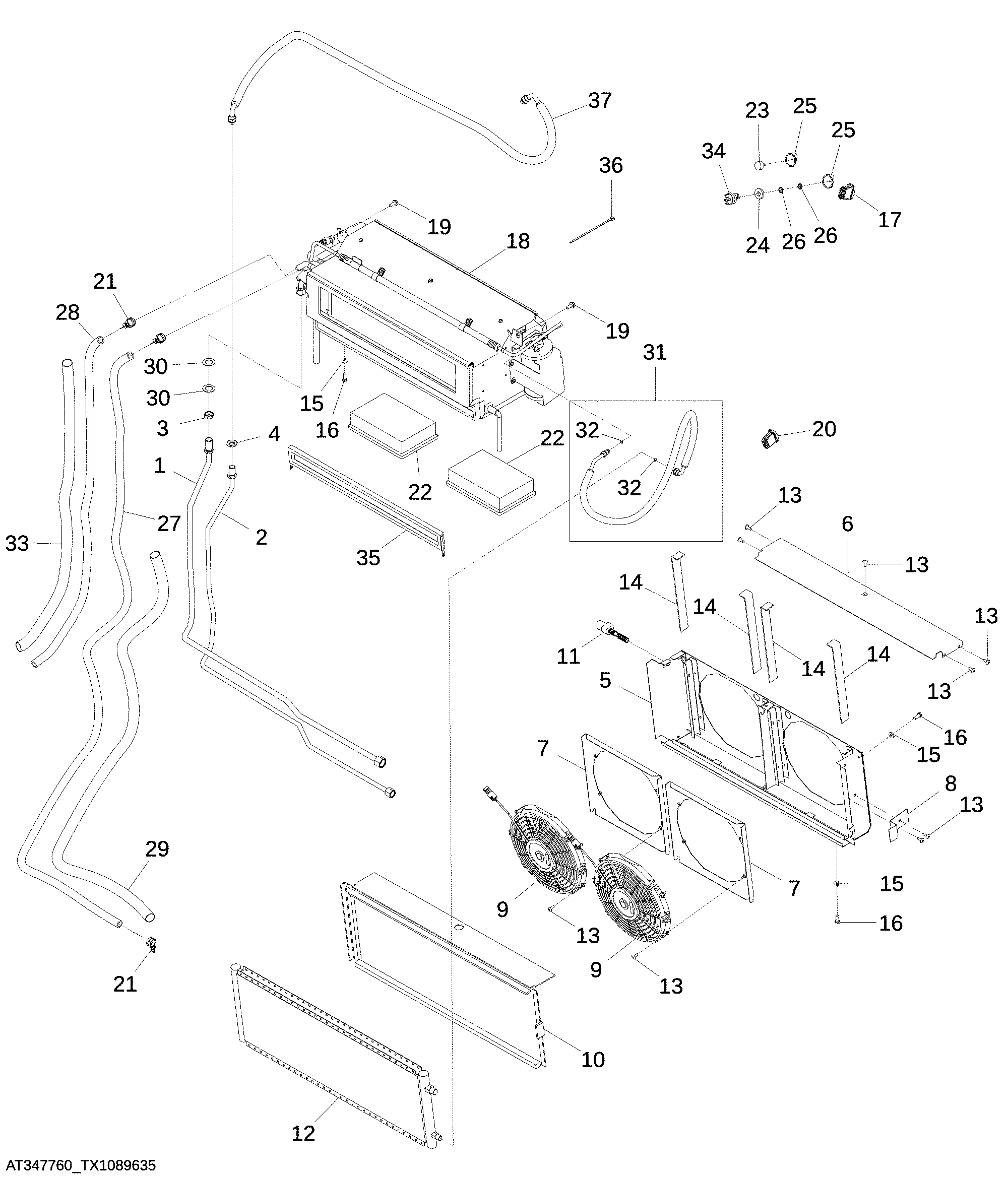

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT302952	1	Line	-
2	AT302951	1	Line	-
3	R26627	1	Nut	-
4	H148375	1	Lock Nut	-
5	AT347450	1	Air Plenum	-
6	AT347449	1	Cover	-
7	AT347670	2	Plate	-
8	T236665	1	Plate	-
9	AT341052	2	Fan	ORDER AT460606
9	AT460606	2	Fan	-
10	AT347451	1	Insulator	-
11	AT347452	1	Wiring Harness	Condenser
12	AT474169	1	Vapor Condenser	SUB FOR AT457703 AND AT341049
13	TCU14336	15	Screw	-
14	T429868	4	Seal	-
15	24H1292	14	Washer	11/32" X 3/4" X 0.120"
16	19M7881	14	Screw	M8 X 20
17	AT303865	1	Toggle/Rocker Switch	On /Off Air Conditioner
18	AT326632	1	Air Conditioner	Furnish Components Components on Separate Page
19	19M7866	2	Screw	M8 X 20
20	AT303864	1	Toggle/Rocker Switch	On /Off Heater
21	AT330787	3	Clamp	-
22	AT191102	2	Air Filter	Fresh Air Contact Gr Manufacturing If You Have An Environmental Cab
23	AT515826	1	Temperature Switch	-
24	24H1272	1	Washer	9/16" X 1-1/4" X 1/4"
25	AT220817	2	Knob	-
26	E46066	2	Nut	-
27	-	1	Part 28	MAKE FROM T60811, CTL 2362 mm (93 in)
28	-	1	Part 29	MAKE FROM T60811, CTL 1550 mm (61 in)
29	-	1	Part 30	MAKE FROM PARKER PS-B-17, CTL 1981 mm (78 in)
30	24H1424	2	Washer	29/32" X 1-1/2" X 0.060"
31	AT221320	1	Refrigerant Hose	NLA; ORDER AT374119 AND (2) R183409
31	AT374119	1	Refrigerant Hose	-
31	R183409	2	O-Ring	-
32	R10093	2	O-Ring	-
33	-	1	Part 36	MAKE FROM PARKER PS-B-17, CTL 1600 mm (63 in)
34	AT471493	1	Switch	SUB FOR RE43497
35	AT528017	1	Filter Element	Recirculation, SUB FOR AT315957
36	R44302	4	Tie Band	-
37	AT315892	1	Refrigerant Hose	Bulkhead To Condenser, INCLUDES (2) R183410

Heating, Ventilation, Air Conditioning (150470 - )
