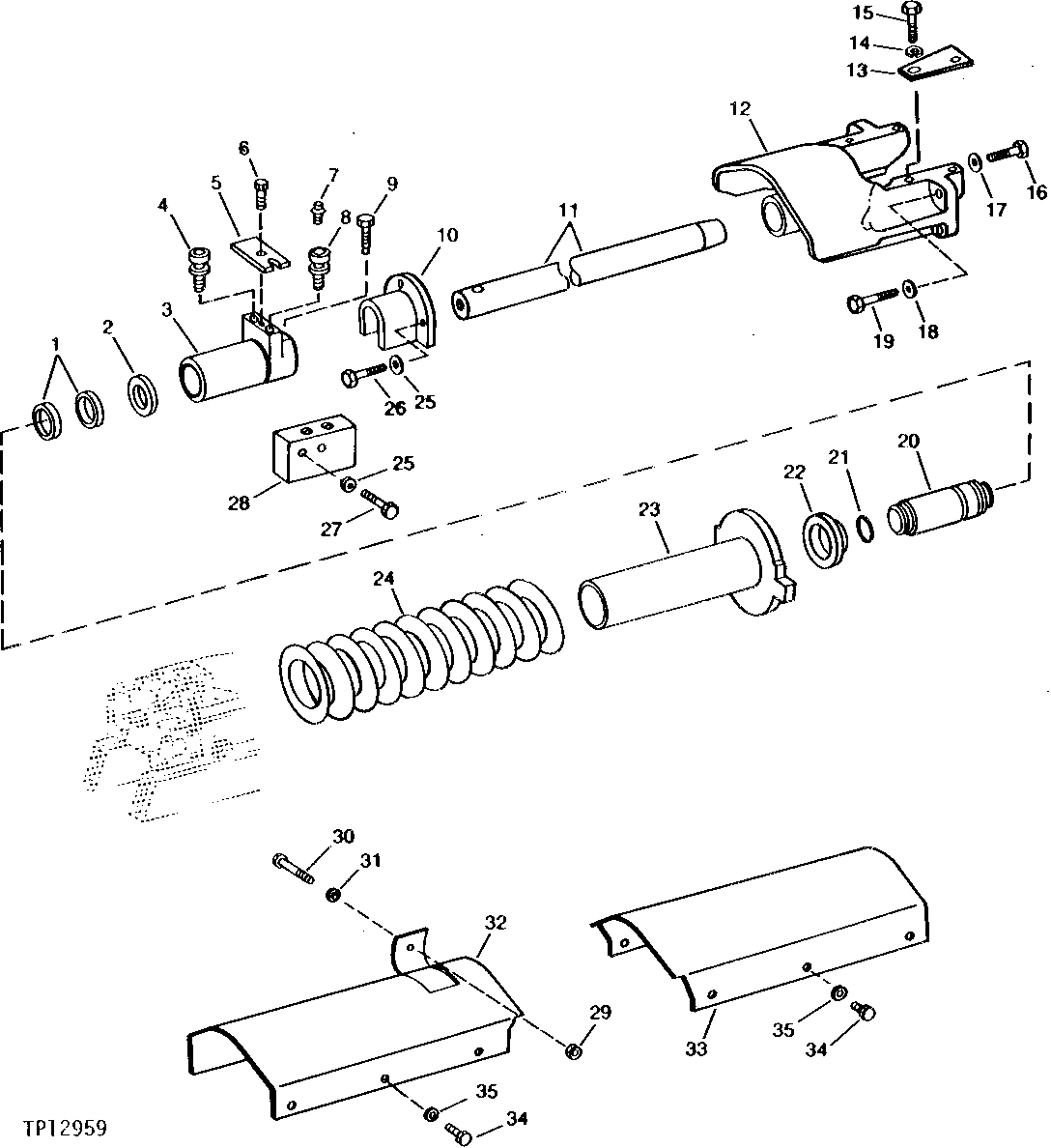

TRACK ADJUSTER (LOW GROUND PRESSURE TRACK) [01B18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T40416	2	WEAR RING	-
2	T47833	1	SEAL	-
3	AT81664	1	HYDRAULIC CYLINDER CAP	TRACK HEAD
4	T120720	1	Pressure Relief Valve	(SUB FOR T73203)
5	T73204	1	STRAP	-
6	19H3295	1	Screw	3/8" X 3/4"
7	JD7759	1	Lubrication Fitting	-
8	AT46412	1	BALL COCK VALVE	-
9	22H908	1	Set Screw	1/2" X 1/2", (SUB FOR H772R AND T105219) (ALSO ORDER R11066 AND 44M7070) (HEAD AND ROD MUST BE REDRILLED AND HEAD MUST BE RETAPPED)
10	T73207	1	STOP	-
11	T80878	1	ROD	(LOW GROUND PRESSURE) (48.56 INCHES)
11	T118348	1	ROD	(LONG TRACK - LOW GROUND PRESSURE) (34.59 INCHES)
12	T71604	1	YOKE	-
13	T47824	2	DEFLECTOR	-
14	12H301	4	Lock Washer	1/2"
15	19H2898	4	Cap Screw	1/2" X 1-1/4"
16	19H2411	1	Cap Screw	3/4" X 2-1/2"
17	B3627R	1	WASHER	-
18	R78019	4	Washer	(SUB FOR T21397)
19	19H2411	4	Cap Screw	3/4" X 2-1/2"
20	T73506	1	PISTON	-
21	R26282	1	O-Ring	-
22	T47828	1	SEAL	-
23	T82456	1	HOUSING	(SUB FOR T73505) (ALSO ORDER JD7797)
24	T184203	1	COMPRESSION SPRING	(SUB FOR T72375)
25	24M7240	7	Washer	13 X 25 X 3 MM
26	19H1815	3	Cap Screw	1/2" X 1-1/4"
27	19H2473	4	Cap Screw	HS, SAE 8, 1/2" X 1-3/4"
28	T73507	2	SPACER	-
29	T11234	1	Lock Nut	-
30	19H2633	1	Cap Screw	3/8" X 1-1/2"
31	24H1308	1	Washer	13/32" X 1" X 0.134"
32	AT82817	1	COVER	R.H. REAR
32	AT82818	1	COVER	L.H. REAR (NOT ILLUSTRATED)
33	T81359	1	COVER	FRONT
34	19H2472	12	Cap Screw	HS, SAE 8, 1/2" X 1"
35	24M7240	12	Washer	13 X 25 X 3 MM

TRACK ADJUSTER (LOW GROUND PRESSURE TRACK) [01B18]
