SUB FRAME FOR ALL HYDRAULIC DOZER [02L07]

Нет текстового описания

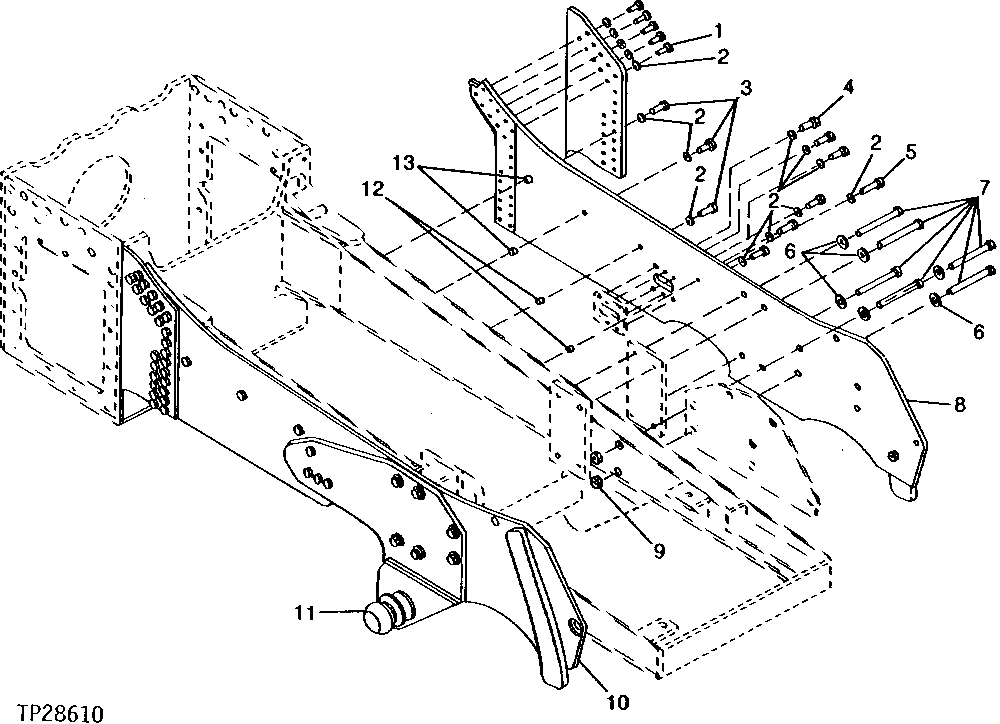

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2710	52	Cap Screw	5/8" X 1-3/4", (REAR BOLTING PLATE TO SIDE FRAMES)
2	24M7241	1	Washer	17 X 34 X 4 MM, (52 USED-REAR BOLTING PLATE TO SIDE FRAME SCREWS) (4 USED-SIDE FRAMES TO MAIN FRAME SCREWS- REAR TWO HOLES) (2 USED-SIDE FRAMES TO MAIN FRAME SCREWS-THIRD HOLE FROM REAR) (2 USED- SIDE FRAMES TO MAIN FRAME SCREWS- FOURTH HOLE FROM REAR) (12 USED-CENTER BOLTING PLATE TO SIDE FRAME SCREWS)
3	19H2599	6	Cap Screw	5/8" X 2-1/2", (4 USED-SIDE FRAMES TO MAIN FRAME-REAR TWO HOLES) (2 USED-SIDE FRAMES TO MAIN FRAME- THIRD HOLE FROM REAR)
4	19H2706	12	Cap Screw	5/8" X 2", (CENTER BOLTING PLATE TO SIDE FRAMES)
5	19H3208	2	Cap Screw	5/8" X 3", (SIDE FRAMES TO MAIN FRAME-FOURTH HOLE FROM REAR)
6	A11667	12	Washer	(8 USED-SIDE FRAMES TO PLATE TO BOLTING PLATE SCREWS) (4 USED-SIDE FRAME,PLATE,GRILLE HOUSING TO MAIN FRAME SCREWS)
7	19H3629	12	Cap Screw	7/8" X 7", (8 USED-SIDE FRAMES TO PLATE TO BOLTING PLATE) (4 USED-SIDE FRAME,PLATE,GRILLE HOUSING TO MAIN FRAME)
8	AT150670	1	FRAME	(STANDARD LEFT SIDE FRAME)
8	AT143159	1	FRAME	(LEFT SIDE FRAME LONG TRACK)
8	AT87338	1	FRAME	(LEFT)
9	14H1051	4	NUT	7/8", (SIDE FRAME,PLATE,GRILLE HOUSING TO MAIN FRAME SCREWS)
10	AT87337	1	FRAME	(RIGHT)
10	AT150668	1	FRAME	(STANDARD RIGHT SIDE FRAME)
10	AT143157	1	FRAME	(RIGHT SIDE FRAME LONG TRACK)
11	AT87346	1	Ball	(BALL PIVOT, MOUNTING ASSEMBLY)(INCLUDES (2) T84666 PLATES, (2) T84771 TRUNNION BALLS AND (1) T84754 SHAFT)
12	28H2499	4	Bushing	0.742" X 1.050" X 5/8", (2 USED-SIDE FRAMES TO MAIN FRAME SCREWS- THIRD HOLE FROM REAR-TACK WELD TO SIDE FRAME) (2 USED-SIDE FRAMES TO MAIN FRAME SCREWS- FOURTH HOLE FROM REAR-TACK WELD TO SIDE FRAME)
13	28H1885	4	Bushing	0.824" X 1.050" X 1/2", (PIPE SPACER) (SIDE FRAMES TO MAIN FRAME SCREWS-REAR TWO HOLES-TACK WELD TO SIDE FRAMES)
