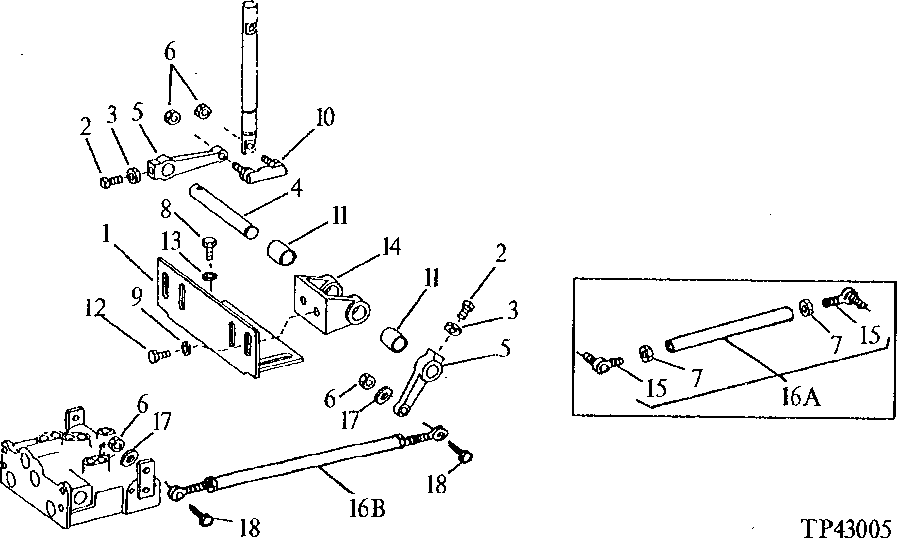

STEERING SHAFT LINKAGE (SERIAL NO. -731273) [01D23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T54216	1	BRACKET	(WITHOUT CAB)
1	T54218	1	BRACKET	(WITH CAB)
2	M3413T	4	SET SCREW	-
3	14H611	4	Nut	5/16"
4	T54220	1	SHAFT	R.H. (WITH CAB)
4	T54214	1	SHAFT	R.H. (WITHOUT CAB)
4	T54221	1	SHAFT	L.H. (WITH CAB)
4	T54215	1	SHAFT	L.H. (WITHOUT CAB)
5	T59895	4	ARM	(WITH CAB)
5	T61712	4	ARM	(WITHOUT CAB)
6	R11151	8	Lock Nut	-
7	14H882	2	Nut	5/16"
8	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1"
9	24H1682	4	Washer	13/32" X 7/8" X 0.120"
10	AT49560	2	TIE ROD ASSEMBLY	-
11	JD9962	4	Needle Bearing	-
12	19H1648	4	Cap Screw	3/8" X 3/4"
13	24H1311	2	Washer	13/32" X 1-1/4" X 0.220"
14	T50953	2	SUPPORT	-
15	AT46597	2	Ball Joint	-
16	AT53798	1	BALL JOINT	(COMPONENT OF AT53800)
16	14H1045	1	Nut	5/16", (COMPONENT OF AT53800)
16	14H882	1	Nut	5/16", (COMPONENT OF AT53800)
17	12H303	2	Lock Washer	5/16"
18	19H2477	2	CAP SCREW	5/16" X 1-1/4"
16A	-	2	Part 24	(SUB AT151186) (ALSO ORDER (2) 19H2477 AND (2) 12H303)
16B	AT151186	2	TIE ROD ASSEMBLY	(SUB FOR AT53800 AND AT143034) (ALSO ORDER (2) 19H2477 AND (2) 12H303)

STEERING SHAFT LINKAGE (SERIAL NO. -731273) [01D23]
