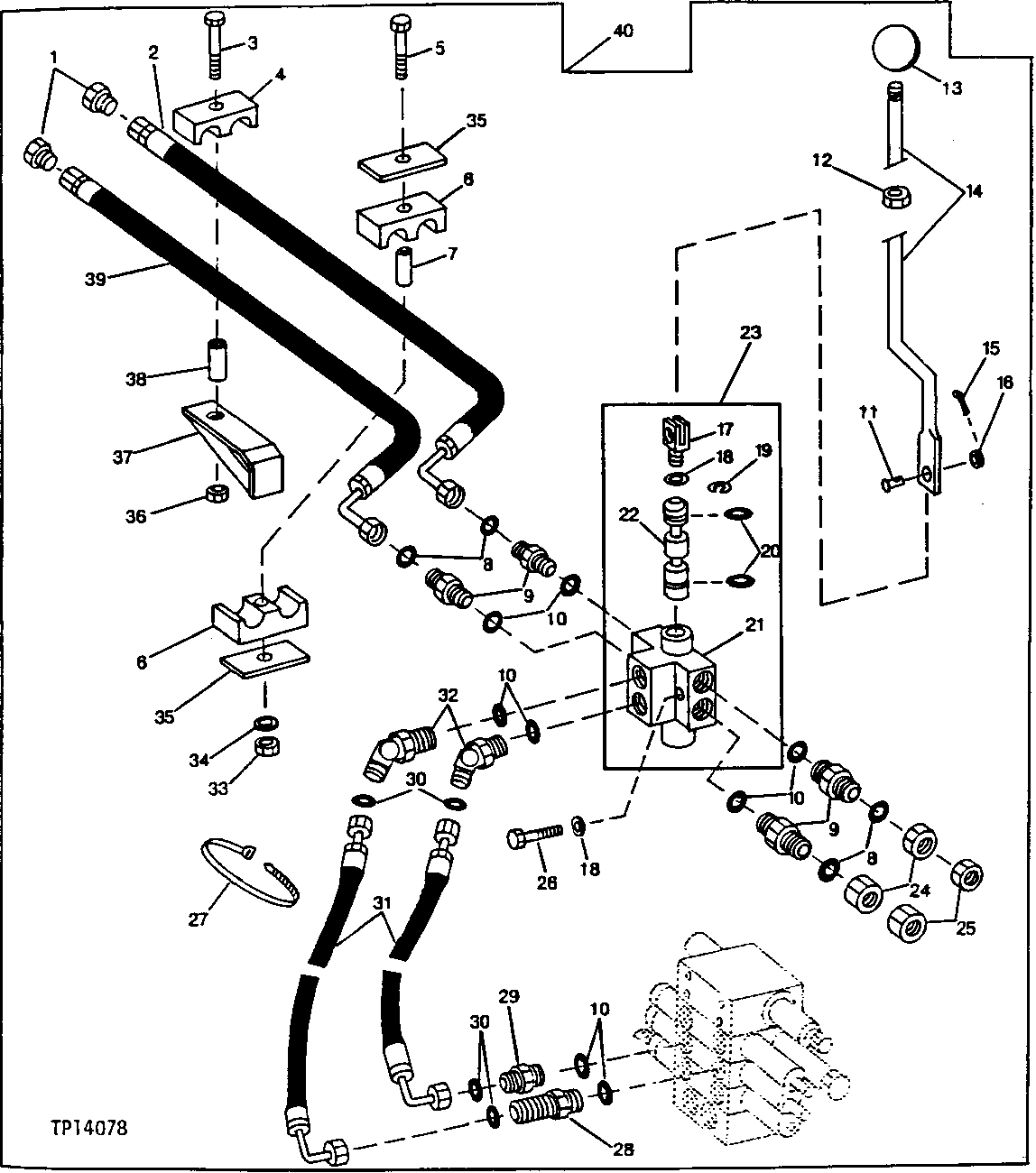

SELECTOR VALVE HYDRAULICS (TWO AND THREE-SPOOL) [03K08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T76557	2	FITTING	-
2	AT80608	1	HYDRAULIC HOSE - FABRICATE	1-1/16" X 1 321 MM (52") X 13/16"
3	19H1726	1	Cap Screw	3/8" X 2-1/4"
4	T52978	1	Clamp	-
5	19H2151	1	Cap Screw	1/4" X 3"
6	T74260	2	Half Clamp	-
7	28H2551	1	Spacer	0.423" X 0.675" X 1-1/8"
8	T77857	4	O-Ring	-
9	38H1175	4	Adapter Fitting	-
10	U12547	8	O-Ring	(SUB FOR (8) F3171R)
11	H26275	1	PIN FASTENER	-
12	R41439	1	Grommet	-
13	AP17808	1	Knob	-
14	T67451	1	EYEBOLT	-
15	11M7081	1	Cotter Pin	2.500 X 20 MM
16	24H1287	1	Washer	9/32" X 5/8" X 0.065"
17	T71766	1	YOKE	-
18	12H304	3	Lock Washer	3/8"
19	U11295	1	Snap Ring	-
20	T104783	2	O-Ring	(.103 INCH)
20	U11296	2	O-RING	(.139 INCH)
21	-	1	Part 22	(SUB AT73037)
22	-	1	Part 23	(SUB AT73037)
23	AT73037	1	SELECTIVE CONTROL VALVE	(WITH DETENT)
23	11H272	1	COTTER PIN	(COMPONENT OF AT73037)
24	38H1354	2	Tube Nut	-
25	38H1416	2	Fitting	(SUB FOR 38H1140)
26	19H2458	2	Cap Screw	3/8" X 3"
27	N189220	1	Tie Band	(SUB FOR AA21510)
28	38H1215	1	Adapter Fitting	-
29	38H1163	1	Adapter Fitting	-
30	T77858	4	O-Ring	-
31	AT80611	2	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 461 MM (57-1/2") X 1-3/16"
32	38H1048	2	Elbow Fitting	-
33	14H786	1	Nut	1/4"
34	12H302	1	Lock Washer	1/4"
35	R41489	1	STRAP	-
36	T11234	1	Lock Nut	-
37	AT48525	1	BRACKET	-
38	M65702	1	SPACER	-
39	AT80531	1	HYDRAULIC HOSE - FABRICATE	1-1/16" X 1 334 MM (52-1/2") X 13/16"
40	-	1	Part 42	(NO LONGER AVAILABLE) (SUB FOR AT80607)

SELECTOR VALVE HYDRAULICS (TWO AND THREE-SPOOL) [03K08]

Нет текстового описания
