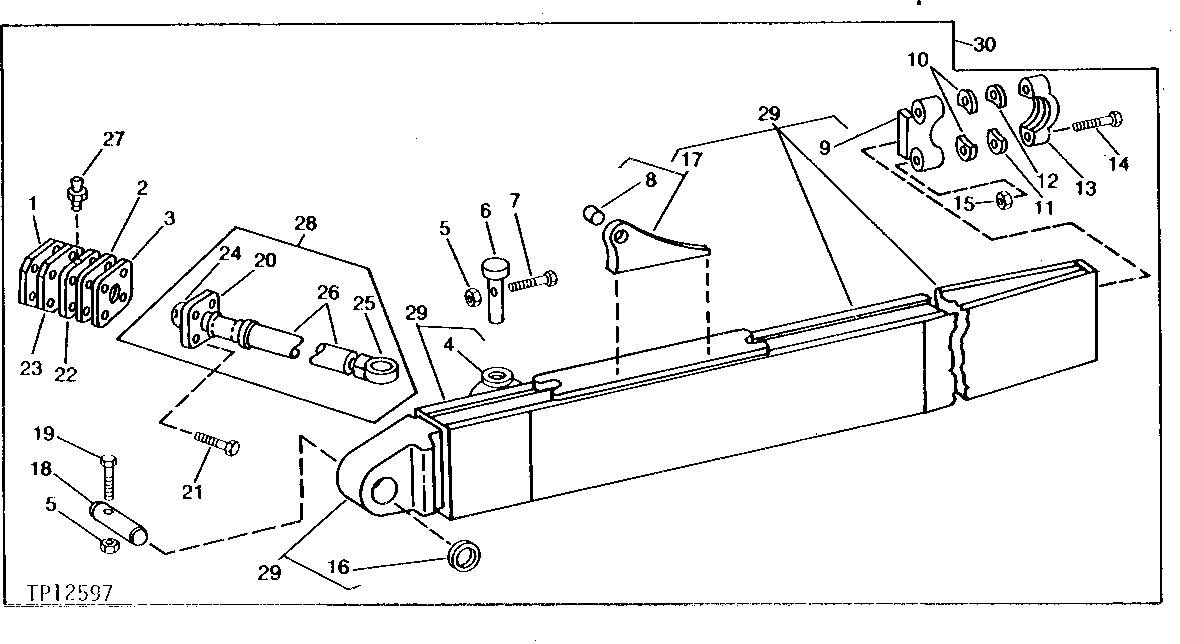

PUSH BEAMS AND STRUTS (WITHOUT NARROW GAUGE TRACK) [03H10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T49097	1	SHIM	3 MM (.120")
2	T154413	1	SHIM	(SUB FOR T49093) 1.52 MM (.060")
3	T154414	1	SHIM	(SUB FOR T49094) 0.91 MM (.036")
4	AT77521	2	PIVOT	L.H.
5	BP12214	4	Lock Nut	-
6	T78843	2	PIN FASTENER	-
7	19H3586	2	Cap Screw	HS, SAE 8, 1/2" X 4-1/4"
8	T25877	2	BUSHING	(USE WITH AT77525)
9	T49079	2	PIVOT	-
10	T58941	4	PLATE	-
11	T49100	1	Plate	0.91 MM (.036")
12	T49100	1	Plate	(SUB FOR T49099) 1.52 MM (.060")
13	T49101	2	CAP	-
14	08H4803	4	Bolt	HS, SAE 8, 1" X 6-3/4"
15	K40018	4	Lock Nut	-
16	T63050	2	BUSHING	-
17	AT77525	1	KIT	-
18	T78842	2	PIN FASTENER	-
19	19H3136	2	Cap Screw	HS, SAE 8, 1/2" X 5-3/4"
20	T48385	1	RETAINER	-
21	19H3105	8	Cap Screw	HS, SAE 8, 3/4" X 5"
22	T154432	2	SOCKET	(SUB FOR T49092)
23	T49096	1	SHIM	6.4 MM (.250")
24	T48384	1	END	(MARKED R75115)
25	T49083	1	END	-
26	-	1	Part 26	(SUB AT47672)
27	T162396	2	Lubrication Fitting	(SUB FOR JD7798) 1/2", STRAIGHT
28	AT47672	2	SUPPORT	-
29	AT172287	1	Beam	(SUB FOR AT80856) L.H.
29	AT80855	1	BEAM	R.H. (NOT ILLUSTRATED)
29	AT175169	1	Beam	(SUB FOR AT169354) (R.H.)
30	AT78685	1	KIT	-
