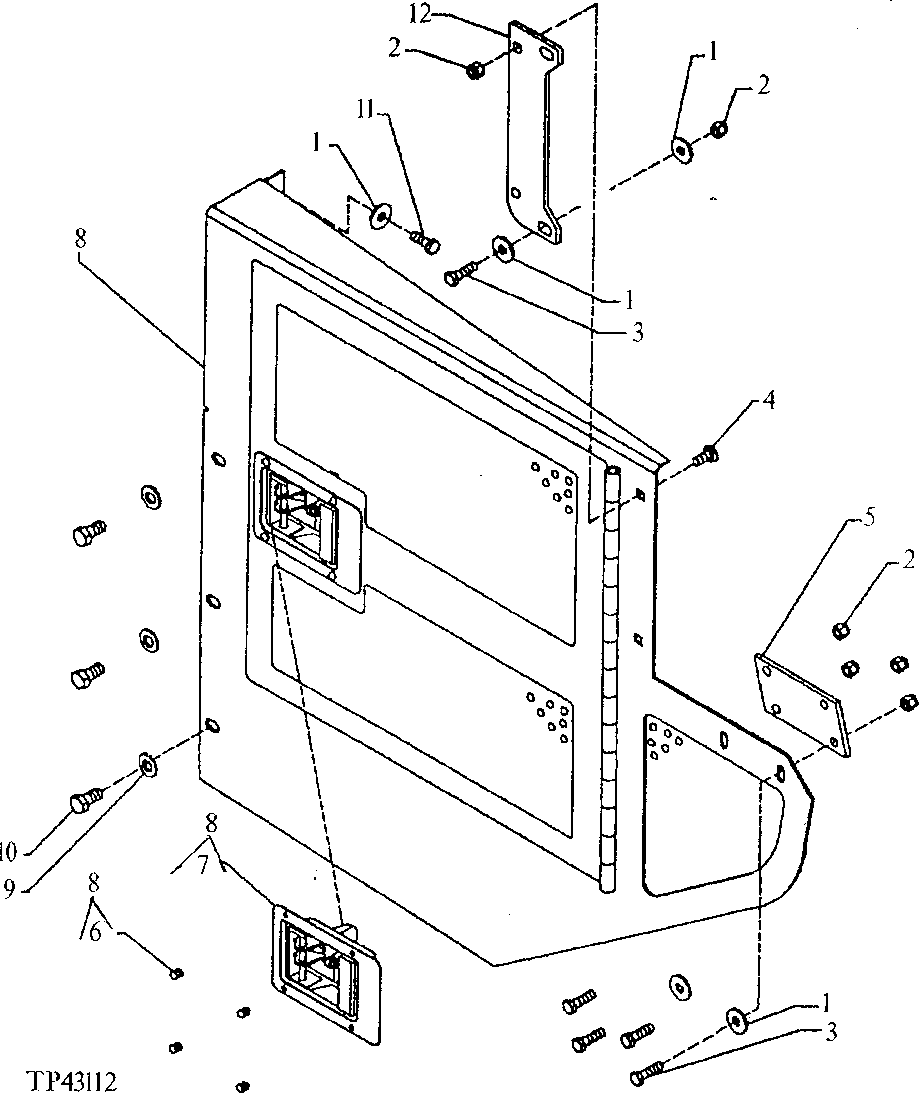

LONG TRACK AND LOW GROUND PRESSURE ENGINE SHIELD WITH DOORS [03E23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7296	16	Washer	10.500 X 30 X 2.500 MM, (4-PLATE TO ENGINE SHIELDS SCREWS-2 PER SIDE) (8-RIGHT AND LEFT MANIFOLDS TO RIGHT AND LEFT ENGINE SHIELDS SCREWS-4 PER SIDE)(4-RIGHT HAND AND LEFT HAND ENGINE SHIELD TO CENTER FRAME SCREWS-2 PER SIDE)
2	T11234	16	Lock Nut	(4-RIGHT AND LEFT BRACKETS TO RIGHT AND LEFT ENGINE SHIELDS-2 PER SIDE ON RD HEAD SQUARE NECK BOLTS)(4-PLATES TO ENGINE SHIELD-2 PER SIDE)(PLATES AND BRACKETS TO RIGHT AND LEFT MANIFOLD PLATES-4 PER SIDE)
3	19H3239	12	Cap Screw	3/8" X 1-1/4", (SUB FOR T64768) (8-PLATES AND BRACKETS TO RIGHT AND LEFT MANIFOLD PLATES-4 PER SIDE)(4-RIGHT HAND AND LEFT HAND SHIELD TO CENTER FRAME)
4	03H1765	4	Bolt	3/8" X 3/4"
5	T79455	2	PLATE	-
6	M68628	4	Rivet	-
7	AT221696	2	Latch	RIGHT HAND, (SUB FOR AT115875)
8	AT140448	1	SHIELD	(RIGHT HAND SHOWN)
8	AT140446	1	SHIELD	(LEFT HAND)
9	24H1111	6	Washer	17/32" X 1-1/16" X 0.090"
10	19H2472	6	Cap Screw	1/2" X 1"
11	19H2676	4	Cap Screw	3/8" X 1"
12	T146627	2	STRAP	(INSIDE SIDE SHIELD TO MANIFOLD PLATE)
