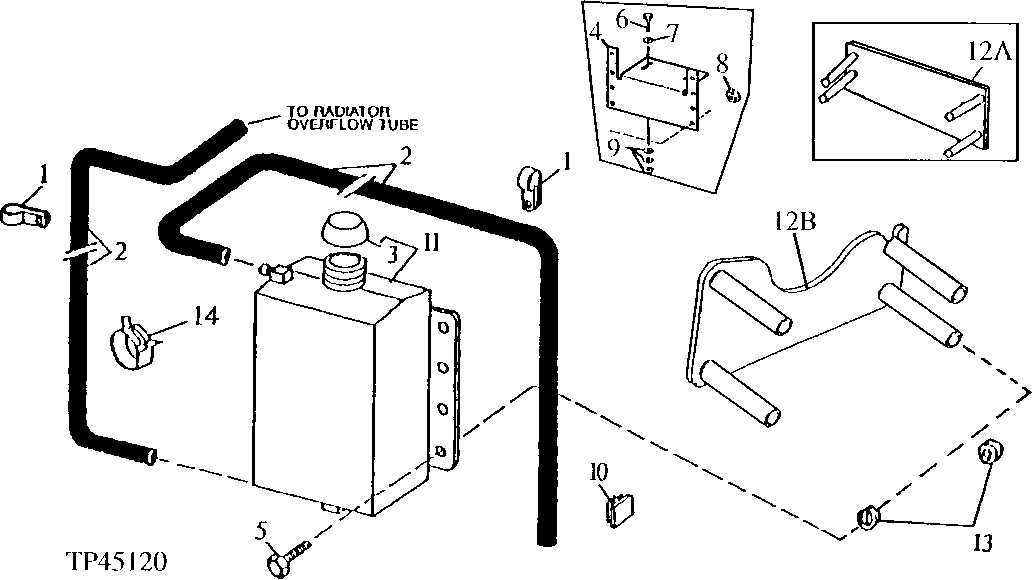

ENGINE COOLANT RECOVERY SYSTEM (SERIAL NO. 745807- ) [02F25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TY22462	1	Clamp	(HOSE CLAMP) (OVERFLOW HOSE TO FITTING ON BOTTOM OF RECOVERY BOTTLE) (SUB FOR AR48236)
1	R56101	1	Clip	(CLIP) (OVERFLOW HOSE TO TUBE AT FILLER NECK)
1	T13814	2	Clamp	-
2	-	2	Part 4	(MAKE FROM T119816 BULK MATERIAL, CUT TO LENGTH)
3	AT106413	1	Cap	-
4	-	1	Part 6	(T120711 NO LONGER AVAILABLE) (SUB (4) 28H2099, (8) 24M7239, (4) 19H2679 AND 14H785) (ALSO ORDER T84605 INSTALLATION INSTRUCTION)
5	19H1227	4	Cap Screw	1/4" X 1/2", (LOW GROUND PRESSURE AND LONG TRACK)
5	19H1914	4	Cap Screw	1/4" X 1", (STANDARD AND NARROW GAGE)
6	19H1648	2	Cap Screw	HS, SAE 8, 3/8" X 3/4" (LOW GROUND PRESSURE AND LONG TRACK)
6	19H2633	2	Cap Screw	3/8" X 1-1/2", (STANDARD AND NARROW GAGE)
7	24M7233	2	WASHER	10.700 X 21 X 2.500 MM
8	14H786	4	Nut	1/4", (STANDARD AND NARROW GAGE)
8	12H304	4	Lock Washer	3/8", (LOW GROUND PRESSURE AND LONG TRACK)
8	24H1286	8	Washer	9/32" X 1/2" X 1/16"
9	T29342	6	Washer	-
10	T59951	2	CLIP	-
11	AT162597	1	Tank	(SUB FOR AT104021)
13	24M7239	4	Washer	10.700 X 21 X 2.500 MM
14	R56101	1	Clip	-
12A	-	1	Part 18	(SUB AT171624) (SUB FOR AT160616)
12B	AT171624	1	PLATE	(SUB FOR AT160616)

ENGINE COOLANT RECOVERY SYSTEM (SERIAL NO. 745807- ) [02F25]
