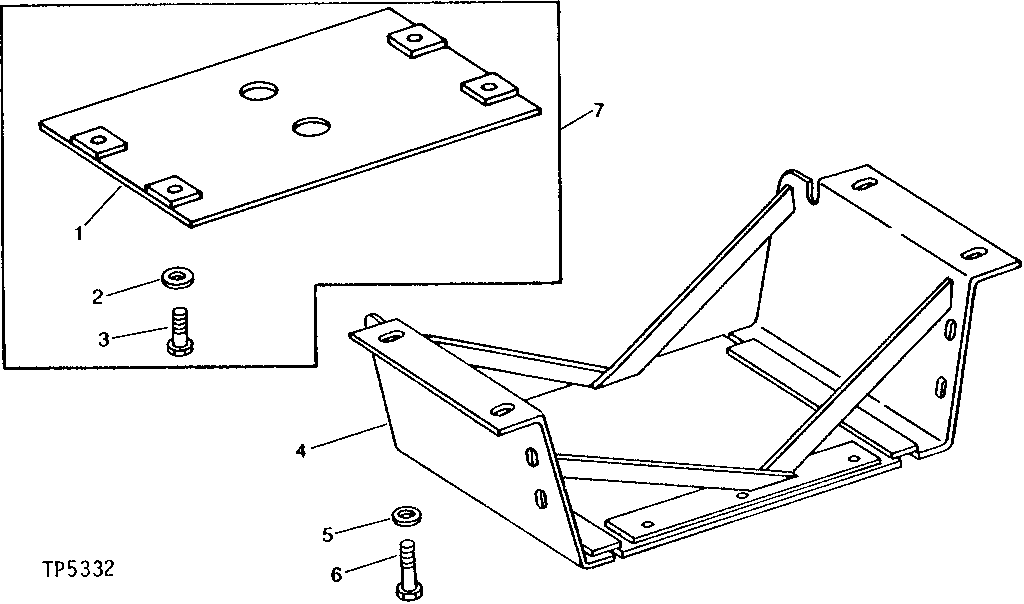

CENTER GUARD AND SADDLE BOTTOM GUARD (FORESTRY INSTALLATION) [02L17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT62121	1	GUARD	-
2	T29342	4	Washer	(SUB FOR T21228, THIS APPLICATION)
3	19H2898	4	Cap Screw	HS, SAE 8, 1/2" X 1-1/4"
4	AT62115	1	GUARD	-
4	AT62115	1	GUARD	(1.6M (64") GAUGE AND LOW GROUND PRESSURE TRACK)
5	T119912	4	Washer	(SUB FOR T19584) (SUB FOR 24M7241, THIS APPLICATION)
5	T119912	4	Washer	(SUB FOR T19584) (SUB FOR 24M7241, THIS APPLICATION) (1.6M (64") GAUGE AND LOW GROUND PRESSURE TRACK)
6	19H2710	4	Cap Screw	HS, SAE 8, 5/8" X 1-3/4"
6	19H2710	4	Cap Screw	HS, SAE 8, 5/8" X 1-3/4" (1.6M (64") GAUGE AND LOW GROUND PRESSURE TRACK)
7	AT71536	1	GUARD	(ALSO INCLUDES 4 TAPPED BLOCKS)

CENTER GUARD AND SADDLE BOTTOM GUARD (FORESTRY INSTALLATION) [02L17]
