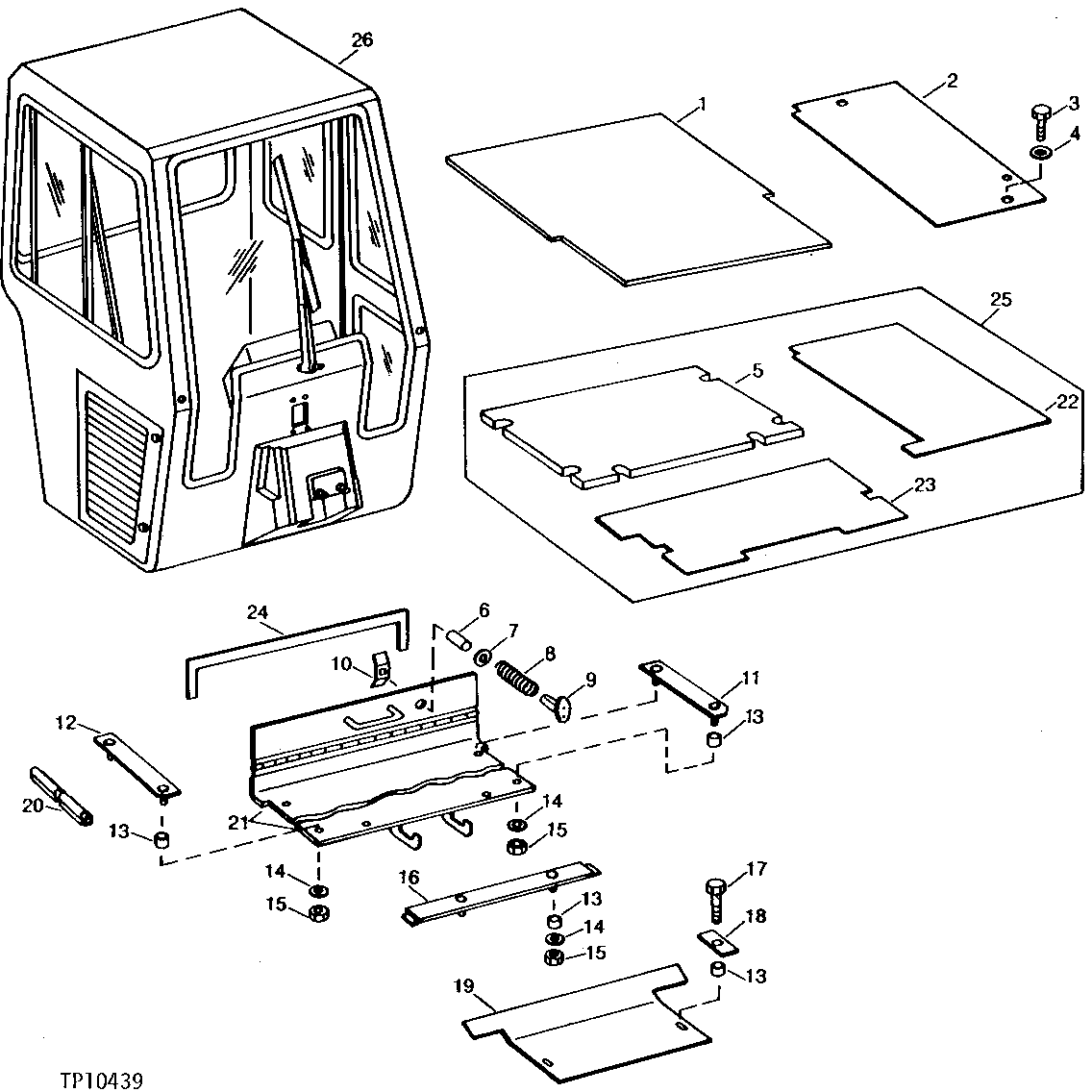

CAB HEADLINER, FLOOR PLATES, AND FLOOR MAT (CAB WITH PRESSURIZER) [03B16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T62564	1	HEADLINER	-
2	AT74498	1	PLATE	-
2	14H631	1	Nut	(PLATE TO CAB)
3	19H1648	2	Cap Screw	3/8" X 3/4"
4	24H1308	2	Washer	13/32" X 1" X 0.134"
5	T148142	1	MAT	(SUB FOR T76295) CENTER,
6	34H266	1	Spring Pin	5/32" X 1"
7	24H1392	1	Washer	25/32" X 1-3/8" X 0.120"
8	T14057	1	SPRING	-
9	T31501	1	KNOB	-
10	T47585	1	CLAMP	-
11	AT74511	1	STRIP	L.H.
12	AT74510	1	STRIP	R.H.
13	28H1878	8	SPACER	0.493" X 0.675" X 7/16"
14	24M7233	6	WASHER	10.700 X 21 X 2.500 MM
15	14H1076	6	Nut	3/8"
16	AT74512	1	STRIP	-
17	19H3239	2	Cap Screw	3/8" X 1-1/4"
18	T76297	2	STRAP	-
19	AT80845	1	FLOOR	-
19	T59288	1	RETAINER	(TO FLOORBOARD)
20	-	1	Part 22	(MAKE FROM T68144 BULK MATERIAL, CUT TO LENGTH)
21	AT74508	1	DOOR	-
22	T148143	1	MAT	(SUB FOR T76296) LEFT
23	T148144	1	MAT	(SUB FOR T76294)
24	-	1	Part 26	(MAKE FROM T66161 BULK MATERIAL, CUT TO LENGTH)
25	-	1	Part 27	(SUB T148144, T148142 AND T148143) (AT74513 NO LONGER AVAILABLE)
26	-	1	Part 28	(NO LONGER AVAILABLE) (SUB FOR AT74493)

CAB HEADLINER, FLOOR PLATES, AND FLOOR MAT (CAB WITH PRESSURIZER) [03B16]

Нет текстового описания
