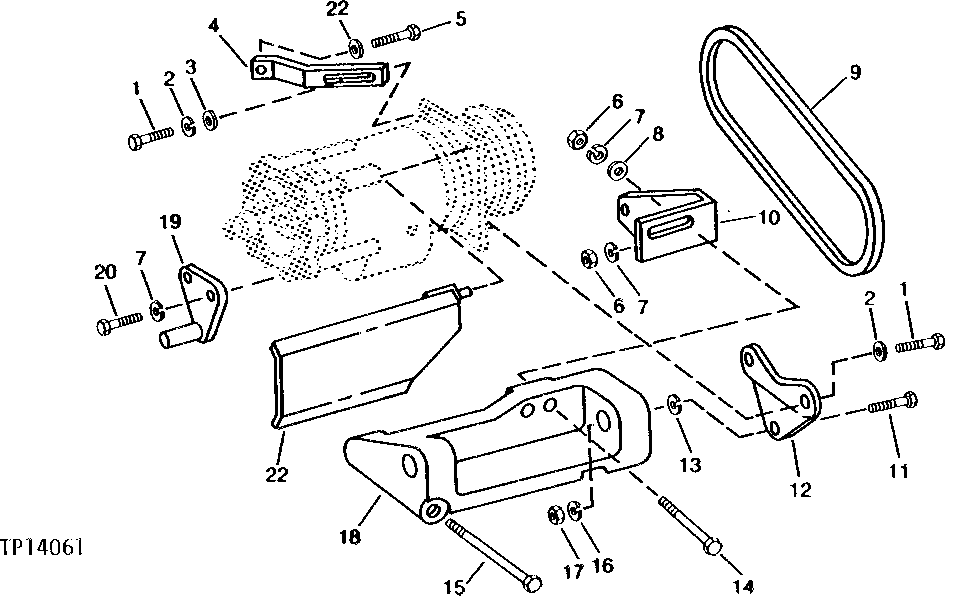

AIR CONDITIONING COMPRESSOR MOUNTING BRACKETS (SERIAL NO. -791559) [03D21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7513	3	Cap Screw	M8 X 30, (2-FRONT BRACKET TO COMPRESSOR) (ADJUSTING STRAP TO COMPRESSOR)
2	12H303	3	Lock Washer	5/16"
3	24M7036	1	Washer	9 X 16 X 1.600 MM
4	T69438	1	STRAP	-
4	R52516	1	Bushing	(SUB FOR E47368) (BETWEEN COMPRESSOR AND ADJUSTING STRAP)
4	R57696	3	Washer	(2-EITHER SIDE OF ADJUSTING STRAP-COMPRESSOR END) (ON ADJUSTING STRAP ANCHORING CAPSCREW ON WATER PUMP)
5	19H3217	1	Cap Screw	3/8" X 1-3/4", (WATER PUMP TO ADJUSTING STRAP-APPROXIMATELY THE 10 O'CLOCK POSITION)
6	14H1076	4	Nut	3/8"
7	12H304	4	Lock Washer	3/8"
8	24H1308	2	Washer	13/32" X 1" X 0.134"
9	R69955	1	V-BELT	(SUB FOR T68321)
10	T53319	1	BRACKET	-
11	19H2735	1	Cap Screw	HS, SAE 8, 1/2" X 2"
12	R45981	1	BRACKET	FRONT
13	24H1162	1	Washer	17/32" X 1-1/4" X 0.060"
14	19H2633	2	Cap Screw	3/8" X 1-1/2"
15	19H3274	1	Cap Screw	3/8" X 7"
16	12H301	1	Lock Washer	1/2"
17	14H1040	1	Nut	1/2"
18	T53318	1	SUPPORT	-
19	AR77342	1	PIN	REAR WITH PIN
20	19M7168	2	Cap Screw	M10 X 30
21	R42729	1	Washer	-
22	AT68965	1	GUARD	-

AIR CONDITIONING COMPRESSOR MOUNTING BRACKETS (SERIAL NO. -791559) [03D21]
