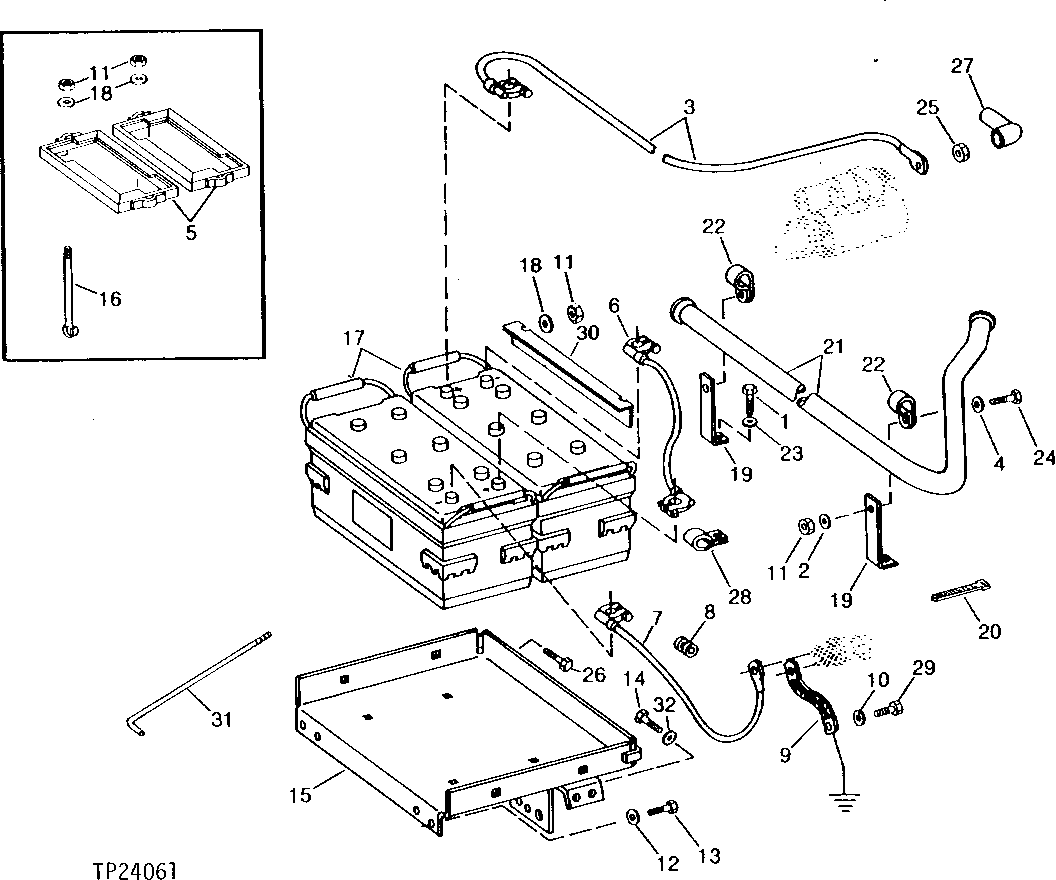

310-MINUTE RESERVE CAPACITY BATTERIES WITH CABLES AND MOUNTING [02I14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1648	8	Cap Screw	3/8" X 3/4"
2	24H1308	2	Washer	13/32" X 1" X 0.134"
3	AT72173	1	BATTERY CABLE	(SUB FOR AT72163)
4	24H1308	2	Washer	13/32" X 1" X 0.134"
5	AT59763	2	FRAME	-
6	AT72164	1	BATTERY CABLE	-
7	AT74430	1	BATTERY CABLE	-
8	R41439	1	Grommet	-
9	AT38449	1	Ground Cable	-
10	24H1308	1	Washer	13/32" X 1" X 0.134", (GROUND STRAP TO MAIN FRAME BOSS SCREW)
11	14H1076	6	Nut	3/8"
11	14H785	6	Nut	5/16"
12	24M7240	4	Washer	13 X 25 X 3 MM
13	19H3472	4	Cap Screw	5/8" X 9-3/4"
14	19H2898	4	Cap Screw	1/2" X 1-1/4", (FRONT BRACKETS ON BATTERY SUPPORT TO RIGHT AND LEFT CONSOLE AND BATTERY SUPPORTS - TOP RIGHT SCREW WITH GROUND STRAP)
15	AT46393	1	SUPPORT	-
15	AT112974	1	SUPPORT	-
16	T47788	4	BOLT	-
17	TY6128	2	Dry Charged Battery	-
17	TY21754	2	DRY CHARGED BATTERY	(SUB FOR AU42915 AND TY6105) DRY AND CHARGED, 12-VOLT, 310-MINUTE RESERVE CAPACITY AT 25 AMPERES
18	24H1308	4	Washer	13/32" X 1" X 0.134"
19	T34530	2	ANGLE	-
20	R76477	1	Tie Band	(SUB FOR T44946 AND A49232) (SUB FOR H77698, THIS APPLICATION)
21	T74407	1	TUBE	(SUB FOR T74406)
22	T35699	2	Clamp	-
23	24H1308	1	Washer	13/32" X 1" X 0.134"
24	19H3239	2	Cap Screw	3/8" X 1-1/4"
25	14H826	1	Nut	1/2"
26	19H1815	1	Cap Screw	1/2" X 1-1/4"
27	T74405	2	BOOT	-
28	R72659	1	Clamp	(SUB FOR AH83545)
29	19H1648	1	Cap Screw	HS, SAE 8, 3/8" X 3/4" (GROUND STRAP TO MAIN FRAME BOSS)
30	T121288	2	Angle	(SUB FOR T79470, THIS APPLICATION)
31	T22571	4	Bolt	(SUB FOR T79471, THIS APPLICATION) (SUB FOR E58231)
32	24M7207	4	Washer	8.400 X 24 X 2 MM, (FRONT BRACKETS ON BATTERY SUPPORT TO RIGHT AND LEFT CONSOLE AND BATTERY SUPPORTS - TOP RIGHT SCREW WITH GROUND STRAP)

310-MINUTE RESERVE CAPACITY BATTERIES WITH CABLES AND MOUNTING [02I14]

Нет текстового описания
