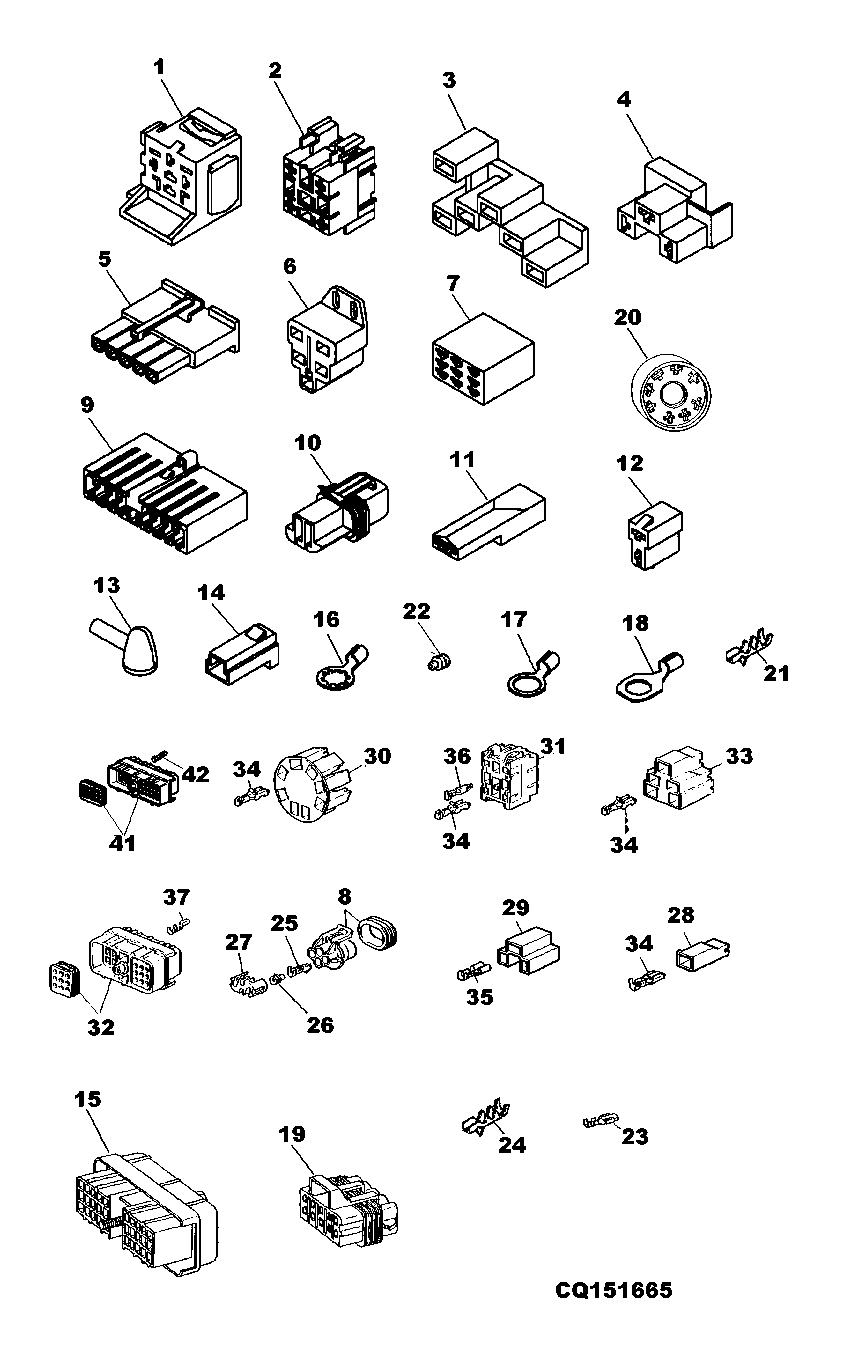

TERMINAIS E CONECTORES ELÉTRICOS

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE68327	1	Relay	-
2	57M7385	1	Elec. Connector Housing	-
3	E64911	1	Connector	-
4	CQ09403	1	Connector	-
5	57M7472	1	Electrical Connector Assy	-
6	57M7624	1	Electrical Connector Assy	-
7	M117518	1	Elec. Connector Terminal	-
8	57M7349	1	Elec. Connector Accessory	-
9	57M7472	1	Electrical Connector Assy	-
10	RE42192	1	Connector	-
11	CQ22886	1	CONECTOR	-
12	CQ10886	1	Connector	-
13	R74993	1	Boot	-
14	T28583	1	Elec. Connector Housing	-
15	RE41949	1	Electrical Connector Assy	-
16	57M7557	1	Elec. Connector Terminal	TK=1,5MM
17	57M7564	1	Elec. Connector Terminal	TK=1,0MM
18	57M7572	1	Elec. Connector Terminal	TK=2,5MM
19	57M7262	1	Elec. Connector Housing	-
20	RE46736	1	Electrical Connector Assy	(ALSO ORDER (8) 57M7429)
21	R104846	1	Elec. Connector Terminal	TK=1,0MM
22	57M7258	1	Elec. Connector Seal	-
23	57M7511	1	Elec. Connector Terminal	OD 0,5 - 0,75MM
24	CQ22885	1	TERMINAL	-
25	R104846	1	Elec. Connector Terminal	TK=1,0MM
26	57M7258	1	Elec. Connector Seal	-
27	57M7347	1	Elec. Connector Accessory	-
28	57M7170	1	Elec. Connector Housing	-
29	57M7064	1	Elec. Connector Housing	-
30	57M7842	1	Electrical Connector Assy	-
31	57M7363	1	Elec. Connector Accessory	PRETO, NEGRO, BLACK
32	57M7253	1	Elec. Connector Housing	-
33	57M7624	1	Electrical Connector Assy	-
34	57M7089	1	Elec. Connector Terminal	TK=1,5MM
35	57M7103	1	Elec. Connector Terminal	TK=1,5MM
36	57M7229	1	Elec. Connector Terminal	TK=1,0MM
37	R104701	1	Elec. Connector Terminal	TK=1,0MM 2/2,5
38	57M7316	1	Elec.Connect Locking Device	-
39	57M7292	1	Elec. Connector Seal	-
40	57M7290	1	Elec. Connector Accessory	-
41	57M7253	1	Elec. Connector Housing	-
42	R104701	1	Elec. Connector Terminal	TK=1,0MM 2/2,5
-	57M7341	1	Connector	TK=6,0MM
-	57M7041	1	Elec. Connector Terminal	TK=2,5MM
-	57M7104	1	Elec. Connector Terminal	TK=6,0MM
-	57M7106	1	Elec. Connector Terminal	TK=4,0MM
-	57M7384	1	Elec. Connector Housing	VERMELHO, ROJO, RED
-	57M7385	1	Elec. Connector Housing	AMARELO, AMARILLO, YELLOW
-	57M7429	1	Elec. Connector Terminal	OD 1,00 - 1,5MM
-	57M7511	1	Elec. Connector Terminal	OD 0,5 - 0,75MM
-	57M7498	1	Elec. Connector Terminal	TK=2,5MM
-	U46662	1	Elec. Connector Terminal	-
