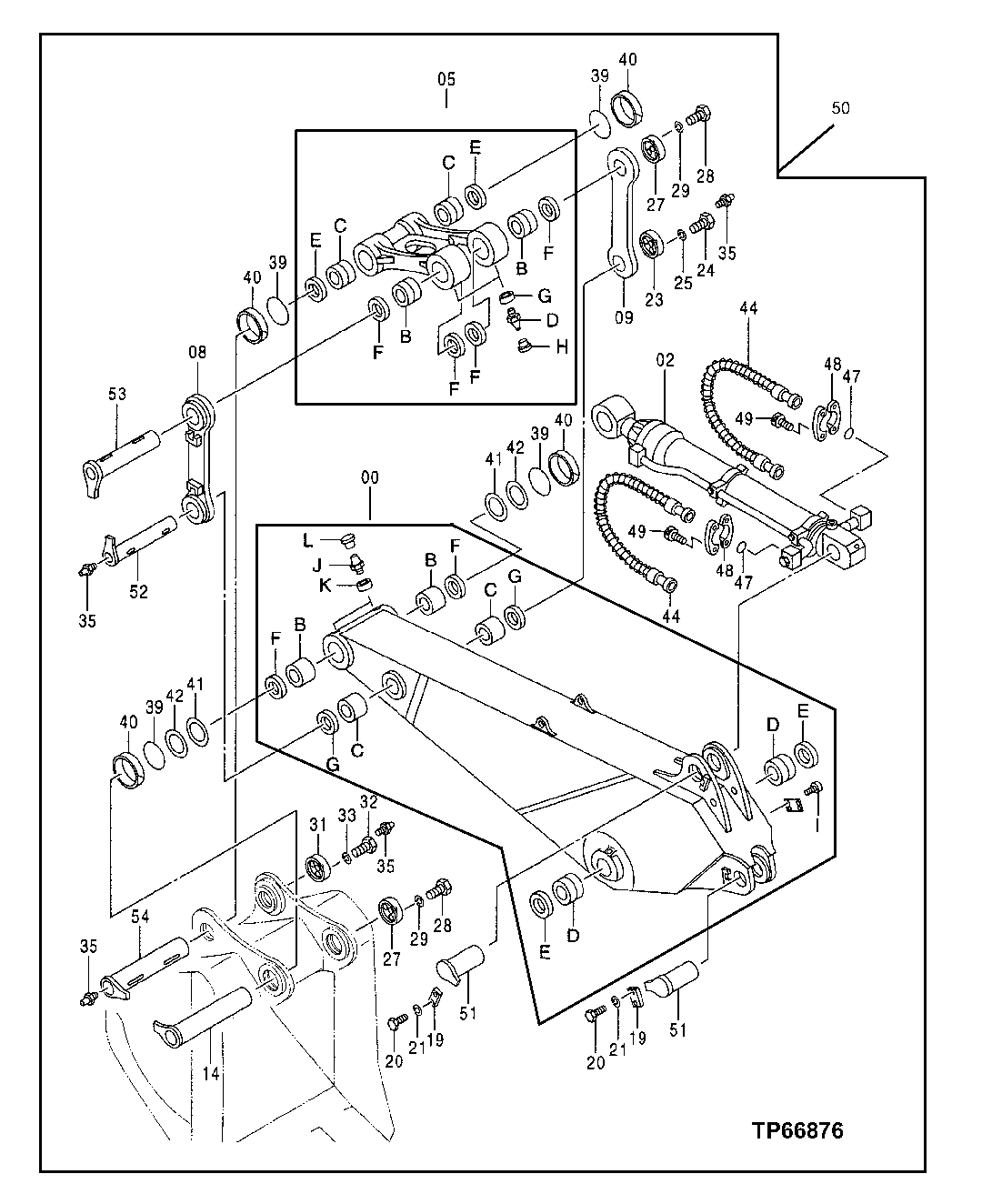

MASS EXCAVATING ARM ASSEMBLY (2.95 M)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9148351	1	Lift Arm	(SUB FOR TH9148351)
2	4360555	1	Hydraulic Cylinder	(SUB FOR TH4360555)
5	9135251	1	Link	(SUB FOR TH9135251)
8	8065547	1	Link	(SUB FOR TH8065547)
9	8065548	1	Link	(SUB FOR TH8065548)
14	8065105	1	Pin Fastener	(SUB FOR TH8065105)
19	4122729	2	Strap	(SUB FOR AT131696)
20	19M7950	4	Cap Screw	M20 X 45
21	12M7070	4	Lock Washer	20 mm
23	3015951	1	Stop	(SUB FOR TH3015951)
24	J241645	3	Bolt	(SUB FOR THM111645 OR M111645)
25	12H294	3	Lock Washer	5/8"
27	4246611	2	Stop	(SUB FOR TH4246611)
28	19M7950	6	Cap Screw	M20 X 45
29	12M7070	6	Lock Washer	20 mm
31	4251211	1	Stop	(SUB FOR TH4251211)
32	19M7950	3	Cap Screw	M20 X 45
33	12M7070	3	Lock Washer	20 mm
35	TH100074	4	Lubrication Fitting	-
39	4247424	4	O-Ring	(SUB FOR TH4247424)
40	4252730	4	Ring	(SUB FOR TH4252730)
41	4386485	2	Thrust Washer	(SUB FOR TH4386485)
42	4386486	2	Thrust Washer	(SUB FOR TH4386486)
44	4364317	2	Hydraulic Hose	(SUB FOR TH4364317)
47	T72216	2	O-Ring	37.694 X 3.531 mm (1-31/64" X 0.139")
48	AT131685	4	Flange Fitting	-
49	19M8734	8	Screw	M14 X 45
50	AT188515	1	Arm	WHOLEGOODS (ASSEMBLY INCLUDES ARM, BUCKET CYLINDER, HOSES AND LINKAGE) (USE WITH MASS EXCAVATING BOOM) (DOES NOT INCLUDE BUCKET)
51	8067795	2	Pin Fastener	(SUB FOR TH8067795)
52	8067798	1	Pin Fastener	(SUB FOR TH8067798)
53	8085461	1	Pin Fastener	(SUB FOR TH8067801 AND 8067801)
54	8069226	1	Pin Fastener	(SUB FOR TH8069226)
0B	3074245	2	Bushing	(SUB FOR TH3074245)
0C	4129729	2	Bushing	(SUB FOR TH4129729)
0D	4218719	2	Bushing	(SUB FOR TH4218719)
0E	4251766	2	Seal	(SUB FOR TH4251766)
0F	4251753	2	Seal	(SUB FOR TH4251753)
0G	4251212	2	Seal	(SUB FOR AT202303)
0I	37H99	4	Screw	0.100" X 1/4"
0J	TH100074	2	Lubrication Fitting	-
0K	4130686	2	Bushing	(SUB FOR AT217082)
0L	4105912	2	Cap	(SUB FOR AT217081)
5B	4234708	2	Bushing	(SUB FOR TH4234708)
5C	4281149	2	Bushing	(SUB FOR TH4281149)
5D	TH100074	2	Lubrication Fitting	-
5E	4251767	2	Seal	(SUB FOR TH4251767)
5F	4251753	4	Seal	(SUB FOR TH4251753)
5G	4130686	2	Bushing	(SUB FOR AT217082)
5H	4105912	2	Cap	(SUB FOR AT217081)

MASS EXCAVATING ARM ASSEMBLY (2.95 M)
