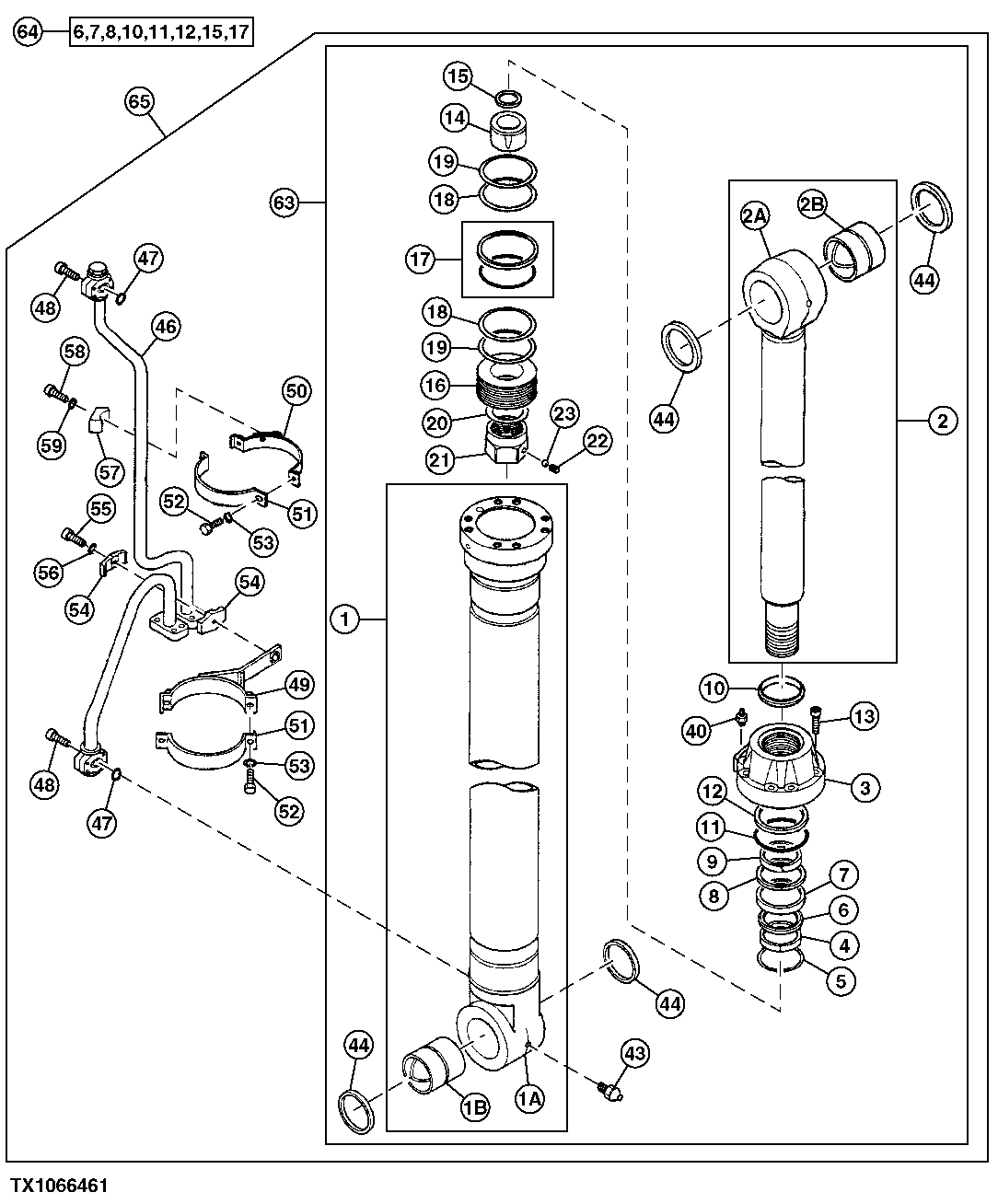

HYDRAULIC BOOM CYLINDER, LEFT

HYDRAULIC BOOM CYLINDER, LEFT

HYDRAULIC BOOM CYLINDER, LEFT

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

HYDRAULIC BOOM CYLINDER, LEFT

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4391318	1	Hydraulic Cylinder Barrel	-
1	-	1	Part 4	PG201417 NLA, ORDER 4391318, REMAN
2	4391319	1	Rod	-
2	-	1	Part 8	PG201419 NLA, ORDER 4391319, REMAN
3	0645004	1	Hydr. Cylinder Rod Guide	-
4	0379806	1	Bushing	-
5	0191415	1	Snap Ring	-
6	0645011	1	Ring	SUB FOR 0417405 OR 4S01020
7	0977904	1	Packing	SUB FOR 4094949, THIS APPLICATION
8	0242505	1	Back-Up Ring	-
9	0417406	1	Ring	SUB FOR 4S01015
10	0977905	1	Ring	SUB FOR 4438196
11	AT122160	1	O-Ring	SUB FOR A811190
12	0257007	1	Ring	SUB FOR 4S00084
13	4104472	8	Bolt	-
14	0702502	1	Bushing	-
15	0645006	1	Seal	SUB FOR 4S01018
16	0702503	1	Piston	-
17	0257010	1	Ring	SUB FOR 4S00085
18	0645008	2	Ring	SUB FOR 4S00856
19	4199817	2	Ring	SUB FOR 4S00098
20	0379813	1	Shim	-
21	0379814	1	Nut	-
22	0379815	1	Set Screw	-
23	0109124	1	Ball	-
40	0643016	1	Bleed Valve	-
43	0380010	1	Lubrication Fitting	-
44	4251767	4	Seal	-
45	-	1	Part 33	SUB TH0906001; ALSO ORDER TH0906002 AND (8) 19M8734; 0498101 NO LONGER AVAILABLE; UNITS BUILT BEFORE JANUARY 2003
45	TH0906001	1	Line	UNITS BUILT JANUARY 2003 AND AFTER; 0906001 NLA
46	-	1	Part 35	UNITS BUILT BEFORE JANUARY 2003, SUB TH0906002; ALSO ORDER TH0906001 AND (8) 19M8734; 0444902 NLA
46	TH0906002	1	Line	UNITS BUILT JANUARY 2003 AND AFTER, 0906002 NLA
47	AT264254	2	O-Ring	SUB FOR 955612
48	0171719	8	Cap Screw	USE WITH 0498101 AND 0444902; UNITS BUILT BEFORE JANUARY 2003
48	19M8734	8	Screw	M14 X 45, USE WITH TH0906001 AND TH0906002; UNITS BUILT JANUARY 2003 AND AFTER, SUB FOR 0158883
49	0379703	1	Clamp	-
50	0379819	1	Clamp	-
51	0379820	2	Clamp	-
52	19M7550	4	Cap Screw	M10 X 35, SUB FOR 0408815
53	12M7066	4	Lock Washer	10 mm, SUB FOR 0325913
54	0379821J	2	Half Clamp	SUB FOR 0379821
55	0417614	1	Bolt	-
56	0168014	1	Spring Washer	-
57	0972307	1	Clamp	SUB FOR 0353016 OR 0353016J
58	19M4789	1	Cap Screw	M14 X 80, SUB FOR 0254312
59	12H317	1	Lock Washer	9/16", SUB FOR A590914
60	0902202	1	Packing	NOT ILLUSTRATED
61	A811150	1	O-Ring	NOT ILLUSTRATED
63	4391320JEX	1	Hydraulic Cylinder Reman	REMANUFACTURED, SUB FOR 4391320
64	-	1	Part 54	SUB 4660036; 4438684 NLA
64	4660036	1	Seal Kit	ALSO ORDER 0902204 AND 0902202
65	4331076	1	Cylinder	-
66	0902202	1	Packing	SUB FOR 4614814; ALSO ORDER 0902204
66	0902204	1	O-Ring	SUB FOR 4614814; ALSO ORDER 0902202
66	4614814	1	Seal Kit	NLA; ORDER 0902204 AND 0902202
1A	-	1	Part 2	-
1B	4609098	1	Bushing	SUB FOR 0702501
2A	-	1	Part 6	-
2B	4660858	1	Bushing	SUB FOR 0444801
