Открытый узел

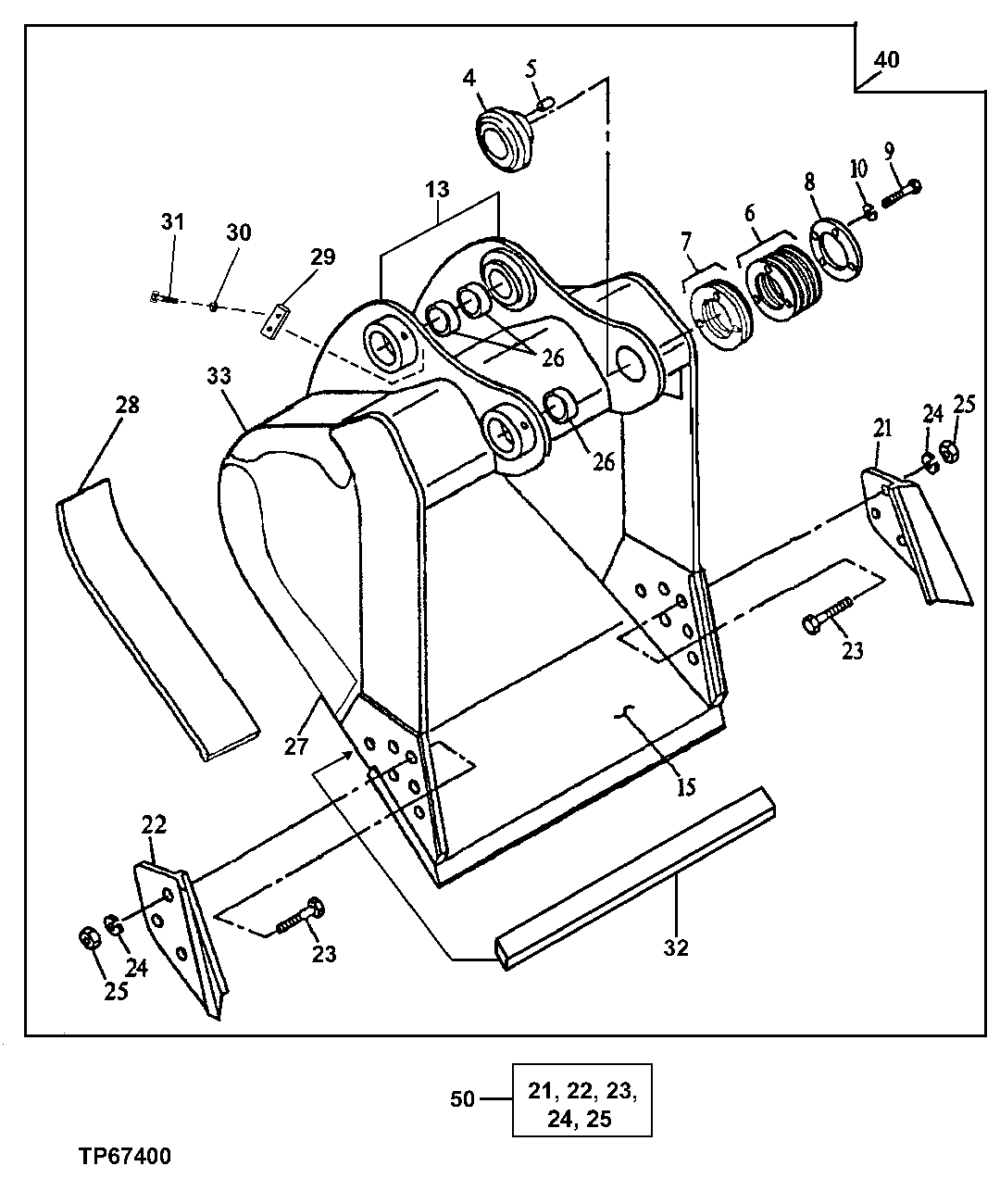

EXTREME DUTY BUCKET

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	AT189907	1	Bushing	-
5	C31732	2	Dowel Pin	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.)
6	AT189908	6	Solid Shim	-
7	AT189910	2	Solid Shim	-
8	AT189909	1	Retainer	-
9	19M7597	4	Cap Screw	M20 X 50
10	12M7070	4	Lock Washer	20 mm
13	10024	1	Pivot	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (36 INCH - 2.74 CUBIC YARD BUCKET) (BUCKET EAR BLANK ASSEMBLY)
13	10025	1	Pivot	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (42 INCH - 3.34 CUBIC YARD BUCKET) (BUCKET EAR BLANK ASSEMBLY)
13	10026	1	Pivot	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (48 INCH - 3.95 CUBIC YARD BUCKET) (BUCKET EAR BLANK ASSEMBLY)
13	10027	1	Pivot	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (54 INCH - 4.57 CUBIC YARD BUCKET) (BUCKET EAR BLANK ASSEMBLY)
13	10028	1	Pivot	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (60 INCH - 5.20 CUBIC YARD BUCKET) (BUCKET EAR BLANK ASSEMBLY)
13	10030	1	Pivot	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (72 INCH - 6.49 CUBIC YARD BUCKET) (BUCKET EAR BLANK ASSEMBLY)
15	C330196	1	Cutting Edge	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (36 INCH - 2.74 CUBIC YARD BUCKET)
15	C330202	1	Cutting Edge	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (72 INCH - 6.49 CUBIC YARD BUCKET)
15	C330200	1	Cutting Edge	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (60 INCH - 5.20 CUBIC YARD BUCKET)
15	C330199	1	Cutting Edge	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (54 INCH - 4.57 CUBIC YARD BUCKET)
15	C330198	1	Cutting Edge	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (48 INCH - 3.95 CUBIC YARD BUCKET)
15	C330197	1	Cutting Edge	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (42 INCH - 3.34 CUBIC YARD BUCKET)
21	-	1	Part 20	(SUB AT189734)
22	-	1	Part 21	(SUB AT189734)
23	-	1	Part 22	(SUB AT189734)
24	-	1	Part 23	(SUB AT189734)
25	-	1	Part 24	(SUB AT189734)
26	-	3	Part 25	-
27	C330437	2	Plate	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.)
28	C624343	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (36 INCH - 2.74 CUBIC YARD BUCKET)
28	C624344	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (42 INCH - 3.34 CUBIC YARD BUCKET)
28	C624345	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (48 INCH - 3.95 CUBIC YARD BUCKET)
28	C624346	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (54 INCH - 4.57 CUBIC YARD BUCKET)
28	C624347	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (60 INCH - 5.20 CUBIC YARD BUCKET)
28	C624349	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (72 INCH - 6.49 CUBIC YARD BUCKET)
29	AT189911	1	Retainer	-
30	12M7068	2	Lock Washer	14 mm
31	19M6579	2	Cap Screw	M14 X 50
32	C33067	8	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (48 INCH - 3.95 CUBIC YARD BUCKET)
32	C33071	8	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (72 INCH - 6.49 CUBIC YARD BUCKET)
32	C33069	8	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (60 INCH - 5.20 CUBIC YARD BUCKET)
32	C33068	8	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (54 INCH - 4.57 CUBIC YARD BUCKET)
32	C33066	8	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (42 INCH - 3.34 CUBIC YARD BUCKET)
32	C33125	8	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (36 INCH - 2.74 CUBIC YARD BUCKET)
33	C330438	2	Plate	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.)
40	-	1	Part 43	(36 INCH - 2.74 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE), ( AT189775 NLA) (USE WITH 11'10" AND 14'5" ARM)
40	-	1	Part 44	(42 INCH - 3.34 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE), ( AT189776 NLA) (USE WITH 11'10" AND 14'5" ARM)
40	-	1	Part 45	(48 INCH - 3.95 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE), ( AT189777 NLA) (USE WITH 11'10" AND 14'5" ARM)
40	-	1	Part 46	(54 INCH - 4.57 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE), ( AT189778 NLA) (USE WITH 11'10" AND 14'5" ARM)
40	-	1	Part 47	(60 INCH - 5.20 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE), ( AT189779 NLA) (USE WITH 11'10" AND 14'5" ARM)
40	-	1	Part 48	( AT189780 NO LONGER AVAILABLE) (72 INCH - 6.49 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE), WHOLEGOODS (USE WITH 11'10" AND 14'5" ARM)
50	-	1	Part 49	SIDE CUTTER, ( AT189734 NLA)

EXTREME DUTY BUCKET

Нет текстового описания
