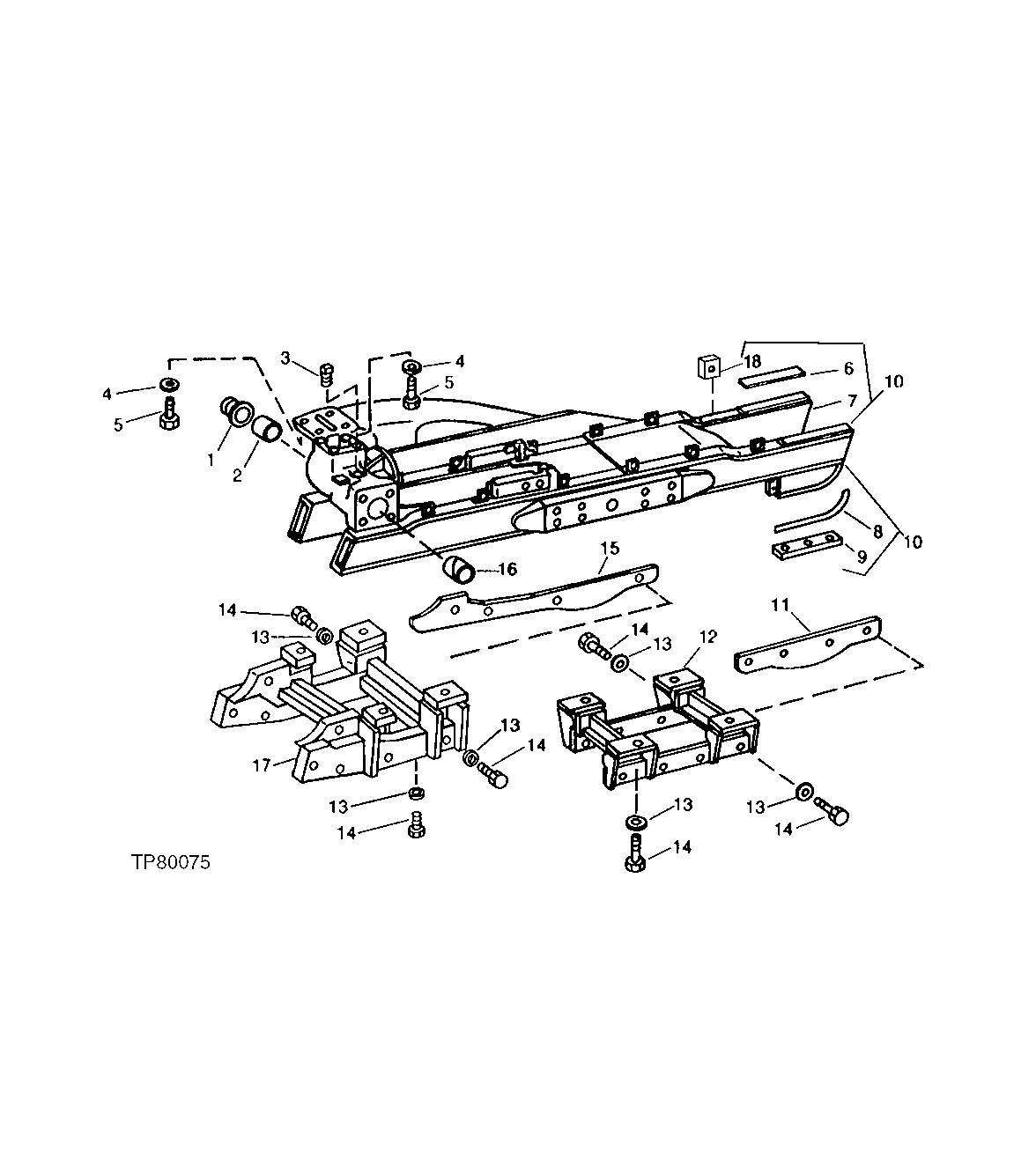

TRACK FRAME AND GUIDES (LOW GROUND PRESSURE TRACK) [01B08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT47977	1	Seal	-
2	T49324	1	Bushing	-
3	15H561	1	Pipe Plug	1/2"
4	R78019	4	Washer	(SUB FOR T21397)
5	19H2410	4	CAP SCREW	HS, SAE 8, 3/4" X 3"
6	T49313	2	REINFORCEMENT	UPPER WEAR (REFERENCE 750B TECH MANUAL)
6	T78944	2	GUSSET	LOWER WEAR (REFERENCE 750B TECH MANUAL)
7	T80312	2	BAR	(SUB FOR T55100 AND T78954)
8	T49308	2	SHIELD	-
9	T70444	2	STRAP	LOWER WEAR (REFERENCE 750B TECH MANUAL) (SUB T80313)
9	T80313	2	STRIP	(SUB FOR T78946) (REFERENCE 750B TECH MANUAL)
10	-	1	Part 12	R.H. (NO LONGER AVAILABLE) (SUB FOR AT70660)
10	-	1	Part 14	L.H. (NO LONGER AVAILABLE) (SUB FOR AT70671)
10	-	1	Part 13	(NO LONGER AVAILBLE) (SUB FOR AT78591 AND AT80690)
11	T73540	2	PLATE	-
12	AT70666	1	GUIDE	CENTER
13	T497T	24	WASHER	-
14	19H2710	24	Cap Screw	HS, SAE 8, 5/8" X 1-3/4"
15	T73544	2	WEAR PLATE	-
16	T49325	1	Bushing	-
17	AT70662	1	GUIDE	REAR
18	T59030	1	STRAP	-

TRACK FRAME AND GUIDES (LOW GROUND PRESSURE TRACK) [01B08]

Нет текстового описания
