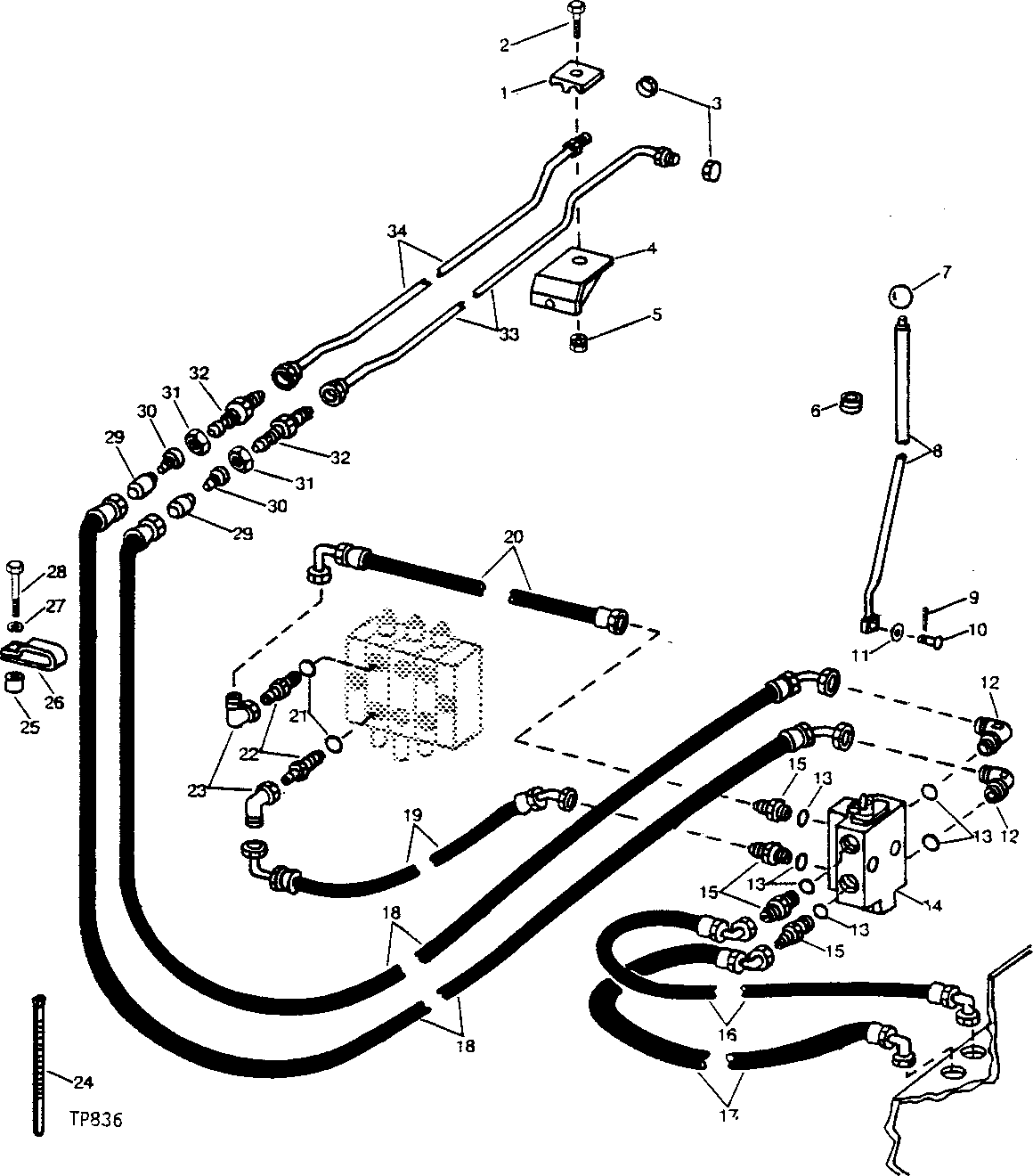

SELECTOR VALVE INSTALLATION WITH RIPPER HYDRAULIC PLUMBING (INSIDE DOZER) [04E08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T38967	1	CLAMP	-
2	19H3065	1	Cap Screw	3/8" X 2"
3	T29439	2	Fitting	-
4	AT48525	1	BRACKET	-
5	T11234	1	Lock Nut	-
6	R41439	1	Grommet	-
7	AP17808	1	Knob	-
8	T67451	1	EYEBOLT	-
9	11M7081	1	Cotter Pin	2.500 X 20 MM
10	H26275	1	PIN FASTENER	-
11	24H1287	1	Washer	9/32" X 5/8" X 0.065"
12	AT52417	2	Elbow Fitting	90°
13	U12547	6	O-Ring	(SUB FOR (6) F3171R)
14	AT73037	1	SELECTIVE CONTROL VALVE	(CANNOT BE USED ON 1.6M (64") GAUGE TRACK) (SUB FOR AT52416)
15	R27267	4	Fitting	-
16	AT66131	1	HYDRAULIC HOSE	-
17	AT66132	1	HYDRAULIC HOSE	-
18	AT65108	2	HYDRAULIC HOSE - FABRICATE	-
19	AT65109	1	HYDRAULIC HOSE - FABRICATE	-
20	AT65110	1	HYDRAULIC HOSE - FABRICATE	-
21	R29936	2	O-Ring	-
22	T27603	2	Fitting	-
23	AT28379	2	Fitting	90°
24	R76477	4	Tie Band	(SUB FOR T44946 AND A49232) (SUB FOR H77698, THIS APPLICATION)
25	28H2551	1	Spacer	3/8" X 1-1/8"
26	AH77869	1	Clip	-
27	12H304	1	Lock Washer	3/8"
28	19H1726	1	Cap Screw	3/8" X 2-1/4"
29	X12BTX-S	2	TUBE NUT	(SUB FOR T47371)
30	T67450	2	FITTING	-
31	R27390	2	Nut	-
32	R47876	2	Fitting	-
33	AT48523	1	TUBE	-
34	AT48524	1	TUBE	-
..	AT64279	1	VALVE	INCLUDES SELECTOR VALVE AND HYDRAULICS NECESSARY FOR INSTALLATION OF RIPPER WITH INSIDE DOZER, (AT71372 NO LONGER AVAILABLE) WHOLEGOODS, (SUB AT71372)

SELECTOR VALVE INSTALLATION WITH RIPPER HYDRAULIC PLUMBING (INSIDE DOZER) [04E08]
