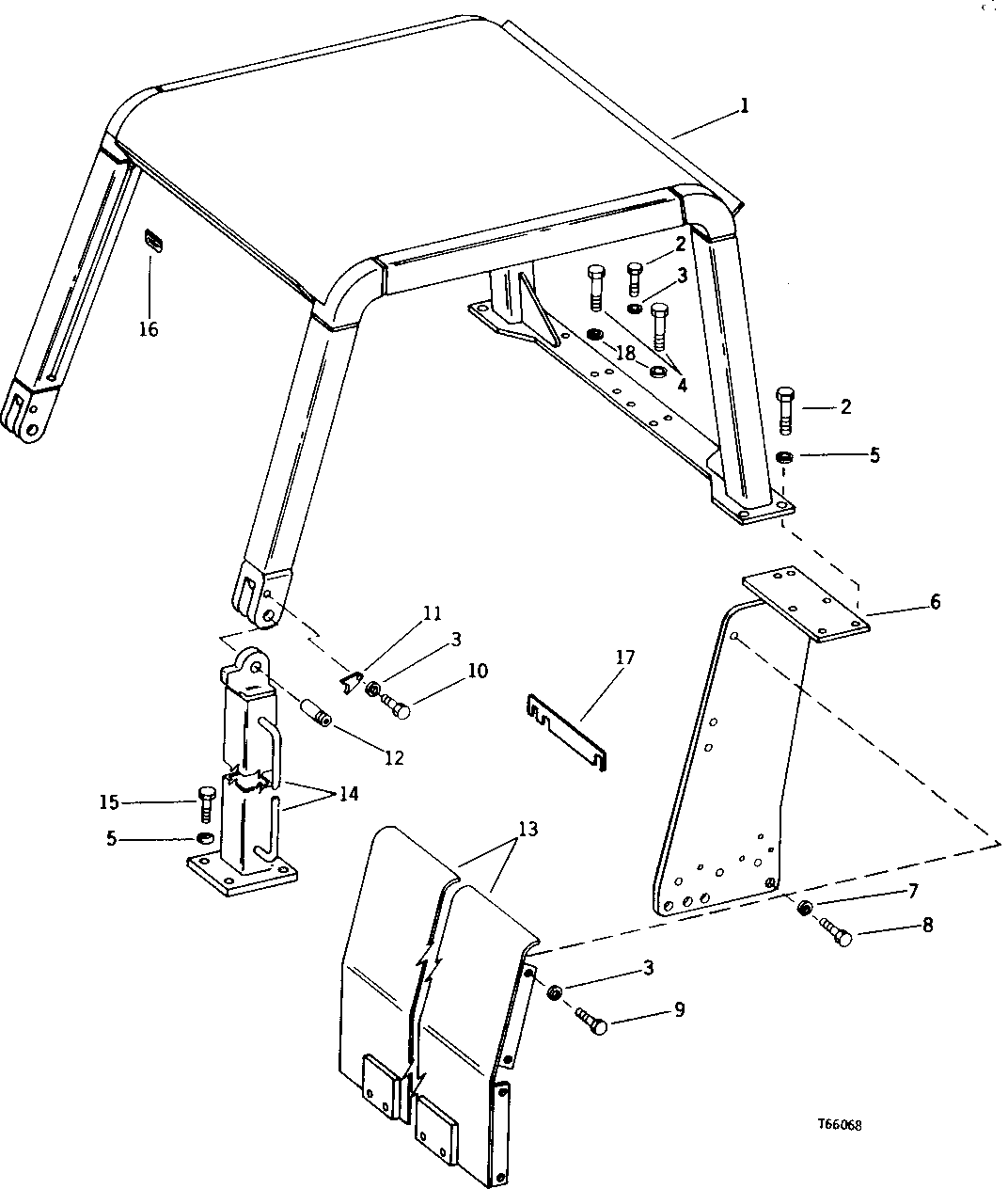

ROLL-OVER PROTECTIVE STRUCTURE (WITHOUT CAB) [03B07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT62718	1	ROLL-GARD	(SUB AT66986)
1	AT139671	1	ROPS	(INCLUDES T126947 AND T146097) (SUB FOR AT66986)
1	AT48863	1	ROPS	(SUB AT66986)
2	19H3158	6	Cap Screw	HS, SAE 8, 3/4" X 2"
3	T20168	12	Washer	-
4	19H3137	4	Cap Screw	HS, SAE 8, 3/4" X 2-3/4"
4	19H2410	4	CAP SCREW	HS, SAE 8, 3/4" X 3"
5	R78019	14	Washer	(SUB FOR T21397)
6	AT48861	1	SUPPORT	REAR, L.H. (SUB AT59545)
6	AT59545	1	BRACKET	REAR, L.H.
6	AT74628	1	SUPPORT	L.H.
6	AT48860	1	SUPPORT	(NOT ILLUSTRATED) REAR, R.H. (SUB AT59544)
6	AT59544	1	BRACKET	REAR, R.H. (NOT ILLUSTRATED)
6	AT74627	1	SUPPORT	R.H. (NOT ILLUSTRATED)
7	T34459	12	WASHER	-
7	T34459	8	WASHER	-
8	19H3359	8	Cap Screw	HS, SAE 8, 7/8" X 2"
8	19H3359	12	Cap Screw	HS, SAE 8, 7/8" X 2"
9	19H2898	8	Cap Screw	HS, SAE 8, 1/2" X 1-1/4"
10	19H1781	2	CAP SCREW	1/2" X 3-1/2"
11	T50193	2	RETAINER	-
12	T50192	2	PIN FASTENER	-
13	AT58790	1	PLATE	REAR, SUPPORT FRONT, (SUB FOR AT48862)
13	AT74626	1	PLATE	REAR
14	AT82071	1	PIVOT	LOWER, L.H. (SUB FOR AT53191)
14	AT82072	1	PIVOT	LOWER, R.H. (NOT ILLUSTRATED) (SUB FOR AT53190)
15	19H2431	8	CAP SCREW	HS, SAE 8, 3/4" X 2-1/4"
16	T43705	1	SAFETY SIGN	CAUTION
17	T61247	1	SHIM	-
18	R78019	4	Washer	(SUB FOR T21397)
18	B3627R	4	WASHER	-

ROLL-OVER PROTECTIVE STRUCTURE (WITHOUT CAB) [03B07]
