REPLACEMENT RIPPER HYDRAULICS (TWO SPOOL CONTROL VALVE) [04G18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

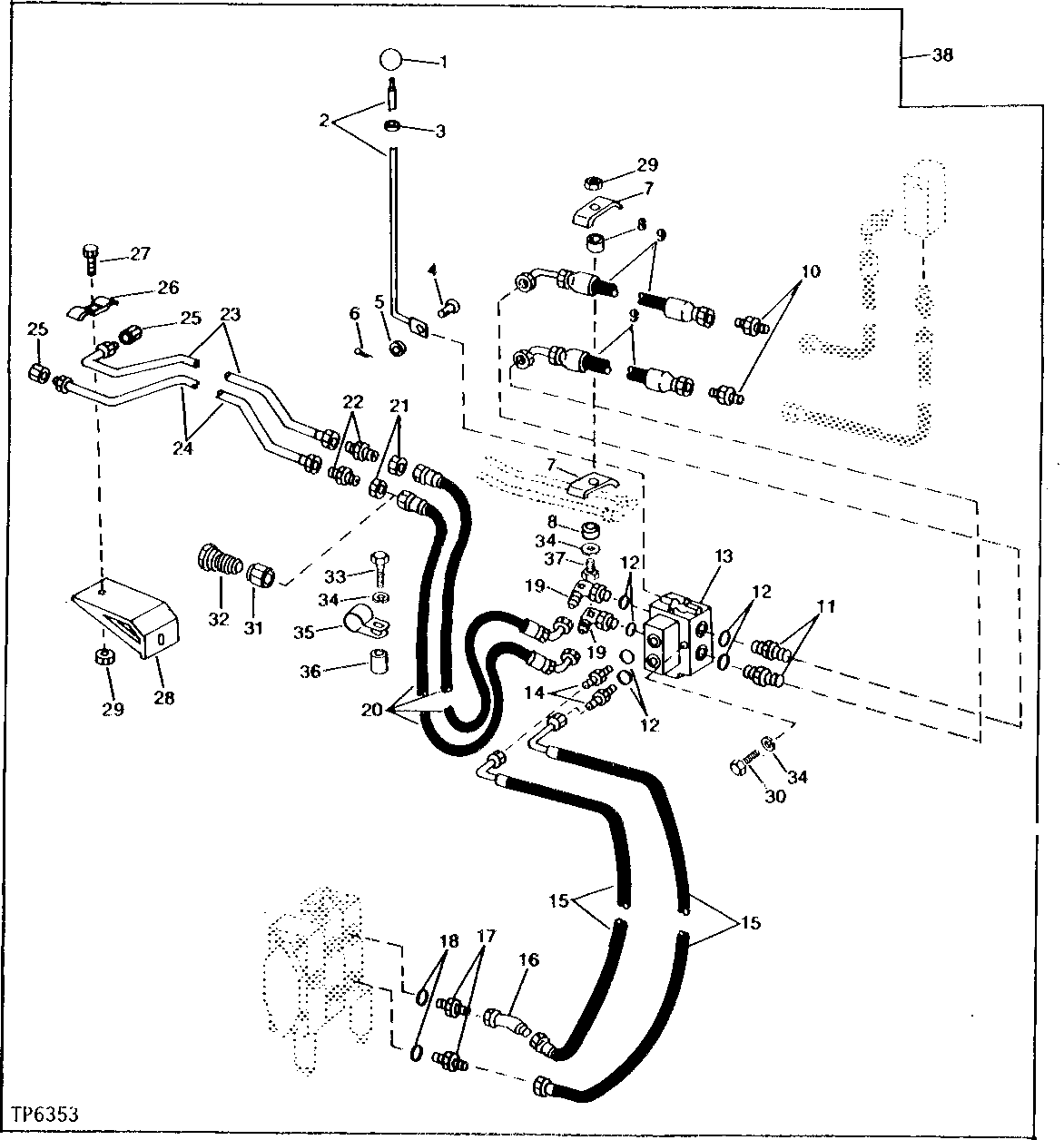

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AP17808	1	Knob	-
2	T67451	1	EYEBOLT	-
3	R41439	1	Grommet	-
4	H26275	1	PIN FASTENER	-
5	24H1287	1	Washer	9/32" X 5/8" X 0.065"
6	11M7081	1	Cotter Pin	2.500 X 20 MM
7	U40398	1	Clamp	-
8	N52528	2	Bushing	-
9	AT36594	2	HYDRAULIC HOSE - FABRICATE	-
10	R34063	2	Fitting	-
11	T75307	2	Adapter Fitting	(SUB FOR R40122, THIS APPLICATION)
12	U12547	4	O-Ring	(SUB FOR (4) F3171R)
13	AT73037	1	SELECTIVE CONTROL VALVE	DOUBLE SELECTOR, (SUB FOR AT52416)
14	R36075	2	Fitting	-
15	AT49998	2	HOSE	-
16	R37145	1	Elbow Fitting	-
17	T27603	2	Fitting	-
18	R29936	2	O-Ring	-
19	AT52417	2	Elbow Fitting	-
20	AT65108	2	HYDRAULIC HOSE - FABRICATE	-
21	R27390	2	Nut	-
22	R47876	2	Fitting	-
23	AT48523	1	TUBE	INNER
24	AT48524	1	TUBE	OUTER
25	T29439	2	Fitting	-
26	T38967	1	CLAMP	-
27	19H3065	1	Cap Screw	3/8" X 2"
28	AT48525	1	BRACKET	-
29	T11234	2	Lock Nut	-
30	19H2458	2	Cap Screw	3/8" X 3"
31	X12BTX-S	2	TUBE NUT	(SUB FOR T47371)
32	T67450	2	FITTING	-
33	19H1726	1	Cap Screw	3/8" X 2-1/4"
34	12H304	3	Lock Washer	3/8"
35	AH77869	1	Clip	-
36	28H2551	1	Spacer	3/8" X 1-1/4"
37	19H1912	1	Cap Screw	3/8" X 3-1/2"
38	AT71372	1	VALVE	SELECTOR VALVE AND RIPPER PLUMBING
