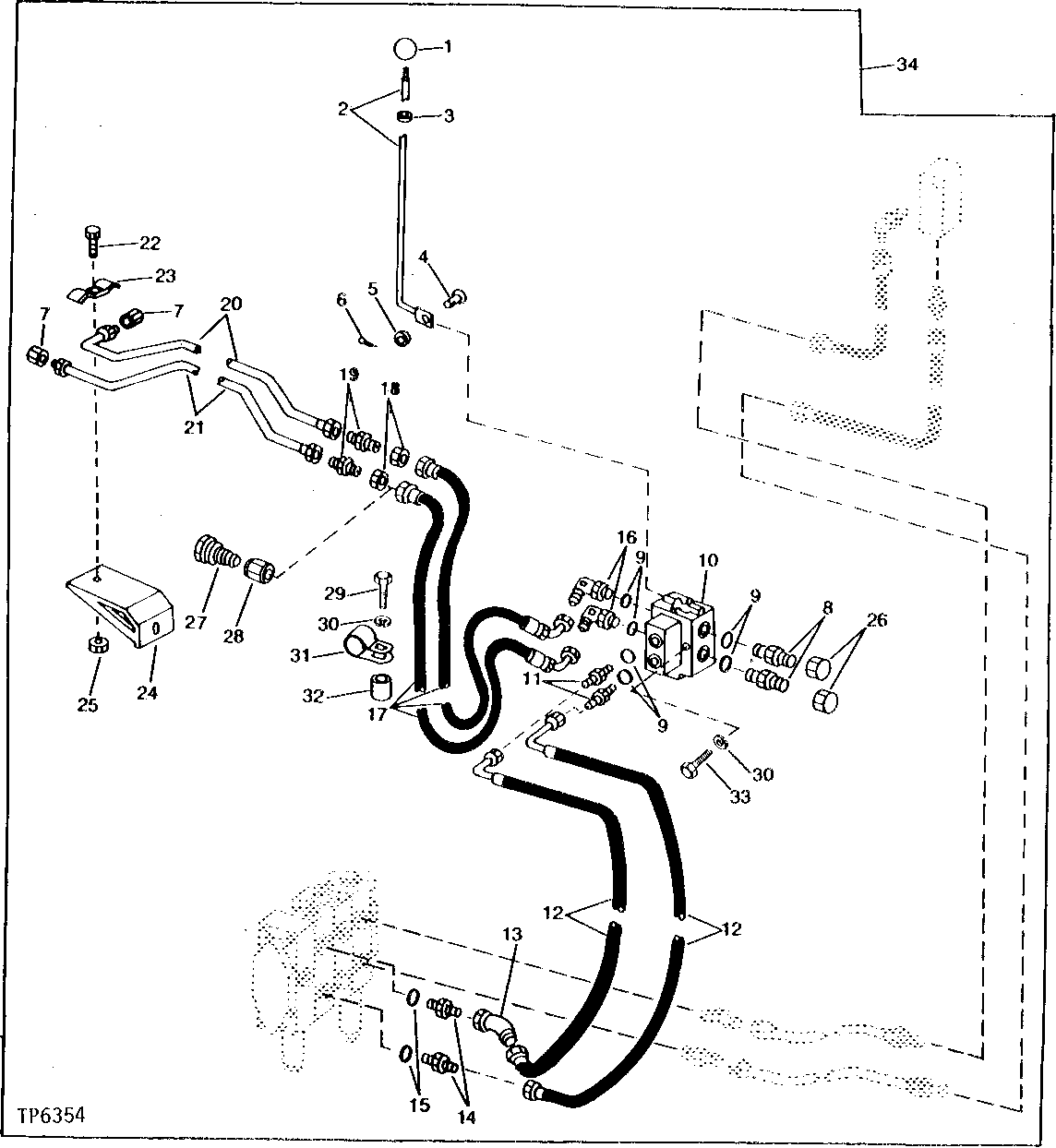

REPLACEMENT RIPPER HYDRAULICS (THREE SPOOL WITHOUT ALL HYDRAULIC ANGLE DOZER) [04G20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AP17808	1	Knob	-
2	T67451	1	EYEBOLT	-
3	R41439	1	Grommet	-
4	H26275	1	PIN FASTENER	-
5	24H1287	1	Washer	9/32" X 5/8" X 0.065"
6	11M7081	1	Cotter Pin	2.500 X 20 MM
7	R31736	2	Fitting	(SUB FOR T29439, THIS APPLICATION)
8	T75307	2	Adapter Fitting	(SUB FOR R40122, THIS APPLICATION)
9	U12547	6	O-Ring	(SUB FOR (6) F3171R)
10	AT73037	1	SELECTIVE CONTROL VALVE	DOUBLE SELECTOR, (SUB FOR AT52416)
11	R36075	2	Fitting	-
12	AT49998	2	HOSE	-
13	R37145	1	Elbow Fitting	-
14	T27603	2	Fitting	-
15	R29936	2	O-Ring	-
16	AT52417	2	Elbow Fitting	-
17	AT65108	2	HYDRAULIC HOSE - FABRICATE	-
18	R27390	2	Nut	-
19	R47876	2	Fitting	-
20	AT48523	1	TUBE	INNER
21	AT48524	1	TUBE	OUTER
22	19H3065	1	Cap Screw	3/8" X 2"
23	T38967	1	CLAMP	-
24	AT48525	1	BRACKET	-
25	T11234	1	Lock Nut	-
26	R31736	2	Fitting	-
27	T67450	2	FITTING	-
28	X12BTX-S	2	TUBE NUT	(SUB FOR T47371)
29	19H1726	1	Cap Screw	3/8" X 2-1/4"
30	12H304	3	Lock Washer	3/8"
31	AH77869	1	Clip	-
32	28H2551	1	Spacer	3/8" X 1-1/4"
33	19H2458	2	Cap Screw	3/8" X 3"
34	AT71372	1	VALVE	SELECTOR VALVE AND RIPPER PLUMBING (AT71372 NO LONGER AVAILABLE)

REPLACEMENT RIPPER HYDRAULICS (THREE SPOOL WITHOUT ALL HYDRAULIC ANGLE DOZER) [04G20]
