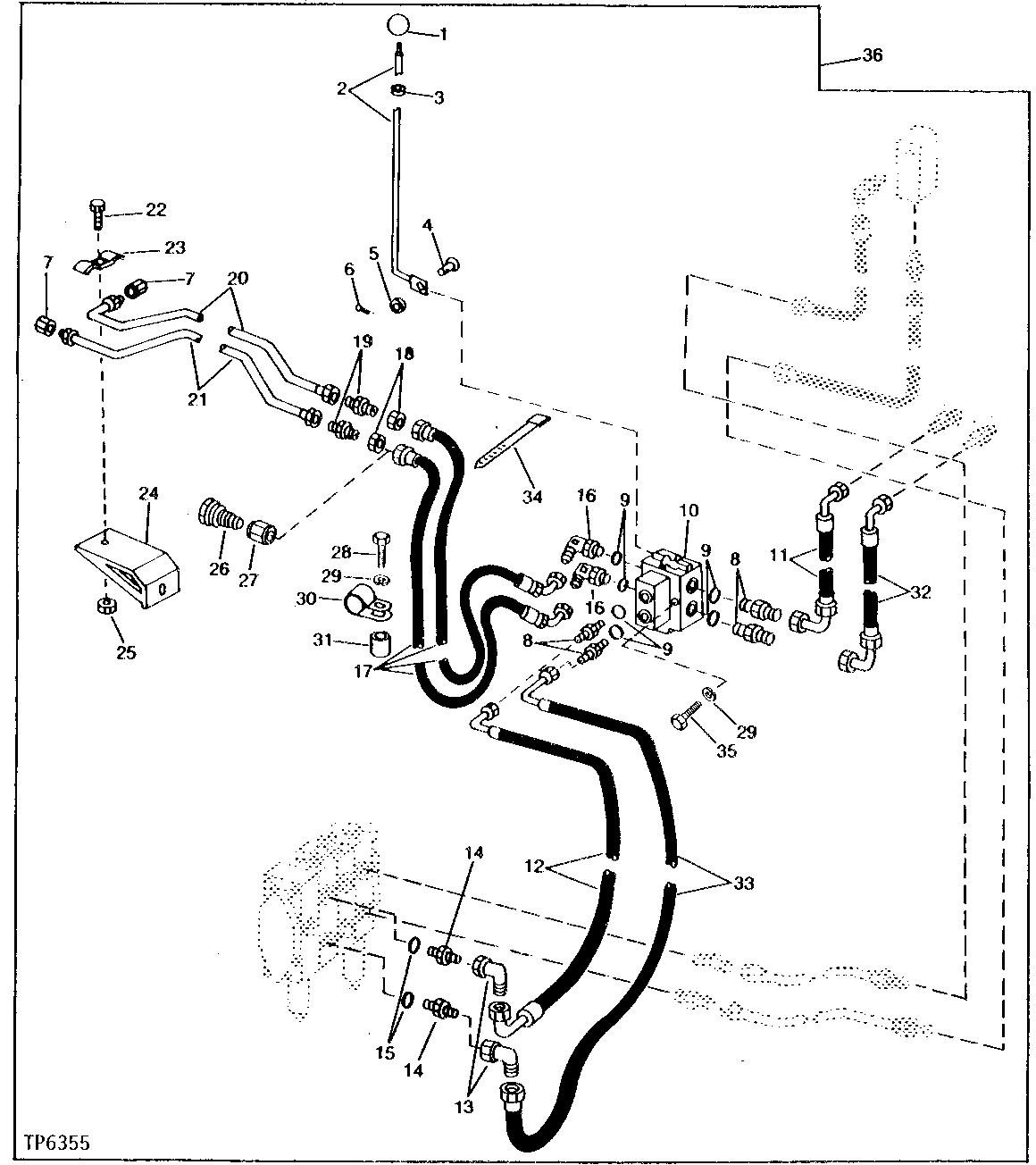

REPLACEMENT RIPPER HYDRAULICS (THREE SPOOL WITH ALL HYDRAULIC ANGLE DOZER) [04G22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AP17808	1	Knob	-
2	T67451	1	EYEBOLT	-
3	R41439	1	Grommet	-
4	H26275	1	PIN FASTENER	-
5	24H1287	1	Washer	9/32" X 5/8" X 0.065"
6	11M7081	1	Cotter Pin	2.500 X 20 MM
7	T29439	2	Fitting	-
8	R27267	4	Fitting	-
9	U12547	6	O-Ring	(SUB FOR (6) F3171R)
10	AT73037	1	SELECTIVE CONTROL VALVE	DOUBLE SELECTOR, (SUB FOR AT52416)
11	AT66132	1	HYDRAULIC HOSE	-
12	AT65109	1	HYDRAULIC HOSE - FABRICATE	-
13	AT28379	2	Fitting	-
14	T27603	2	Fitting	-
15	R29936	2	O-Ring	-
16	AT52417	2	Elbow Fitting	-
17	AT65108	2	HYDRAULIC HOSE - FABRICATE	-
18	R27390	2	Nut	-
19	R47876	2	Fitting	-
20	AT48523	1	TUBE	INNER
21	AT48524	1	TUBE	OUTER
22	19H3065	1	Cap Screw	3/8" X 2"
23	T38967	1	CLAMP	-
24	AT48525	1	BRACKET	-
25	T11234	1	Lock Nut	-
26	T67450	2	FITTING	-
27	X12BTX-S	2	TUBE NUT	(SUB FOR T47371)
28	19H1726	1	Cap Screw	3/8" X 2-1/4"
29	12H304	3	Lock Washer	3/8"
30	AH77869	1	Clip	-
31	28H2551	1	Spacer	3/8" X 1-1/4"
32	AT66131	1	HYDRAULIC HOSE	-
33	AT65110	1	HYDRAULIC HOSE - FABRICATE	-
34	R76477	2	Tie Band	(SUB FOR T44946 AND A49232) (SUB FOR H77698, THIS APPLICATION)
35	19H2458	2	Cap Screw	3/8" X 3"
36	AT71372	1	VALVE	SELECTOR VALVE AND RIPPER PLUMBING (AT71372 NO LONGER AVAILABLE)

REPLACEMENT RIPPER HYDRAULICS (THREE SPOOL WITH ALL HYDRAULIC ANGLE DOZER) [04G22]
