PLATFORM (WITHOUT CAB AND WITHOUT ROLL-OVER PROTECTIVE STRUCTURE) (EXPORT) [03B18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T57256	1	MAT	R.H. (SUB T59543)
2	T57257	1	MAT	L.H. (SUB T59543)
3	T53268	24	Screw	-
4	21H1047	5	SCREW	1/4" X 7/8"
5	T49768	1	STRAP	-
6	T49769	1	STRAP	-
7	AT48465	1	PLATFORM	FRONT, L.H.
8	AT48463	1	PLATFORM	OUTER, L.H.
8	AT73550	1	PLATFORM	-
9	19H3130	2	Cap Screw	5/16" X 1-3/4"
10	24H1136	4	Washer	11/32" X 11/16" X 0.065"
11	T126073	1	COVER	(SUB FOR AT50870)
12	T52511	1	GROMMET	-
13	14H785	2	Nut	5/16"
14	-	1	Part 15	(SUB FOR T75552) (FURNISH COMPONENTS)
14	T135732	1	ISOLATOR	(SUB FOR T75552)
15	AT48464	1	PLATFORM	FRONT, R.H.
16	-	2	Part 18	(MAKE FROM AT56771 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T49767)
17	AT48462	1	PLATFORM	OUTER, R.H.
18	AT48467	8	ISOLATOR	668 MM PIECE (26.30") (SUB FOR AT48468, AT48469, AT48470 AND AT48471)
19	AT48459	1	PLATFORM	CENTER
20	T56062	2	RETAINER	-
21	AT73007	1	RETAINER	-
22	T59313	1	COVER	-
23	T60906	2	RETAINER	-
24	T59542	1	MAT	(SUB FOR T59543)
25	T57258	2	GUSSET	-
26	24H1305	1	Washer	13/32" X 13/16" X 0.065"
27	19H3239	1	Cap Screw	3/8" X 1-1/4"
28	AT48460	1	FOOTREST	WITH FOAM
28	AT73552	1	FOOTREST	(SUB FOR AT73551)
29	-	1	Part 32	RIGHT, (SUB AT73943)
30	-	1	Part 33	LEFT, (SUB AT73943)

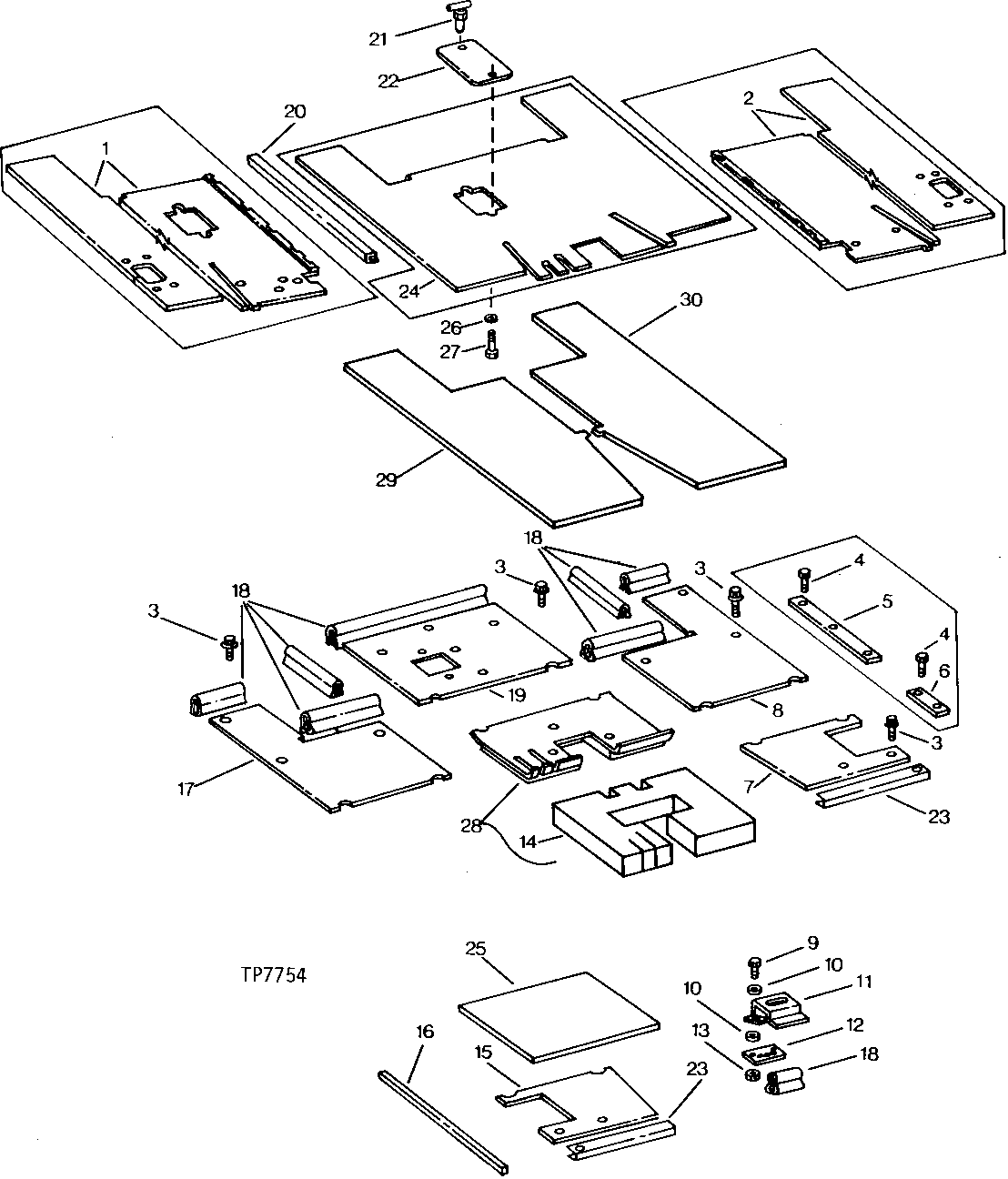

PLATFORM (WITHOUT CAB AND WITHOUT ROLL-OVER PROTECTIVE STRUCTURE) (EXPORT) [03B18]
