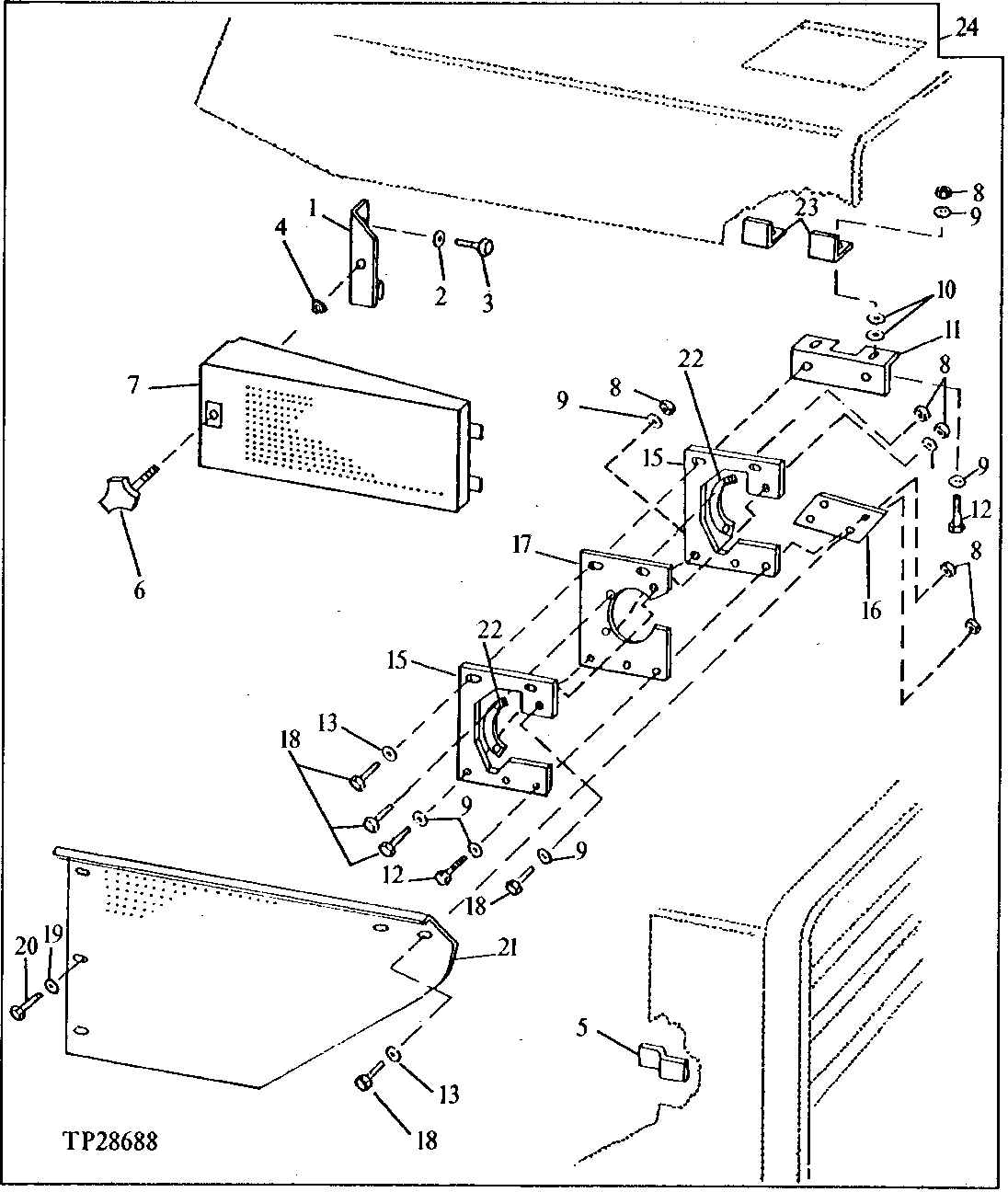

PERFORATED ENGINE SIDE SHIELDS (WITHOUT LOW GROUND PRESSURE) (SERIAL NO. 322423-717809) [03G05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT67522	1	BRACKET	L.H. (NOT ILLUSTRATED)
1	AT67521	1	BRACKET	R.H.
2	24H1682	2	Washer	13/32" X 7/8" X 0.120"
3	19H2284	2	Cap Screw	3/8" X 7/8"
4	T38192	1	NUT	-
5	-	1	Part 6	(SUB AT78354)
6	AT61548	1	RETAINER	(SUB FOR AT36828)
7	AT78345	1	SHIELD	BRUSH, R.H. (SUB AT82306, AT82308, T11234, 03H1765 AND 24M7296)
7	AT78346	1	SHIELD	BRUSH, L.H. (NOT ILLUSTRATED) (SUB AT82307, AT82308, T11234, 03H1765 AND 24H1653)
8	T11234	10	Lock Nut	-
9	24M7233	10	WASHER	10.700 X 21 X 2.500 MM
10	24H1304	4	WASHER	13/32" X 23/32" X 0.120"
11	AT78349	1	ANGLE	-
12	19H3239	4	Cap Screw	3/8" X 1-1/4"
13	24H1653	4	Washer	13/32" X 1-1/4" X 0.120"
14	24H1219	4	Washer	7/16" X 1" X 0.083"
15	T78751	2	PLATE	-
16	T79455	1	PLATE	-
17	T78750	1	ISOLATOR	-
18	19H2676	8	Cap Screw	3/8" X 1"
19	24H1625	3	Washer	17/32" X 1" X 0.120"
20	19H3472	3	Cap Screw	5/8" X 9-3/4"
21	T78747	1	SHIELD	ENGINE SIDE, R.H. (SUB FOR T67963)
21	T78749	1	SHIELD	ENGINE SIDE, L.H. (NOT ILLUSTRATED) (SUB FOR T67964)
22	T79456	1	STRIP	-
23	-	2	Part 26	(SUB AT78354)
24	AT78354	1	KIT	ENCLOSED SIDE SHIELDS (NO LONGER AVAILABLE)
