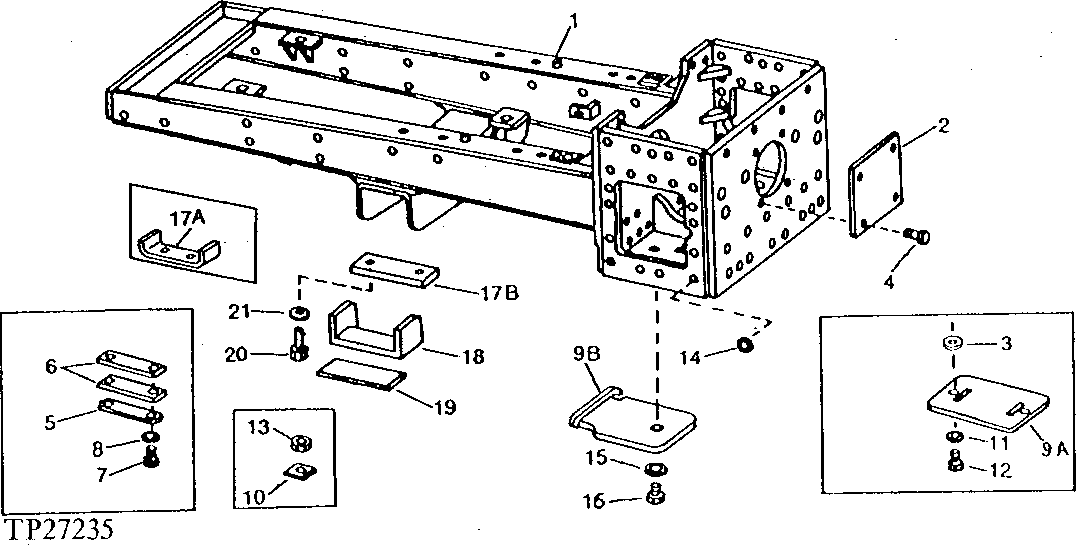

MAIN FRAME (1.8M (74 IN.) GAUGE TRACK) [02K07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT61192	1	FRAME	(SUB AT81334)
1	AT65954	1	MAIN FRAME	(SUB AT81334, (2) AT67703, (2) 19H2994 AND (2) T497T)
1	AT67705	1	MAIN FRAME	(SUB AT81334)
1	AT70545	1	MAIN FRAME	(SUB AT81334)
1	AT81334	1	MAIN FRAME	(SUB FOR AT72047)
1	AT44959	1	FRAME	(SUB AT81334 AND (12) T17776)
2	T49026	1	COVER	POWER TAKE-OFF
3	A11667	4	Washer	(SUB FOR T46242)
4	19H2994	4	Cap Screw	HS, SAE 8, 5/8" X 1-1/2"
5	T54643	1	STRAP	-
6	T68347	1	STRAP	(SUB FOR T47849)
6	T68346	1	STRAP	-
7	19H2710	2	Cap Screw	HS, SAE 8, 5/8" X 1-3/4"
8	24M7241	2	Washer	17 X 34 X 4 MM, (SUB FOR T19584 AND T40728)
10	AT53466	4	RETAINER	-
11	12H294	4	Lock Washer	5/8"
12	19H2588	4	Cap Screw	5/8" X 1-7/8"
12	19H3282	4	Cap Screw	5/8" X 3-1/2"
13	14H821	4	Nut	5/8"
14	T17776	12	Washer	-
15	T497T	2	WASHER	-
16	19H2994	2	Cap Screw	HS, SAE 8, 5/8" X 1-1/2"
18	T80569	1	RETAINER	(USE WITH AT81334)
19	T106943	1	REINFORCEMENT	(USE WITH AT81334) (SUB FOR T80571)
19	T106944	1	REINFORCEMENT	(USE WITH AT81334) (SUB FOR T80570)
20	19H2898	2	Cap Screw	HS, SAE 8, 1/2" X 1-1/4", (USE WITH AT81334)
21	T20168	4	Washer	(USE WITH T106946)
21	T20168	2	Washer	(USE WITH AT81334 AND T81905)
9A	AT56581	2	COVER	BOTTOM, (SUB FOR AT53465)
9B	AT67703	2	COVER	BOTTOM
17A	T81905	1	CHANNEL	(USE WITH AT81334)
17B	T106946	1	PLATE	-
