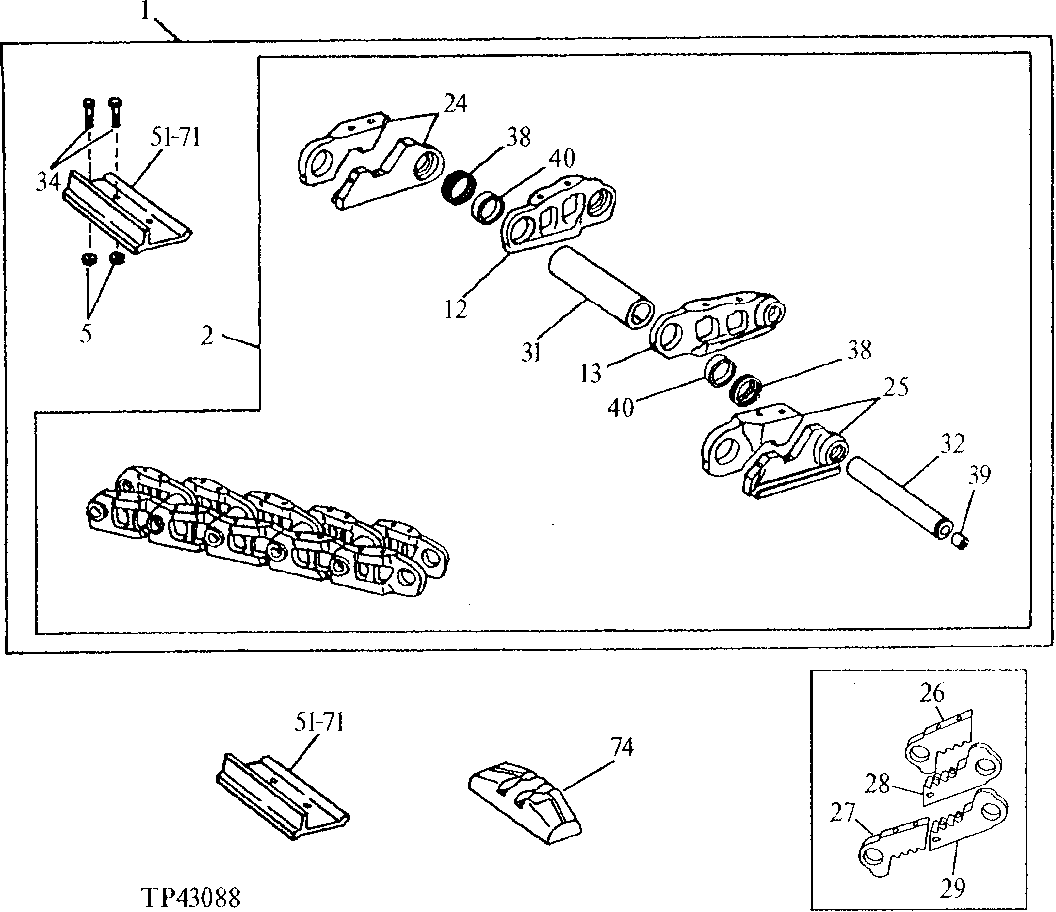

LUBRICATED CHAINS, 5/8, WITH STRUTTED LINKS - STD (40L) AND WT (46L) [01C14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT148656	2	TRACK ASSEMBLY WITH SHOES	560MM (22") (40L) (USE IF AVAILABLE)
1	AT148658	2	TRACK ASSEMBLY WITH SHOES	508MM (20") (40L) (USE IF AVAILABLE)
2	-	1	Part 3	(40L) (INCLUDES SPLIT MASTER LINKS) ( AT70797 NO LONGER AVAILABLE) (SUB AT168467)
2	-	1	Part 4	(46L) (INCLUDES PIN END AND BUSHING END MASTER LINKS) ( AT70767 NO LONGER AVAILABLE) (SUB AT168500)
3	T43323	1	TRACK BOLT	(QUANTITY IS 156 OR 180) (SUB FOR T45096)
3	T77084	180	BOLT	(USE WITH SELF CLEANING SHOES)
4	T126081	4	Master Track Bolt	(SUB FOR T73613)
4	T77086	4	MASTER TRACK BOLT	(USE WITH SELF CLEANING SHOES)
5	T45097	1	Nut	(QUANTITY IS 156 OR 180)
12	T70317	1	STRUTTED LINK-LH	(QUANTITY IS 39 OR 45)
13	T70316	1	STRUTTED LINK-RH	(QUANTITY IS 39 OR 45)
24	AT132893	1	MASTER TRACK LINK-SPLIT-LH	(ALTERNATE)
25	AT167510	1	MASTER TRACK LINK-SPLIT-RH	(ALTERNATE) (SUB FOR AT132892)
25	AT167511	1	MASTER TRACK LINK-SPLIT-LH	(SUB FOR AT132892)
26	T73611	1	MASTER HALF LINK-LH-BSH END	(ALTERNATE)
27	T73609	1	MASTER HALF LINK-RH-BSH END	(ALTERNATE)
28	T73610	1	MASTER HALF LINK-LH-PIN END	(ALTERNATE)
29	T73608	1	MASTER HALF LINK-RH-PIN END	(ALTERNATE)
31	T73603	1	BUSHING	(QUANTITY IS 40 OR 46)
32	T149292	1	Track Pin	(QUANTITY IS 40 OR 46) (SUB FOR T73604)
38	AT112903	40	SEAL KIT	(CONTAINS 2 SEALS) (FOR 46L CHAINS,ALSO ORDER (6) ADDITIONAL AT112903)
39	T106913	1	PLUG	(QUANTITY IS 40 OR 46) (SUB FOR T74064)
40	T73607	1	Washer	(QUANTITY IS 80 OR 92)
51	T106955	45	Single Bar Shoe	600MM (23.6") (NOT FOR USE WITH 1.6M (64") GAUGE TRACK)
51	T60829	45	SINGLE BAR SHOE	860MM (33.8") (NOT FOR USE WITH 1.6M (64") GAUGE TRACK)
51	T60828	1	Single Bar Shoe	560MM (22")
51	T45099	39	Single Bar Shoe	506 MM(20")
51	T45098	39	SINGLE BAR SHOE	457 MM(18")
71	T73612	1	MASTER SINGLE BAR SHOE	457 MM(18")
71	T73617	1	MASTER SINGLE BAR SHOE	506MM (20")
71	T73616	1	MASTER SINGLE BAR SHOE	560MM (22")
71	T106956	1	MASTER SINGLE BAR SHOE	600MM (23.6")
71	T73615	1	MASTER SINGLE BAR SHOE	860MM (33.8)
74	T76955	45	SELF CLEANING SHOE	860 MM (34")
74	T76956	1	SELF CLEANING SHOE	860 MM (34") MASTER

LUBRICATED CHAINS, 5/8, WITH STRUTTED LINKS - STD (40L) AND WT (46L) [01C14]
