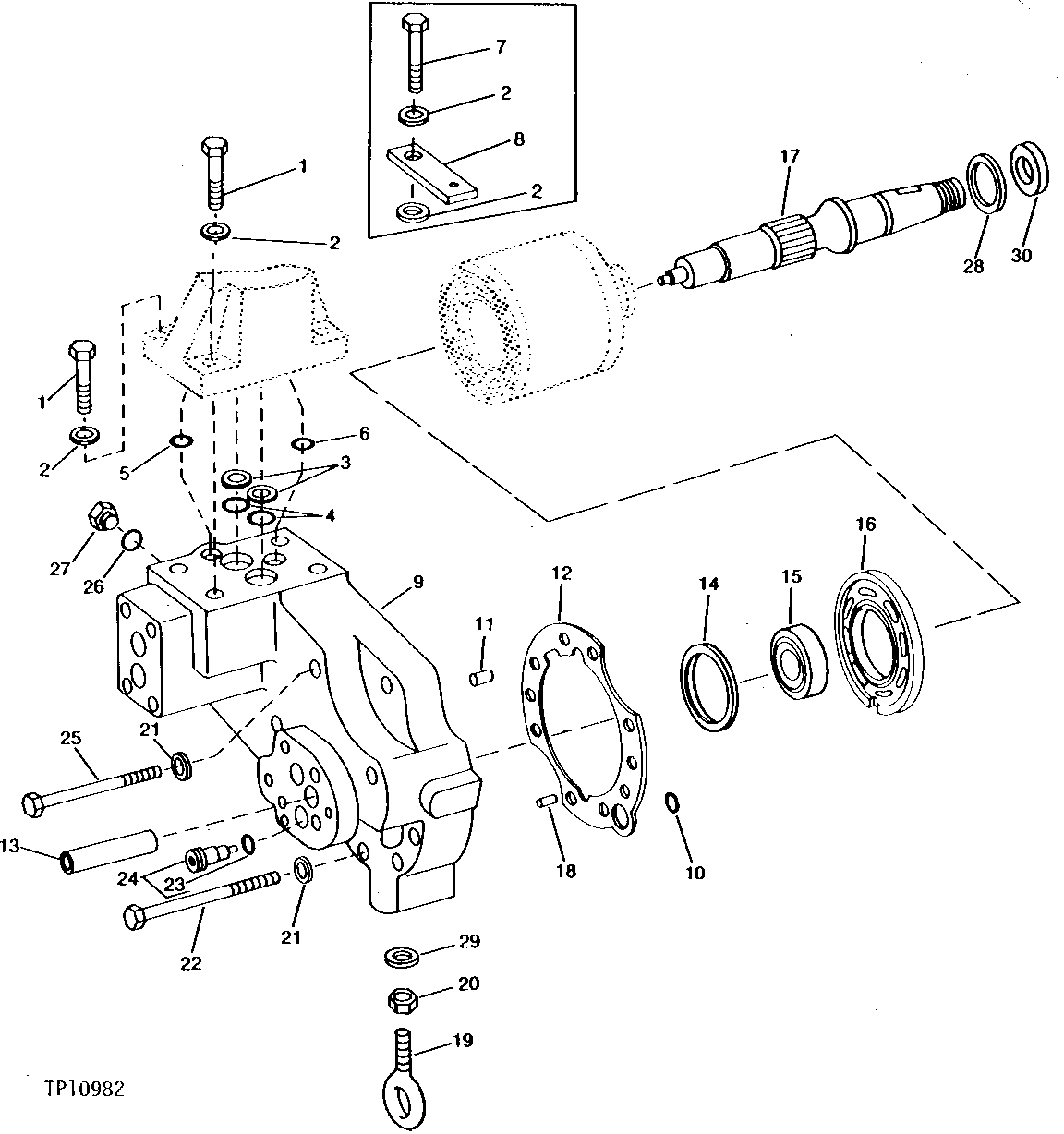

LEFT-HAND TRANSMISSION PUMP END CAP AND SHAFT [01G09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T68349	4	SCREW	-
1	T68349	3	SCREW	-
2	T54839	5	WASHER	-
2	T54839	4	WASHER	-
3	T123276	2	RING	(K1) (K2) (SUB FOR T54838) (DO NOT USE H84318 WITH T123276)
4	H84318	2	O-Ring	(K1) (K2) (SUB FOR T54837 AND T65955) (DO NOT USE WHEN T123276 HAS BEEN INSTALLED)
5	P50883	1	Ring	(K1) (K2)
6	B15646	1	O-Ring	(K1) (K2)
7	T68350	1	SCREW	(SUB FOR U41108, THIS APPLICATION)
8	-	1	Part 10	( T54942, NO LONGER AVAILABLE)
9	T54945	1	CAP	-
10	H81608	1	O-Ring	(K2)
11	H63271	1	Pin	-
12	T54911	1	GASKET	(K2)
13	T54921	1	SPLINED COUPLING	-
14	AT125472	1	SHIM KIT	(SUB FOR T53332)
15	AT52818	1	TAPERED ROLLER BEARING	BEARING, REAR
16	T54917	1	PLATE	-
17	T60037	1	SHAFT	-
18	H63245	2	PIN	-
19	T54946	1	EYEBOLT	-
20	14H826	1	Nut	1/2"
21	24H1652	8	Washer	13/32" X 11/16" X 7/64"
22	19H1912	5	Cap Screw	3/8" X 3-1/2"
23	H63283	2	O-Ring	-
24	AH63288	2	CHECK VALVE	-
25	19H2054	3	CAP SCREW	3/8" X 4-3/4"
26	R26448	1	O-Ring	-
27	R27218	1	Fitting Plug	-
28	-	1	Part 30	0.25 MM (.010") (USE ONLY WITH SHORT SHAFT) ( T56575 IS NO LONGER REQUIRED)
29	T54864	1	WASHER	-
30	T76717	1	SEAL	-

LEFT-HAND TRANSMISSION PUMP END CAP AND SHAFT [01G09]
