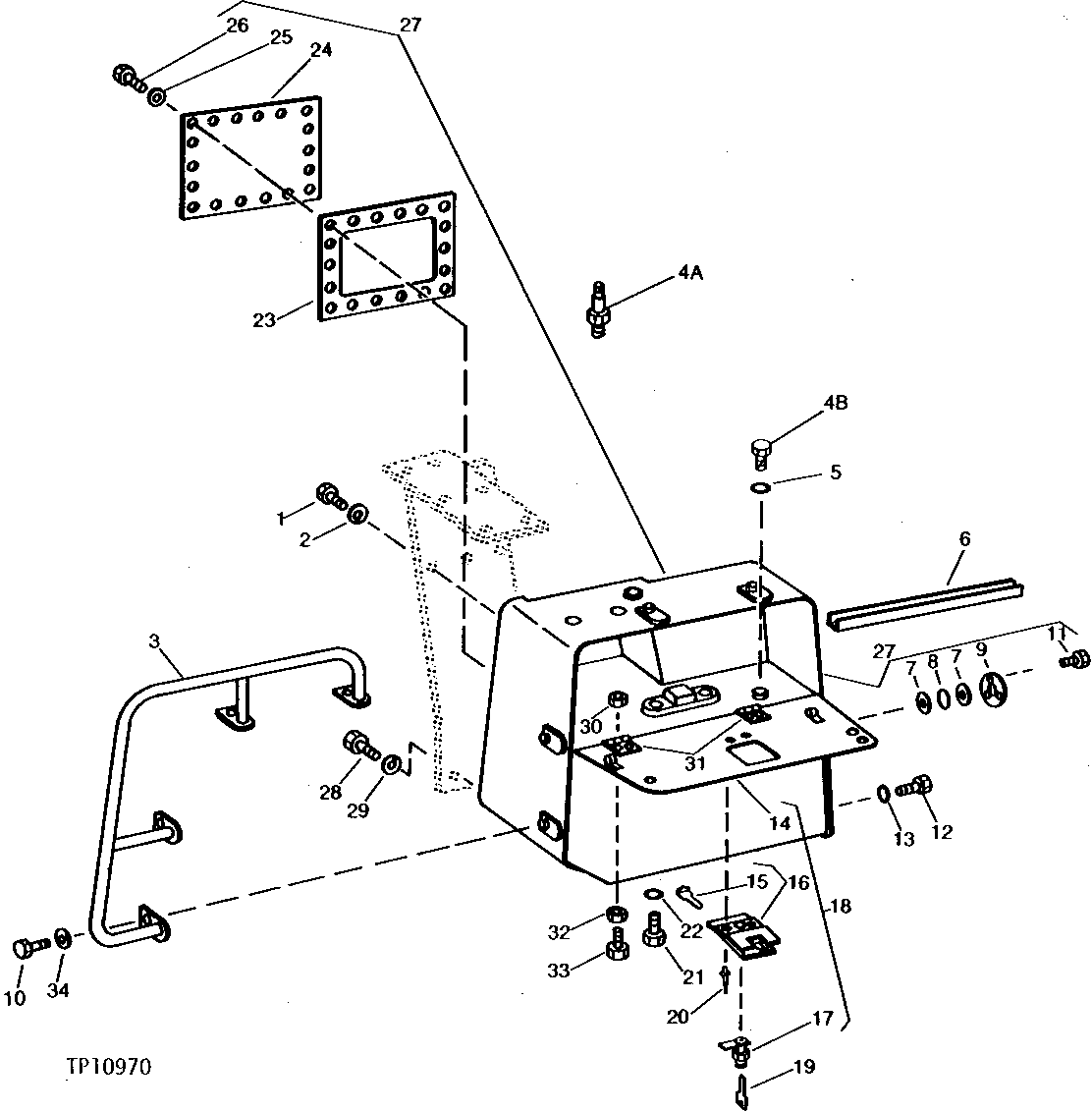

HYDROSTATIC TRANSMISSION SUMP (LOW GROUND PRESSURE TRACK) [01H06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3158	3	Cap Screw	3/4" X 2"
2	T10510	3	Washer	(USE IF AVAILABLE)
2	R78019	3	Washer	(SUB FOR T10510)
3	AT70568	1	HANDRAIL	-
5	U13639	1	O-Ring	-
6	T58044	2	ISOLATOR	-
7	U10289	2	O-Ring	(SUB FOR T72890)
8	U13425	1	WINDOWPANE	-
9	U13551	1	WASHER	-
10	19H2472	4	Cap Screw	HS, SAE 8, 1/2" X 1"
11	21H1300	4	SCREW	0.190" X 3/8"
12	R27094	1	Drain Plug	-
13	R26286	1	O-Ring	-
14	-	1	Part 16	(SUB AT64359)
15	T63640	1	LOCK	-
16	AT55843	1	HANDLE	-
17	AT55844	1	LOCK	-
18	AT64359	1	COVER	-
19	AT195302	1	Key	(SUB FOR AR51481 AND AT145929)
20	H85233	4	Rivet	-
21	R27175	1	Drain Plug	-
22	U12547	1	O-Ring	(SUB FOR F3171R)
23	-	1	Part 25	(SUB T43514)
24	T36092	1	COVER	-
25	12H304	18	Lock Washer	3/8"
26	19H1648	18	Cap Screw	3/8" X 3/4"
27	AT80578	1	RESERVOIR	(SUB FOR AT70578)
28	19H2735	3	Cap Screw	1/2" X 2"
29	T21242	3	Washer	-
30	T11234	4	Lock Nut	-
31	AT58543	2	HINGE	-
32	24M7296	4	Washer	10.500 X 30 X 2.500 MM
33	03H1500	4	Bolt	3/8" X 1"
34	12H301	4	Lock Washer	1/2"
4A	-	1	Part 5	(SUB FOR AT62571) (FURNISH COMPONENTS)
4B	T54099	1	Fitting	-

HYDROSTATIC TRANSMISSION SUMP (LOW GROUND PRESSURE TRACK) [01H06]
