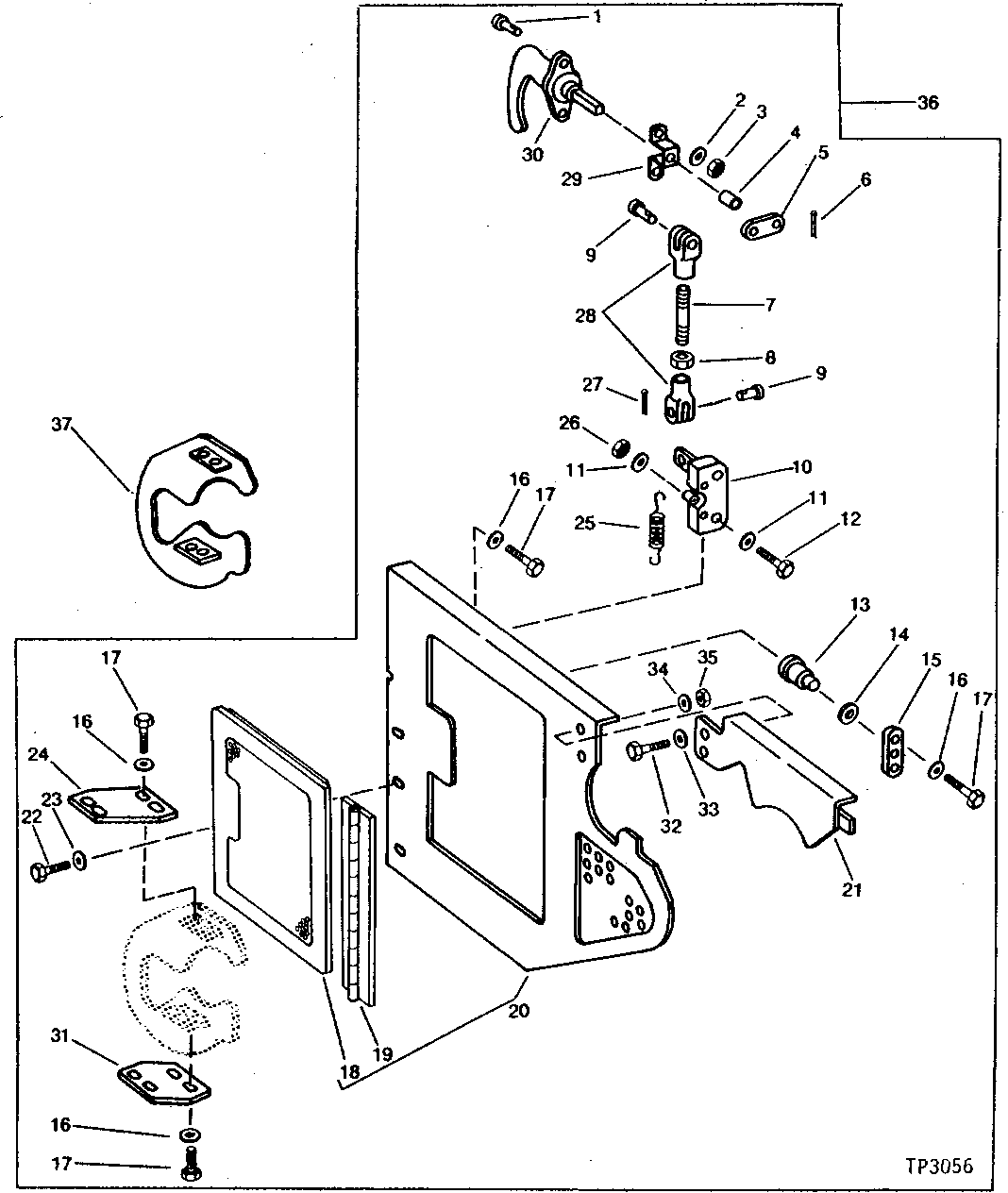

HEAVY DUTY ENGINE SIDE SHIELDS [03G02]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1196	4	Screw	NO. 10 X 1"
2	24H1283	4	Washer	7/32" X 1/2" X 0.049"
3	14H778	4	Nut	0.190"
4	28H1518	1	Washer	3/8"
5	T64988	2	STRAP	-
6	11M7059	2	Cotter Pin	3.200 X 20 MM
7	T64987	2	ROD	-
8	14H631	4	Nut	0.190"
9	L985T	4	Pin Fastener	-
10	AT61657	1	LATCH	R.H. (ILLUSTRATED)
10	AT59611	1	LATCH	L.H.
11	12H302	8	Lock Washer	1/4"
12	19H1791	8	Cap Screw	1/4" X 1-1/4"
13	AT59896	2	STRIKER	-
14	24H1259	4	Washer	7/16" X 1-1/2" X 0.065"
15	T64981	2	PLATE	-
16	24H1682	24	Washer	13/32" X 7/8" X 0.120"
16	24H1682	22	Washer	13/32" X 7/8" X 0.120"
17	19H2284	24	Cap Screw	3/8" X 7/8"
17	19H2284	22	Cap Screw	3/8" X 7/8"
18	-	1	Part 21	(SUB AT61649)
18	-	1	Part 22	(SUB AT67657 OR AT70270)
19	-	1	Part 23	(SUB AT61649)
19	-	1	Part 24	(SUB AT67657 OR AT70270)
20	AT61649	1	SHIELD	R.H. (ILLUSTRATED)
20	AT70270	1	SHIELD	R.H. (ILLUSTRATED) (SUB FOR AT67657)
20	AT61652	1	SHIELD	L.H.
20	AT70271	1	SHIELD	L.H. (SUB FOR AT67658)
21	AT78353	1	EXTENSION	R.H. (ILLUSTRATED) (SUB FOR AT61653 AND AT67659)
21	AT78352	1	EXTENSION	L.H. (SUB FOR AT67660)
21	AT61654	1	EXTENSION	L.H.
22	19H2472	6	Cap Screw	HS, SAE 8, 1/2" X 1"
23	24H1625	6	Washer	17/32" X 1" X 0.120"
24	T64986	2	PLATE	(WITHOUT LOW GROUND PRESSURE TRACK)
25	M2036T	2	Extension Spring	-
26	14H786	8	Nut	1/4"
27	11M7077	4	Cotter Pin	1.600 X 25 MM
28	L987T	4	YOKE	-
29	T65793	2	SUPPORT	(SUB FOR T64989)
30	AT61658	2	HANDLE	-
31	T64985	2	PLATE	(WITHOUT HYDRAULIC TILT AND LOW GROUND PRESSURE TRACK)
31	T75516	2	PLATE	(SUB FOR T64985, THIS APPLICATION) (WITH HYDRAULIC TILT)
32	19H2676	4	Cap Screw	3/8" X 1"
32	19H2284	4	Cap Screw	3/8" X 7/8"
33	24H1682	4	Washer	13/32" X 7/8" X 0.120"
34	24H1682	8	Washer	13/32" X 7/8" X 0.120"
35	14H812	4	NUT	3/8"
36	-	1	Part 48	(AT75771, AT75773 AND AT75774 NO LONGER (SUB FOR AT66487)
37	AT61655	1	COVER	R.H. (ILLUSTRATED) (HYDRAULIC TILT DOZER) (SUB AT73488)
37	AT67661	1	EXTENSION	R.H. (ILLUSTRATED) (HYDRAULIC TILT DOZER) (SUB AT73488)
37	AT73488	1	COVER	R.H. (ILLUSTRATED) (HYDRAULIC TILT DOZER) (WITHOUT LOW GROUND PRESSURE TRACK)
37	AT61656	1	COVER	L.H. (HYDRAULIC TILT DOZER) (SUB AT73489)
37	AT67662	1	COVER	L.H. (HYDRAULIC TILT DOZER) (SUB AT73489)
37	AT73489	1	COVER	L.H. (HYDRAULIC TILT DOZER) (WITHOUT LOW GROUND PRESSURE TRACK)
37	AT67664	1	COVER	R.H. (INSIDE DOZER, AND HYDRAULIC AND MECHANICAL TILT ANGLE DOZERS)
37	AT67665	1	COVER	L.H. (INSIDE DOZER, AND HYDRAULIC AND MECHANICAL TILT ANGLE DOZERS)
