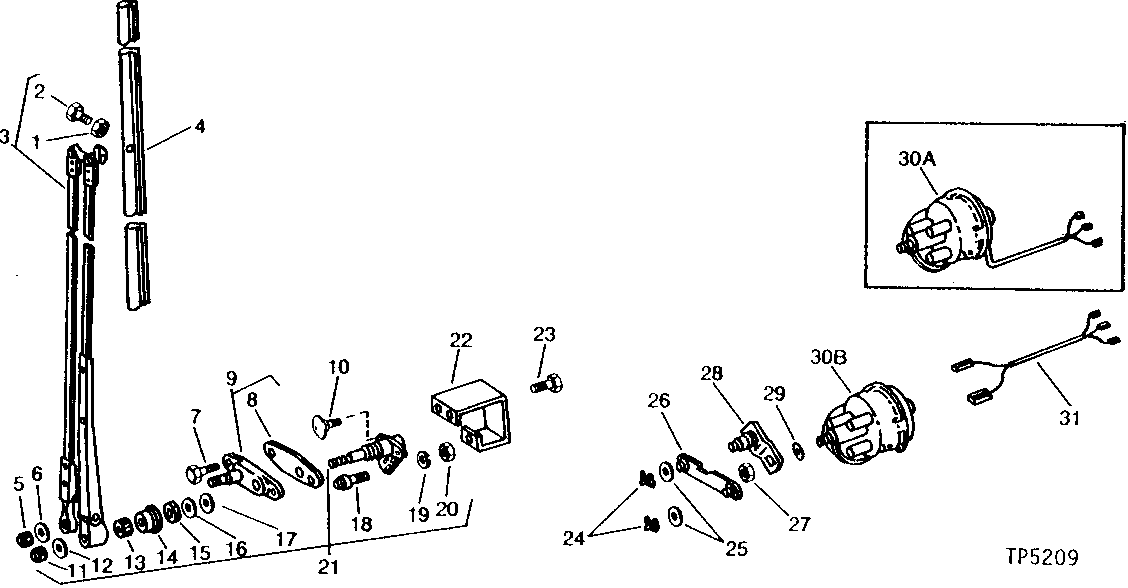

FRONT WINDSHIELD WIPER AND MOTOR (WITHOUT CAB) [03C12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T35440	1	Lock Nut	-
2	T35441	1	Screw	-
3	AU42025	1	WIPER ARM	WITH HARDWARE
4	TY16302	1	WIPER BLADE	(SUB FOR AT35244 OR AT115598 OR AT130075) (ALSO ORDER TY16312)
5	-	1	Part 5	(A) ACORN, (SUB RE36215)
6	-	1	Part 6	(A) (SUB RE36215)
7	19H1948	2	Cap Screw	1/4" X 3/4"
8	-	1	Part 8	(A) ( U46517 NO LONGER AVAILABLE)
9	RE36215	1	Plate	PLATE ASSEMBLY (INCLUDES ALL PARTS IDENTIFIED BY (A) (SUB FOR AU42023)
10	AU43854	3	SCREW WITH WASHER	AND LOCK WASHER
11	-	1	Part 11	( U46514 NO LONGER AVAILABLE)
12	12H291	1	Lock Washer	5/16"
13	-	1	Part 13	( U46513 NO LONGER AVAILABLE)
14	-	1	Part 14	RAIN SHIELD ( U46512 NO LONGER AVAILABLE)
15	-	1	Part 15	( U46511 NO LONGER AVAILABLE)
16	24H1362	1	Washer	41/64" X 1" X 0.075", (SUB FOR U46510)
17	-	1	Part 17	( U46509 NO LONGER AVAILABLE)
18	U46507	1	PIN	-
19	12H297	1	Lock Washer	1/4"
20	14H649	1	Nut	1/4"
21	AT59147	1	CONTROL VALVE	(SUB FOR AT29857) AND PIVOT ASSEMBLY
22	-	1	Part 22	( AT56384 USE IF AVAILABLE)
23	21H1127	2	SCREW	0.190" X 7/16", (SUB FOR AU43855) (ALSO ORDER 12H295)
23	12H295	2	Lock Washer	0.190"
24	U46506	2	Clip	-
25	T32255	2	Shim	-
26	AU43853	1	Link	-
27	AU43857	1	LOCK NUT	AND LOCK WASHER
28	AU43954	1	ARM	-
29	U46508	1	WASHER	BOWED
31	AT167714	1	WIRING HARNESS	(SUB FOR AT66482, THIS APPLICATION)
32	TY16312	1	KIT	NOT ILLUSTRATED
..	-	1	Part 36	(WITHOUT CAB) ( AT56375 NO LONGER AVAILABLE)
30A	AT38992	1	MOTOR	(SUB AT115599 AND AT167714)
30A	RE13281	1	GEAR	(SUB FOR AR75606)
30B	AT115599	1	ELECTRIC MOTOR	(SUB FOR AT67132, THIS APPLICATION)

FRONT WINDSHIELD WIPER AND MOTOR (WITHOUT CAB) [03C12]
