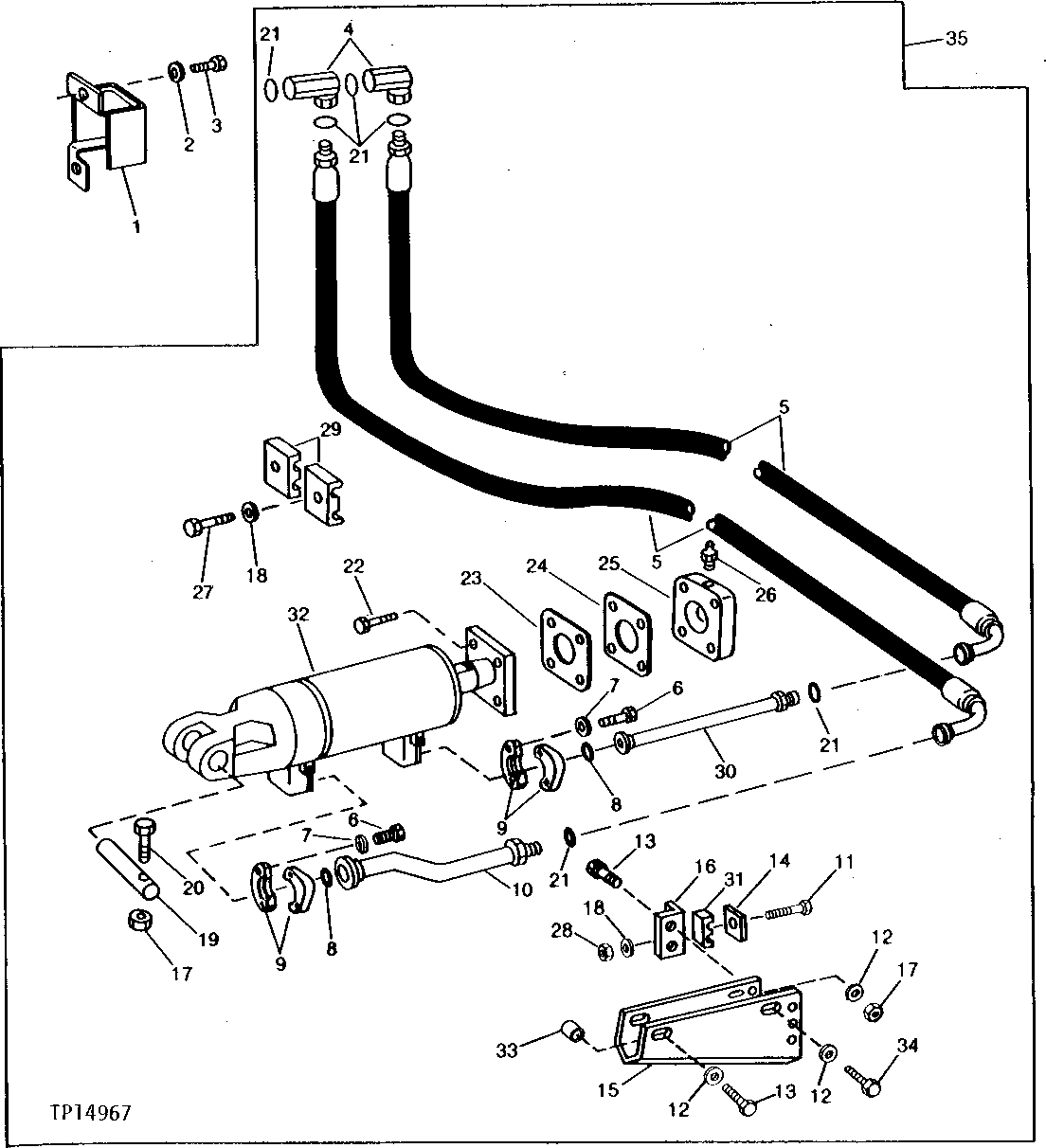

DOZER BLADE TILT CYLINDER, GUARDS AND HOSES (USED WITH ORFS BLADE CONVERSION) [04F17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T152313	1	GUARD	(SUB FOR AT66990 AND AT120553)
2	24H1226	2	Washer	1/2" X 1-1/4" X 0.083"
3	19H3483	2	Cap Screw	HS, SAE 8, 3/8" X 1-1/8"
4	AT83066	2	ADAPTER FITTING	90°
5	AT168173	2	HYDRAULIC HOSE - FABRICATE	13/16" X 2 388 MM (94") X 13/16", (SUB FOR AT80639 AND AT165593)
6	19H3239	8	Cap Screw	3/8" X 1-1/4"
7	12H304	8	Lock Washer	3/8"
8	T72888	3	O-Ring	-
9	R29424	4	Flange Fitting	-
10	AT80640	1	OIL LINE	-
11	19H3031	1	Cap Screw	3/8" X 2-1/2"
12	24H1748	6	Washer	1/2" X 1-1/4" X 0.105"
13	19H2898	4	Cap Screw	HS, SAE 8, 1/2" X 1"
14	AT83066	1	ADAPTER FITTING	-
15	T80307	1	GUARD	-
16	T64714	1	ANGLE	-
17	BP12214	3	Lock Nut	-
18	24H1304	3	WASHER	13/32" X 23/32" X 0.120"
19	T78844	1	PIN FASTENER	-
20	19H3586	1	Cap Screw	HS, SAE 8, 1/2" X 4-1/4"
21	T77857	7	O-Ring	-
22	19H3105	4	Cap Screw	HS, SAE 8, 3/4" X 5"
23	T154413	1	SHIM	(SUB FOR T49093) 1.52 MM (.060")
24	T154414	1	SHIM	(SUB FOR T49094) 0.91 MM (.036")
25	T154432	1	SOCKET	(SUB FOR T49092)
26	T162396	1	Lubrication Fitting	(SUB FOR JD7798)
27	19H3065	2	Cap Screw	3/8" X 2"
28	14H1076	1	Nut	3/8"
29	T74288	2	HALF CLAMP	(SUB FOR T74288, THIS APPLICATION)
29	28H1697	2	Spacer	0.493" X 0.675" X 3/4", (TO HOLD HOSES TO BACK OF BLADE)
30	AT80641	1	ADAPTER FITTING	-
31	T52978	1	Clamp	-
32	RE17344	1	HYDRAULIC CYLINDER	-
33	T54800	2	BUSHING	-
34	19H2472	2	Cap Screw	1/2" X 1"
35	AT80672	1	KIT	(NO LONGER AVAILABLE)
