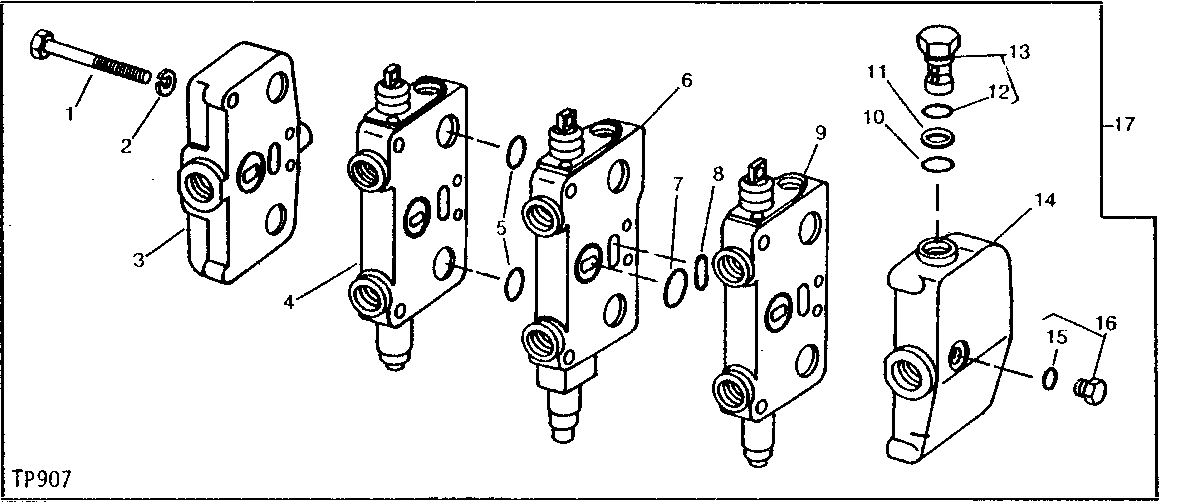

CONTROL VALVE ASSEMBLY (TWO AND THREE SPOOL) [04F19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T31049	4	CAP SCREW	(THREE SPOOL)
1	T31046	4	BOLT	(TWO SPOOL)
2	12H293	4	Lock Washer	7/16"
3	T48102	1	END PLATE	LEFT
4	AT61499	1	VALVE	AUXILIARY SECTION (CANNOT BE USED ON 1.6M (64") GAUGE TRACK)
4	AT73467	1	VALVE	AUXILIARY SECTION (CANNOT BE USED ON 1.6M (64") GAUGE TRACK AND LOW GROUND PRESSURE)
5	T31029	8	O-Ring	(K1) (K3) (K4) (K5)
6	AT60427	1	CONTROL VALVE	LIFT SECTION
6	AT73464	1	SPOOL VALVE	LIFT SECTION
7	U44062	4	O-Ring	(K1) (K3) (K4) (K5)
8	T38652	4	O-RING	(K1) (K3) (K4) (K5)
9	AT73463	1	SPOOL VALVE	TILT SECTION
9	AT48557	1	VALVE	TILT SECTION
10	H21957	1	O-Ring	(K2) (K3) (K5)
11	T31039	1	BACK-UP RING	(K2) (K3) (K5)
12	P51079	1	O-Ring	(K2) (K3) (K5)
13	AT51691	1	PRESSURE RELIEF VALVE	-
14	T52435	1	PLATE	RIGHT
15	R28782	1	O-Ring	(K3) (SUB FOR E40798)
16	AH63282	1	FITTING PLUG	(SUB FOR AE24799)
17	AT46603	1	VALVE	(TWO SPOOL) (SUB AT73469 IF AVAILABLE)
17	-	1	Part 22	(TWO SPOOL) ( AT73469 USE IF AVAILABLE)
17	AT63908	1	VALVE	(THREE SPOOL) (CANNOT BE USED ON 1.6M (64") GAUGE TRACK) (SUB AT73468 IF AVAILABLE)
17	-	1	Part 24	(THREE SPOOL) (CANNOT BE USED ON 1.6M (64") GAUGE TRACK AND LOW GROUND PRESSURE) ( AT73468 USE IF AVAILABLE)

CONTROL VALVE ASSEMBLY (TWO AND THREE SPOOL) [04F19]
