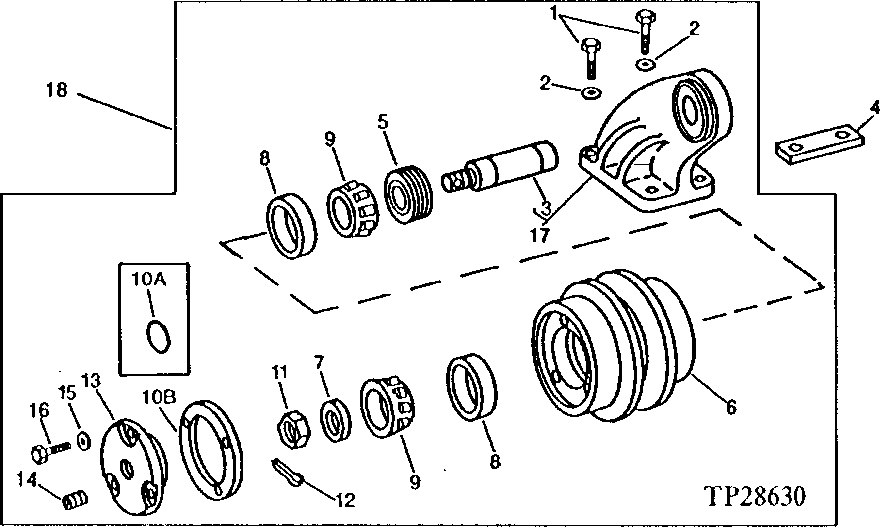

CARRIER ROLLER AND SUPPORT (EXCEPT WIDE TRACK AND LOW GROUND PRESSURE) [01B17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T81516	4	CAP SCREW	(FRONT CROSSBAR SUPPORT) (SUB FOR 19H2265, THIS APPLICATION)
1	T81517	4	CAP SCREW	(REAR TRACK FRAME BRACKET) (SUB FOR 19H2710, THIS APPLICATION)
1	19H2706	4	Cap Screw	HS, SAE 8, 5/8" X 2"
2	24M7241	4	Washer	17 X 34 X 4 MM, (SUB FOR T19584 AND T40728)
2	T497T	4	WASHER	-
3	T47804	2	SHAFT	-
4	T47809	2	STRAP	(SUB T78701)
4	T78701	2	STRAP	-
5	AT78946	1	SEAL KIT	(SUB FOR AT46402)
6	AT46403	1	ROLLER	UPPER
7	T47806	1	Washer	-
8	JD9106	2	Bearing Cup	-
9	JD9041	2	Bearing Cone	-
11	14H920	1	Nut	1"
12	11M7030	1	Cotter Pin	5 X 40 MM
13	T47807	1	COVER	(SUB T67038, 15H275 AND T67039)
13	T59372	1	COVER	(SUB T67038 AND T67039)
13	T62348	1	COVER	(SUB T67038 AND T67039)
13	T67038	1	COVER	-
14	15H275	1	Pipe Plug	1/4"
15	12H304	3	Lock Washer	3/8"
16	19H3483	3	Cap Screw	3/8" X 1-1/8"
17	AT46401	2	BASE	(MARKED T47803) (PLEASE ORDER PER MARKED NUMBER)
17	AT73999	2	SUPPORT	(MARKED T75894) (PLEASE ORDER PER MARKED NUMBER)
17	AT46405	2	BASE	(MARKED T47808) (PLEASE ORDER PER MARKED NUMBER)
17	AT73997	2	SUPPORT	(MARKED T75893) (PLEASE ORDER PER MARKED NUMBER)
18	AT46400	1	ROLLER	CARRIER ROLLER (R.H. FRONT AND L.H. REAR) (USE WITH SUPPORT MARKED T75894)
18	AT46404	1	ROLLER	CARRIER ROLLER (L.H. FRONT AND R.H. REAR) (USE WITH SUPPORT MARKED T75893)
10A	U10776	1	O-Ring	(SUB T67039, THIS APPLICATION)
10B	T67039	1	GASKET	ROLLER COVER

CARRIER ROLLER AND SUPPORT (EXCEPT WIDE TRACK AND LOW GROUND PRESSURE) [01B17]
