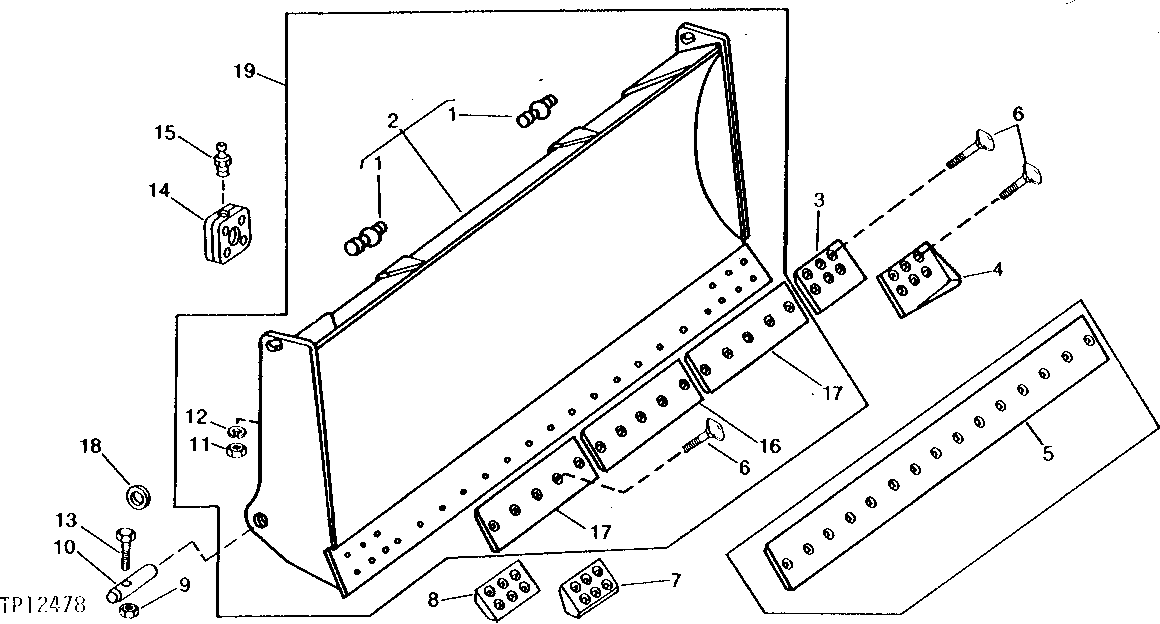

BLADE MODEL 6525 (HYDRAULIC TILT STRAIGHT DOZER) [04B07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T49148	2	Ball	CYLINDER MOUNTING
2	AT47707	1	BLADE	2 921 MM LONG (115") (SUB AT80843, (2) AT58076, T60679, (12) 19H3368, T58191 STRAIGHT END AND T58192 STRAIGHT END OR T59155 CUPPER END AND T59156 CUPPED END) (AT80843 NO LONGER AVAILABLE)
2	AT70380	1	DOZER BLADE	2 438 MM LONG (96") (USE WITH 1.6M (64") GAUGE TRACK)
2	AT81448	1	BLADE	3 048 MM LONG (120") (SUB FOR AT58074) (SUB AT80843) (SUB FOR AT78676) (AT80843 NO LONGER AVAILABLE)
3	T49156	1	END BIT	L.H., END
3	T58192	1	Dura-Max Cutting Edge	L.H., END
4	T49158	1	END BIT	CUPPED, L.H., END
4	T59156	1	Dura-Max Cutting Edge	CUPPED, L.H., END
5	T49153	1	DURA-MAX TM CUTTING EDGE	(SUB T79194 AND (2) T79280)
5	T60679	1	DURA-MAX TM CUTTING EDGE	(SUB T79198 AND (2) T79197)
5	T62577	1	CUTTING EDGE	(USE WITH 3 353 MM (132") LONG BLADE, (SUB T79196 AND (2) T79197)
5	T73281	1	DURA-MAX TM CUTTING EDGE	(USE WITH 2 438 MM (96") LONG BLADE)
6	T70286	16	Bolt	-
6	T70286	12	Bolt	(USE WITH 2 438 MM LONG (96") BLADE)
6	T70286	12	Bolt	(USE WITH END BITS)
6	T70286	18	Bolt	(USE WITH 3 353 MM LONG (132") BLADE)
6	T70286	15	Bolt	HS, SAE 8, 3/4" X 2-1/2"
7	T49157	1	END BIT	CUPPED, R.H., END
7	T59155	1	Dura-Max Cutting Edge	CUPPED, R.H., END
8	T49155	1	END BIT	R.H., END
8	T58191	1	Dura-Max Cutting Edge	R.H., END
9	BP12214	2	Lock Nut	1/2"
10	T78842	2	PIN FASTENER	(SUB FOR T49154)
11	14H1046	16	Nut	3/4"
11	14H1046	18	Nut	3/4", (USE WITH 3 353 MM (132") LONG BLADE
11	14H1046	12	Nut	(END BITS)
11	14H1046	12	Nut	(USE WITH AT70380)
11	14H1046	15	Nut	3/4"
12	12H236	15	Lock Washer	3/4"
12	12H236	16	Lock Washer	3/4"
12	12H236	18	Lock Washer	3/4", (USE WITH 3 353 MM (132") LONG BLADE
12	12H236	12	Lock Washer	3/4", (END BITS)
12	12H236	12	Lock Washer	(USE WITH 3 438 MM (96") LONG BLADE)
13	19H3136	2	Cap Screw	HS, SAE 8, 1/2" X 5-3/4"
14	T154432	1	SOCKET	(ALSO ORDER T162396) (SUB FOR T49095)
14	T154432	1	SOCKET	(SUB FOR T49092, THIS APPLICATION)
15	T162396	1	Lubrication Fitting	(SUB FOR JD7798) 1/8" STRAIGHT
16	T79196	1	DURA-MAX TM CUTTING EDGE	(USE WITH 3 353 MM LONG (132") BLADE)
16	T79198	1	Dura-Max Cutting Edge	(USE WITH 3 048 MM LONG (120") BLADE)
16	T79194	1	Dura-Max Cutting Edge	(USE WITH 2 921 MM LONG (115") BLADE)
17	T79197	2	Dura-Max Cutting Edge	(USE WITH BOTH 3 353 MM LONG (132") BLADE AND 3 048 MM LONG (120") BLADE)
17	T79280	2	DURA-MAX TM CUTTING EDGE	(USE WITH 2 921 MM LONG (115") BLADE)
18	T54087	1	WASHER	-
19	AT70380	1	DOZER BLADE	2 438 MM LONG (96") (USE WITH 1.6M (64") GAUGE TRACK)
19	AT81448	1	BLADE	3 048 MM LONG (120") (SUB FOR AT80843) (AT80843 NO LONGER AVAILABLE)

BLADE MODEL 6525 (HYDRAULIC TILT STRAIGHT DOZER) [04B07]
