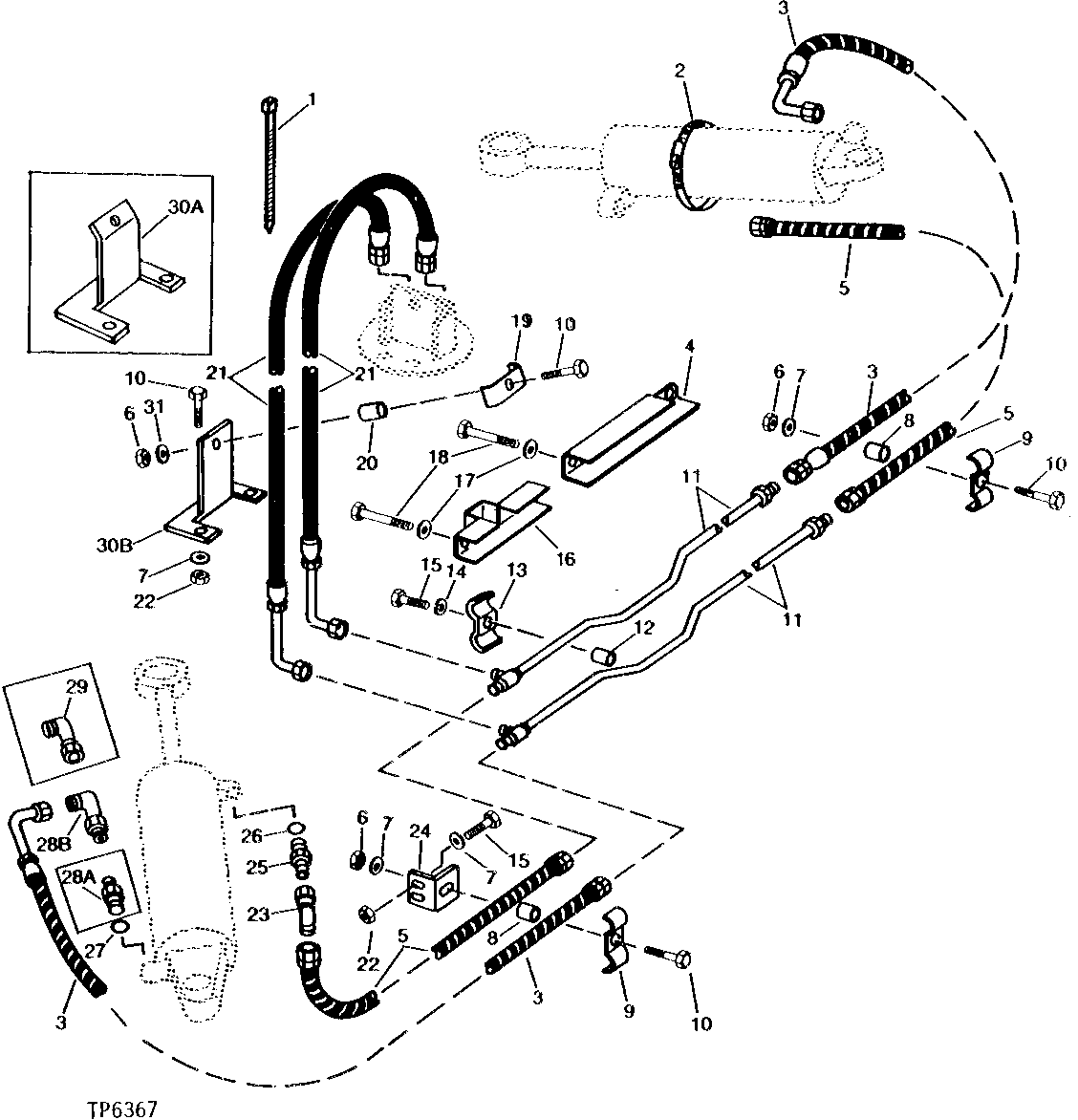

ANGLE CYLINDER HYDRAULICS AND TUBE GUARDS (INSIDE DOZER) [04E06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R76477	3	Tie Band	(SUB FOR T44946 AND A49232) (SUB FOR H77698, THIS APPLICATION)
2	AT66469	2	Clamp	-
3	AT65106	2	HYDRAULIC HOSE - FABRICATE	-
3	AT65107	2	HYDRAULIC HOSE - FABRICATE	-
4	T68920	1	CHANNEL	-
5	AT65107	2	HYDRAULIC HOSE - FABRICATE	661 MM LONG (3/4" X 7/8" X 26")
6	T11234	3	Lock Nut	-
7	24H1305	6	Washer	13/32" X 13/16" X 0.065"
8	N52528	2	Bushing	-
9	T40705	2	Clamp	-
10	19H3031	5	Cap Screw	3/8" X 2-1/2"
11	AT65103	2	TUBE	-
12	28H1519	2	Washer	3/8" X .375"
13	U40447	2	CLAMP	-
14	12H304	2	Lock Washer	3/8"
15	19H2633	4	Cap Screw	3/8" X 1-1/2"
16	AT66003	1	GUARD	-
17	24H1111	6	Washer	17/32" X 1-1/16" X 0.090"
18	19H3550	6	Cap Screw	1/2" X 4"
19	T27022	1	Clamp	-
20	R63684	1	Sleeve	-
21	AT65105	2	HYDRAULIC HOSE - FABRICATE	-
22	14H812	4	NUT	3/8"
23	AH19770	2	Elbow Fitting	45°
24	T49987	1	ANGLE	-
25	T48176	2	ADAPTER FITTING	-
26	R29936	2	O-Ring	-
27	U12547	2	O-Ring	-
29	AH75164	2	Elbow Fitting	90°
31	24H1219	1	Washer	7/16" X 1" X 0.083"
28A	T75307	2	Adapter Fitting	(SUB FOR R40122, THIS APPLICATION)
28B	AT32332	2	Elbow Fitting	90°
30A	AT66004	1	BRACKET	(SUB AT67991)
30B	AT67991	1	BRACKET	-
