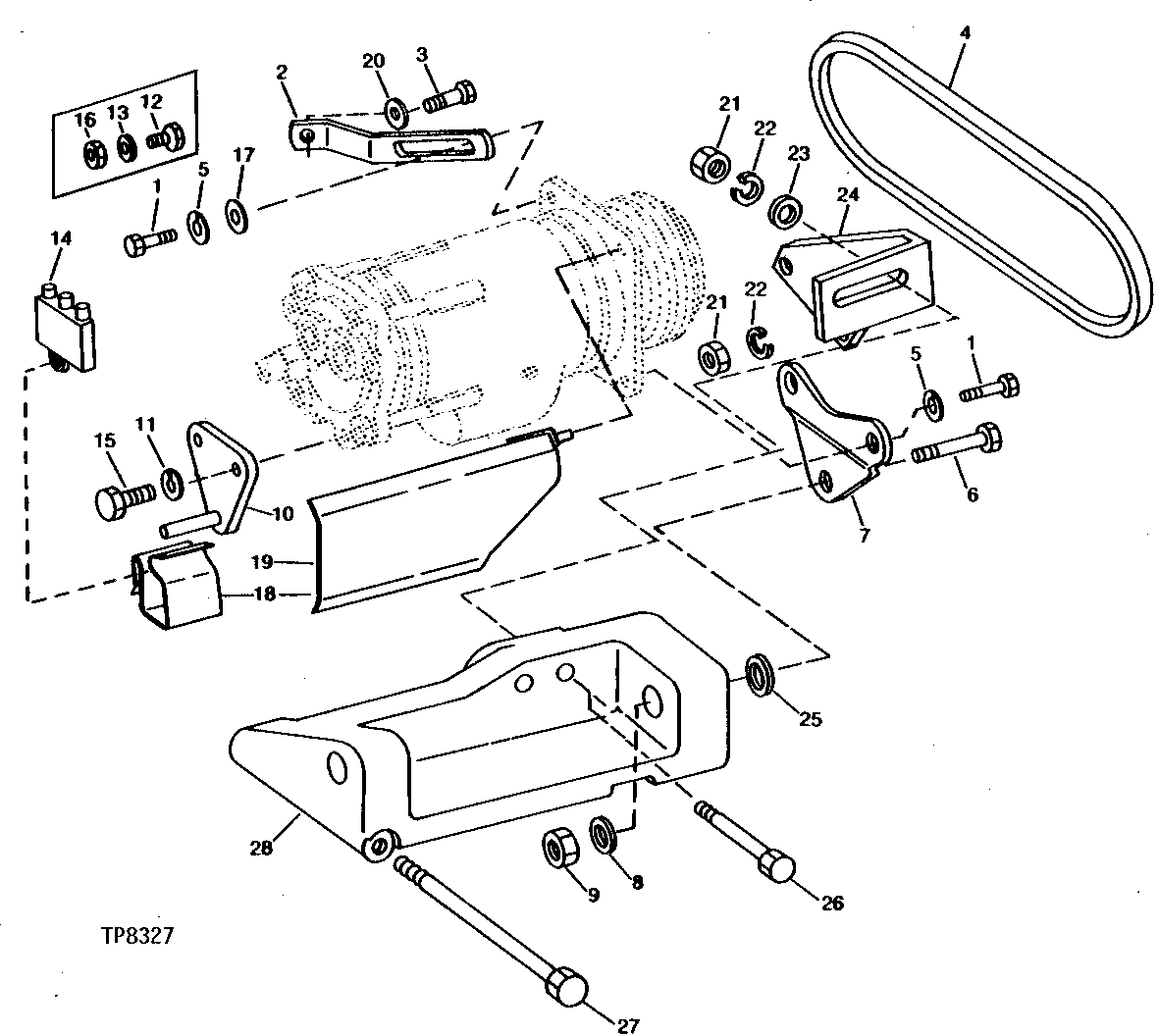

AIR CONDITIONING COMPRESSOR MOUNTING BRACKETS (SERIAL NO. 307632- ) [03F04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7139	3	Cap Screw	M8 X 20
1	19H2529	3	Cap Screw	5/16" X 1"
2	T69438	1	STRAP	-
3	19H1648	1	Cap Screw	3/8" X 3/4"
4	R69955	1	V-BELT	(SUB FOR T68321)
5	12H303	3	Lock Washer	5/16"
6	19H2735	1	Cap Screw	1/2" X 2"
7	R45981	1	BRACKET	FRONT
8	12H301	1	Lock Washer	1/2"
9	14H1040	1	Nut	1/2"
10	AR77342	1	PIN	REAR WITH PIN
11	12H304	2	Lock Washer	3/8"
12	21H1295	1	Screw	0.190" X 5/8"
13	12H295	1	Lock Washer	0.190"
14	AR77344	1	FUSE	-
15	19M7168	1	Cap Screw	M10 X 30, WITH HYDRAULIC TILT STRAIGHT DOZER)
15	19M7167	1	Cap Screw	M10 X 25, (WITH HYDRAULIC TILT STRAIGHT DOZER)
15	19H3239	1	Cap Screw	3/8" X 1-1/4", (WITH HYDRAULIC TILT STRAIGHT DOZER)
15	19H2676	1	Cap Screw	3/8" X 1", (WITH HYDRAULIC TILT STRAIGHT DOZER)
15	19H2676	2	Cap Screw	3/8" X 1", (WITHOUT HYDRAULIC TILT STRAIGHT DOZER)
15	19M7167	2	Cap Screw	M10 X 25, (WITHOUT HYDRAULIC TILT STRAIGHT DOZER)
16	14H631	1	Nut	0.190"
17	24H1136	1	Washer	11/32" X 11/16" X 0.065"
17	24M7036	1	Washer	9 X 16 X 1.600 MM
18	R67225	1	CLIP	-
19	AT68965	1	GUARD	(WITH HYDRAULIC TILT STRAIGHT DOZER)
20	R42729	1	Washer	-
21	14H812	4	NUT	3/8"
22	12H304	4	Lock Washer	3/8"
23	24H1305	2	Washer	13/32" X 13/16" X 0.065"
24	T53319	1	BRACKET	-
25	24H1162	1	Washer	17/32" X 1-1/4" X 0.060"
26	19H2633	2	Cap Screw	3/8" X 1-1/2"
27	19H3274	1	Cap Screw	3/8" X 7"
28	T53318	1	SUPPORT	-

AIR CONDITIONING COMPRESSOR MOUNTING BRACKETS (SERIAL NO. 307632- ) [03F04]
