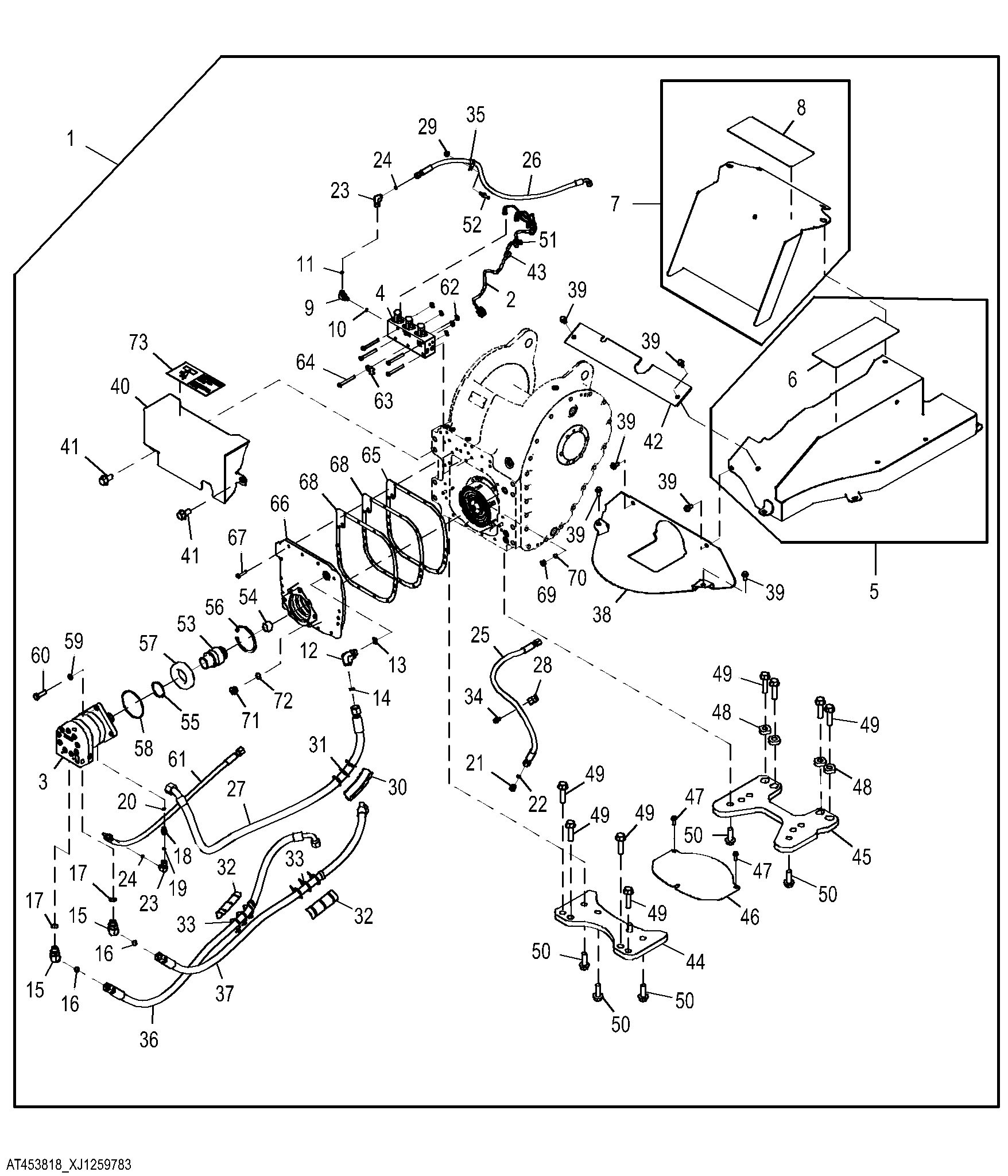

Mechanical to Hydraulic Winch Conversion Kit, 4000 Winch - Dual Function

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT453818	1	Winch Kit	Whole Goods
2	AT438022	1	Wiring Harness	Winch Harness
3	AT471766	1	Hydraulic Motor	-
4	AT408334	1	Control Valve	-
4	KV26542	1	Seal Kit	USE WITH AT431990
4	AT431990	3	Solenoid Valve	-
4	T204128	6	Screw	-
5	AT437478	1	Guard	Fuel Tank
6	H21259	1	Mat	-
7	AT437488	1	Guard	Slip Protection
8	H21259	1	Mat	-
9	38H1004	1	Elbow Fitting	-
10	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
11	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
12	38H1007	1	Elbow Fitting	-
13	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
14	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
15	38H1048	2	Elbow Fitting	-
16	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
17	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
18	38H1160	1	Adapter Fitting	-
19	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
20	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
21	38H1147	1	Fitting Plug	-
22	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
23	38H1094	2	Elbow Fitting	-
24	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
25	AT444471	1	Hydraulic Hose	Drain
26	AT413444	1	Hydraulic Hose	-
27	AT413447	1	Hydraulic Hose	-
28	T24959	1	Clamp	-
29	14M7296	1	Flange Nut	M10
30	AT313439	1	Hose Guard	-
31	R44302	3	Tie Band	-
32	AT313439	2	Hose Guard	-
33	R44302	3	Tie Band	-
34	19M7784	1	Screw	M10 X 20
35	T76719	1	Clamp	-
36	AT410397	1	Hydraulic Hose	-
37	AT410397	1	Hydraulic Hose	-
38	AT444496	1	Guard	-
39	19M7788	6	Screw	M12 X 25
40	AT477782	1	Guard	-
41	19M8709	2	Screw	M20 X 40
42	T329275	1	Plate	-
43	R70350	1	Grommet	-
44	T394253	1	Plate	-
45	T394255	1	Plate	-
46	T348596	1	Plate	-
47	19M7786	2	Screw	M10 X 30
48	T298203	4	Spacer	-
49	19M7831	8	Screw	M20 X 80
50	19M7851	6	Screw	M20 X 60
51	H224073	1	Tie Band	-
52	T161803	1	Stud	-
53	T304442	1	Shaft	-
54	JD8865	1	Needle Bearing	-
55	R26246	1	Snap Ring	-
56	40M7110	1	Snap Ring	-
57	AT139681	1	Ball Bearing	-
58	F37030250	1	O-Ring	-
59	24M7298	3	Washer	8.400 X 25 X 2 mm
60	19M7397	3	Cap Screw	M16 X 50
61	AT430323	1	Hydraulic Hose	Motor Drain
62	U46731	5	O-Ring	18.720 X 2.616 mm (0.737" X 0.103")
63	N380408	1	Clamp	-
64	19M8183	5	Cap Screw	M10 X 90
65	T84826	1	Gasket	-
66	AT473766	1	Housing	-
67	19M7572	13	Cap Screw	M10 X 45
68	T84826	2	Gasket	-
69	64H1018	1	Drain Plug	-
70	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
71	64H1020	1	Drain Plug	-
72	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
73	T361108	1	Safety Sign	Winch Hoist Warning

Mechanical to Hydraulic Winch Conversion Kit, 4000 Winch - Dual Function
