Engine Harness and Connectors

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT481117	1	Wiring Harness	Engine Wiring Harness
2	57M7796	1	Elec. Connector Housing	B38 Engine Oil Pressure Sensor
2	57M10925	3	Elec. Connector Terminal	-
3	57M7850	1	Elec. Connector Housing	B41 Coolant Temperature Sensor
3	57M7829	2	Elec. Connector Terminal	-
4	57M7850	1	Elec. Connector Housing	B35 Crankshaft Position Sensor
4	57M7829	2	Elec. Connector Terminal	-
5	57M8403	1	Elec. Connector Housing	Y38 High Pressure Fuel Solenoid
5	57M8406	2	Elec. Connector Terminal	-
5	57M8404	2	Elec. Connector Terminal	-
6	57M8400	1	Electrical Connector Assy	B42 Fuel Temperature Sensor
6	57M8402	2	Elec. Connector Terminal	-
6	57M8568	1	Elec. Connector Seal	-
6	57M7833	1	Elec. Connector Seal	-
7	57M7850	1	Elec. Connector Housing	B36 Camshaft Position Sensor
7	57M7829	2	Elec. Connector Terminal	-
8	57M9572	2	Elec. Connector Terminal	-
8	57M7850	1	Elec. Connector Housing	B43 Turbocharger Compressor Inlet Temperature Sensor
9	57M7796	1	Elec. Connector Housing	B37 Fuel Pressure Sensor
9	57M9006	3	Elec. Connector Terminal	-
10	57M11483	1	Elec. Connector Housing	R3 Alternator Excitation Resistor
10	57M10690	1	Elec. Connector Terminal	-
10	57M10687	1	Elec. Connector Terminal	-
11	57M13604	1	Elec. Connector Housing	B34 Fuel Rail Pressure Sensor
11	57M8135	3	Elec. Connector Terminal	-
11	57M8568	3	Elec. Connector Seal	-
12	57M8417	1	Elec.Connect Locking Device	-
13	AT387346	1	Resistor	-
14	57M11182	1	Elec. Connector Terminal	X586 Glow Plug Relay Ground
15	57M11182	1	Elec. Connector Terminal	X585 Glow Plug Relay Signal
16	57M9218	2	Elec. Connector Seal	-
16	57M8161	1	Elec. Connector Housing	M9 Fuel Transfer Pump
16	57M7297	2	Elec. Connector Terminal	-
17	57M8162	1	Electrical Connector Assy	-
18	57M7254	1	Elec. Connector Housing	B40 Water in Fuel Sensor
18	57M9920	2	Elec. Connector Terminal	-
18	57M9883	1	Elec. Connector Cable Seal	-
18	57M7258	1	Elec. Connector Seal	-
19	57M9712	1	Elec. Connector Accessory	-
20	57M7850	1	Elec. Connector Housing	B32 Intake Air Temperature Sensor
20	57M9572	2	Elec. Connector Terminal	-
21	57M8963	1	Elec. Connector Housing	X10 Fuel Injector Harness Connector
21	R78065	8	Elec. Connector Terminal	-
21	R78069	4	Elec. Connector Cavity Plug	-
22	HXE33857	1	Boot	-
22	57M9945	1	Elec. Connector Terminal	X301 Alternator Positive
22	57M11064	1	Elec. Connector Accessory	ORDER HXE33857
23	57M9944	1	Elec. Connector Terminal	X302 Alternator Negative
24	57M9951	1	Elec. Connector Terminal	-
25	57M12789	1	Elec. Connector Terminal	X1101_2 Starter Alternator Positive
26	57M11060	1	Elec. Connector Terminal	-
27	57M11060	1	Elec. Connector Terminal	-
28	R78065	2	Elec. Connector Terminal	-
28	57M9726	1	Elec. Connector Housing	Y88 Air Conditioner Compressor Clutch Solenoid
29	57M9452	1	Elec. Connector Housing	X185 Starter Relay Signal
30	57M9452	1	Elec. Connector Housing	X186 Starter Relay Ground
31	57M8872	1	Elec. Connector Terminal	X187 Starter Relay Switched Power, ORDER 57M9953
31	57M9953	1	Elec. Connector Terminal	X187 Starter Relay Switched Power
32	57M8872	1	Elec. Connector Terminal	X130 Starter Relay Switched Power, ORDER 57M9953
32	57M9953	1	Elec. Connector Terminal	X130 Starter Relay Switched Power
33	57M10331	2	Elec. Connector Terminal	-
33	57M10617	4	Elec. Connector Housing	-
33	57M10330	11	Elec. Connector Terminal	-
33	57M10333	13	Elec. Connector Cavity Plug	-
33	57M10606	1	Elec. Connector Housing	X2003 Ft4 Engine Control Unit - J3
34	57M10615	1	Elec. Connector Housing	X2002 Engine Control Unit (ECU) Connector 2
34	57M10330	7	Elec. Connector Terminal	-
34	57M10333	33	Elec. Connector Cavity Plug	-
34	57M10617	7	Elec. Connector Housing	-
34	57M10331	1	Elec. Connector Terminal	-
35	57M10609	1	Elec. Connector Housing	X2001 Engine Control Unit (ECU) Connector 1
35	57M10330	9	Elec. Connector Terminal	-
35	57M10333	15	Elec. Connector Cavity Plug	-
35	57M10617	4	Elec. Connector Housing	-
36	57M9792	1	Elec. Connector Housing	X5062A Alternator Cable to Arch Inline
36	R78065	2	Elec. Connector Terminal	-
36	57M9814	6	Elec. Connector Cavity Plug	-
37	57M10604	1	Elec. Connector Housing	-
38	57M10613	1	Elec. Connector Housing	-
39	57M10604	1	Elec. Connector Housing	-
40	57M10093	1	Elec. Connector Accessory	-
41	57M10679	1	Elec. Connector Accessory	-
42	57M10295	2	Elec. Connector Accessory	-
43	57M9837	1	Elec. Connector Accessory	-
44	57M10188	1	Elec. Connector Accessory	-
45	T268460	1	Electrical Connector Assy	V1 Starter Relay Diode
45	57M10687	1	Elec. Connector Terminal	-
45	57M10690	1	Elec. Connector Terminal	-
46	T268460	1	Electrical Connector Assy	V88 Air Conditioner Compressor Clutch Diode
46	57M10687	1	Elec. Connector Terminal	-
46	57M10690	1	Elec. Connector Terminal	-
47	AT103399	2	Diode	-
48	57M9218	2	Elec. Connector Seal	-
48	57M7309	1	Elec. Connector Housing	R7 Fuel Filter Heater
48	57M7297	2	Elec. Connector Terminal	-
49	57M10291	1	Elec. Connector Accessory	-
50	57M10286	1	Elec. Connector Accessory	-
51	57M10680	1	Elec. Connector Accessory	-
52	57M10095	3	Elec. Connector Accessory	-
53	57M10091	1	Elec. Connector Accessory	-
54	57M10287	1	Elec. Connector Accessory	-
55	57M10197	1	Elec. Connector Accessory	-
56	57M10104	1	Elec. Connector Accessory	-
57	57M10186	1	Elec. Connector Accessory	-
58	57M9842	1	Elec. Connector Accessory	-
59	57M9405	1	Elec. Connector Accessory	-
60	57M10746	1	Elec. Connector Accessory	-
61	57M10192	1	Elec. Connector Accessory	-
62	R78069	6	Elec. Connector Cavity Plug	-
62	R78066	5	Elec. Connector Terminal	-
62	57M7541	4	Elec. Connector Terminal	-
62	57M11135	4	Elec. Connector Terminal	-
62	57M9511	1	Elec. Connector Housing	X5061 Alternator Cable To Engine Frame Inline
63	57M8035	1	Nut	-
64	57M9061	1	Elec.Connect Locking Device	-
65	57M9383	1	Elec. Connector Accessory	-
66	57M10092	1	Elec. Connector Accessory	-
67	57M10477	1	Elec. Connector Accessory	-
68	57M8009	1	Elec.Connect Locking Device	-
69	57M10290	2	Elec. Connector Accessory	-
70	57M9949	1	Elec. Connector Terminal	X303 Alternator
71	57M13466	1	Elec. Connector Terminal	X587 Glow Plug Relay Diagnostic
72	HXE33857	1	Boot	-
73	T132635	1	Boot	-
74	R44302	1	Tie Band	-
75	57M10187	1	Elec. Connector Accessory	-

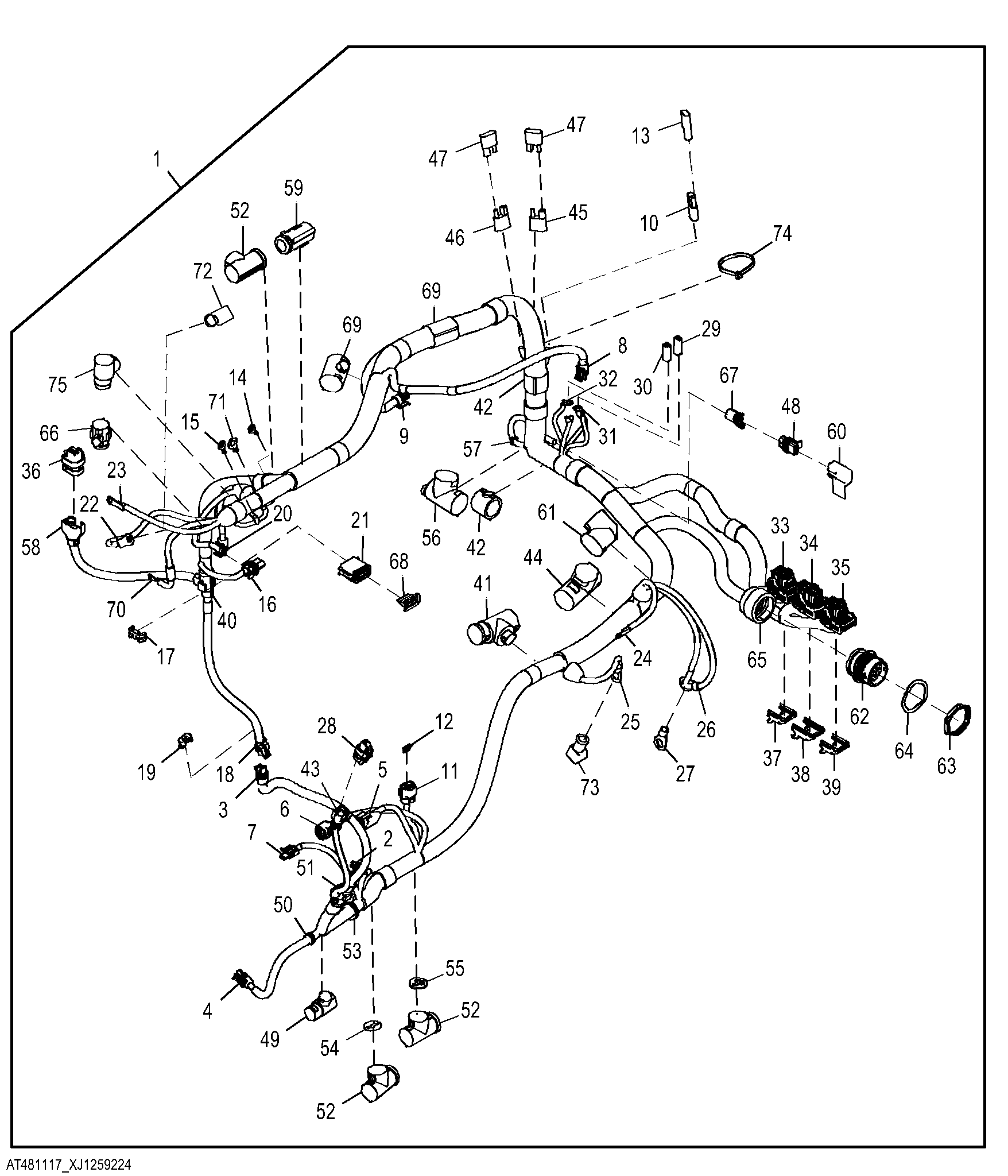

Engine Harness and Connectors
