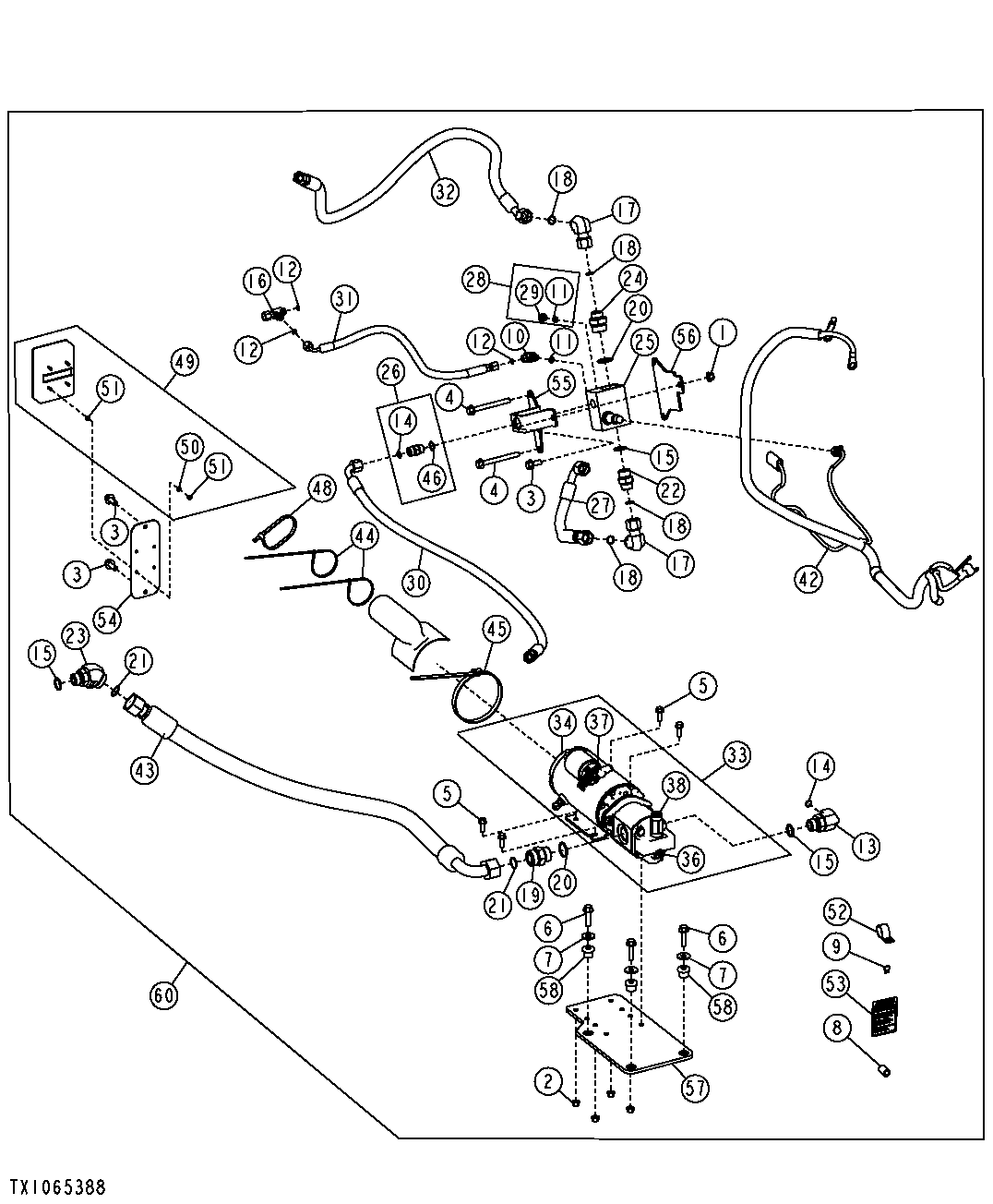

SECONDARY STEERING KIT (TORQUE CONVERTER) (FIELD)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7296	1	Flange Nut	M10
2	14M7524	4	Flange Nut	M8
3	19M7785	3	Screw	M10 X 25
4	19M7812	2	Screw	M10 X 100
5	19M7867	4	Screw	M8 X 25
6	19M8162	3	Screw	M10 X 40
7	24M7296	3	Washer	10.500 X 30 X 2.500 mm
8	28H3389	1	Spacer	0.423" X 0.675" X 1"
9	57M7689	1	Fuse	-
10	38H1095	1	Elbow Fitting	(SUB FOR 38H1003)
11	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
12	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
13	38H1013	1	Elbow Fitting	-
14	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
15	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
16	38H1029	1	Tee Fitting	-
17	38H1096	1	Elbow Fitting	-
18	T77932	3	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
19	38H1164	1	Adapter Fitting	-
20	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
21	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
22	38H1329	1	Adapter Fitting	-
23	38H1179	1	Adapter Fitting	(SUB FOR 38H1431)
24	38H1447	1	Adapter Fitting	-
25	AT117264	1	Switch	-
26	AT141527	1	Check Valve	(INCLUDES R26375 AND T77857)
26	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
26	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
27	AT183657	1	Hydraulic Hose	1" X 263 mm (10-1/2") X 1"
28	AT223648	1	Fitting	-
29	R51031	1	Fitting	-
30	AT317957	1	Hydraulic Hose	13/16" X 890 mm (35") X 13/16"
31	AT317958	1	Hydraulic Hose	9/16" X 689 mm (27-1/4") X 9/16"
32	AT317959	1	Hydraulic Hose	13/16" X 1172 mm (46-1/4") X 1"
33	AT344580	1	Pump	-
34	AT345320	1	Hydraulic Motor	-
34	AT345719	1	Seal Kit	-
36	AT345721	1	Pump	-
37	AT345722	1	Switch	-
38	AT345723	1	Pressure Relief Valve	-
38	AT170991	1	O-Ring Kit	-
42	AT345505	1	Wiring Harness	-
43	AT347144	1	Hydraulic Hose	36.5252" X 1270 mm (50") X 36.5252"
44	H77698	2	Tie Band	-
45	N189220	1	Tie Band	-
46	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
48	R76477	1	Tie Band	-
49	RE15428	1	Timer	-
50	12H379	4	Lock Washer	0.164"
51	14H1072	8	Nut	0.164"
52	T102934	1	Clamp	-
53	T146443	1	Safety Sign	-
54	T150265	1	Plate	-
55	T163583	1	Strap	-
56	T163655	1	Bracket	-
57	T235366	1	Plate	(SUB FOR T235366)
58	U42208	3	Isolator	-
60	AT346563	1	Field Installation Kit	Order Components, NLA
