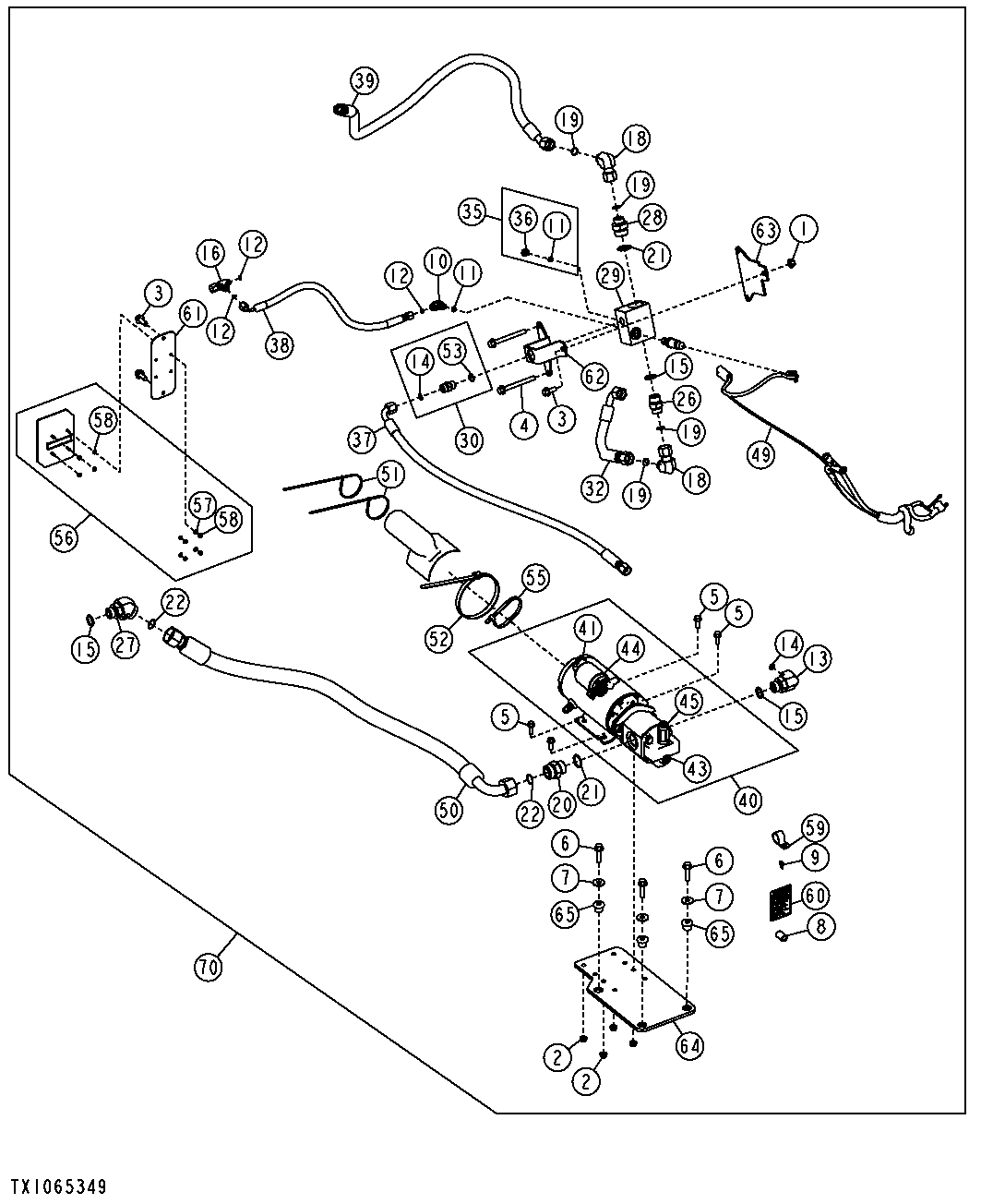

SECONDARY STEERING (DIRECT DRIVE) (FIELD)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7296	1	Flange Nut	M10
2	14M7524	4	Flange Nut	M8
3	19M7785	3	Screw	M10 X 25
4	19M7812	2	Screw	M10 X 100
5	19M7867	4	Screw	M8 X 25
6	19M8162	3	Screw	M10 X 40
7	24M7296	3	Washer	10.500 X 30 X 2.500 mm
8	28H3389	1	Spacer	0.423" X 0.675" X 1"
9	57M7689	1	Fuse	-
10	38H1095	1	Elbow Fitting	(SUB FOR 38H1003)
11	R28782	2	O-Ring	-
12	T77814	3	O-Ring	-
13	38H1013	1	Elbow Fitting	-
14	T77857	2	O-Ring	-
15	U12547	3	O-Ring	-
16	38H1029	1	Tee Fitting	-
18	38H1096	2	Elbow Fitting	-
19	T77932	4	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
20	38H1164	1	Adapter Fitting	-
21	R29936	2	O-Ring	-
22	T76938	2	O-Ring	-
26	38H1329	1	Adapter Fitting	-
27	38H1179	1	Adapter Fitting	(SUB FOR 38H1431)
28	38H1447	1	Adapter Fitting	-
29	AT117264	1	Switch	-
30	AT141527	1	Check Valve	(INCLUDES R26375 AND T77857)
30	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
30	T77857	1	O-Ring	-
32	AT183657	1	Hydraulic Hose	-
35	AT223648	1	Fitting	-
36	R51031	1	Fitting	-
37	AT317957	1	Hydraulic Hose	13/16" X 890 mm (35") X 13/16"
38	AT182993	1	Hydraulic Hose	-
39	AT195299	1	Hydraulic Hose	-
40	AT344580	1	Pump	-
41	AT345320	1	Hydraulic Motor	(ADDITIONAL COMPONENTS ON SEPARATE PAGES)
41	AT345719	1	Seal Kit	-
43	AT345721	1	Pump	(ADDITIONAL COMPONENTS ON SEPARATE PAGES)
44	AT345722	1	Switch	(ADDITIONAL COMPONENTS ON SEPARATE PAGES)
45	AT345723	1	Pressure Relief Valve	(ADDITIONAL COMPONENTS ON SEPARATE PAGES)
45	AT170991	1	O-Ring Kit	(ALSO ORDER U12547)
49	AT345509	1	Wiring Harness	-
50	AT347144	1	Hydraulic Hose	36.5252" X 1270 mm (50") X 36.5252"
51	H77698	2	Tie Band	-
52	N189220	1	Tie Band	SEE FUSE BOX
53	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
55	R76477	1	Tie Band	-
56	RE15428	1	Timer	-
57	12H379	4	Lock Washer	0.164"
58	14H1072	8	Nut	0.164"
59	T102934	1	Clamp	-
60	T146443	1	Safety Sign	-
61	T150265	1	Plate	-
62	T163583	1	Strap	-
63	T163655	1	Bracket	-
64	T244266	1	Plate	(SUB FOR T235366)
65	U42208	3	Isolator	-
70	AT346562	1	Field Installation Kit	Order Components Whole Goods, ALSO ORDER T236549; NLA
71	T236549	1	Guard	(FACTORY INSTALLED)
